What is a hybrid tunnel freezer?

A hybrid tunnel freezer combines different freezing technologies, such as impingement and fluidised bed, to optimise freezing efficiency and product quality for various items.

What are the benefits of a multi-tier belt system?

A multi-tier belt system maximises freezing capacity within a smaller footprint by stacking multiple conveyor belts, allowing for longer residence times or higher throughput.

What is a glazing system used for?

An attached glazing system applies a thin layer of ice to frozen products, protecting them from freezer burn, dehydration, and improving their appearance and shelf life.

What maintenance is typically required for a tunnel freezer?

Regular maintenance includes cleaning, belt tensioning and inspection, evaporator defrosting, refrigeration system checks, and lubrication of moving parts.

Can this type of freezer handle different product sizes?

Yes, tunnel freezers, particularly those with adjustable belt speeds and multi-tier systems, are generally versatile and can be configured to freeze a range of product sizes and types.

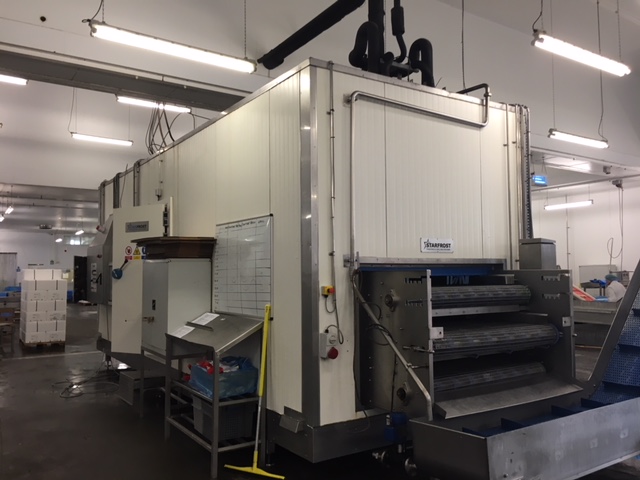

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems, photo 1

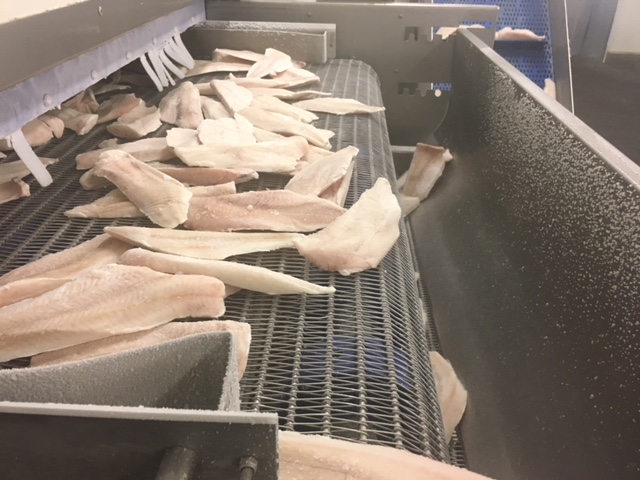

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems, photo 2

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems, photo 3

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems, photo 4

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems, photo 5

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems, photo 6

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems, photo 7

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems, photo 8

Used Starfrost Tunnel Freezer - IQF (Individual Quick Freezing) Systems

used Equipment

Recently Sold

Verified seller

Starfrost Tunnel Freezer

Name: Starfrost Tunnel Freezer
Brand: Starfrost
SKU: starfrost-tunnel-freezer-sold-7ee53803
Availability: SoldOut

Price: Contact seller for price

Tunnel Freezer Make: Starfrost 3 tier system Model: 86.8 – 3 x 1x 8.75 Hybrid Tunnel Tripple belt system/3 tier With attached glazing system Approx 350-500kg per hr on freezing fish fillets Upto 1000kg on Glazing Frozen fillets 9m long, 1000mm belt width Stainless steel Evaporator Video Available Very Good/Excellent condition

North East Lincolnshire, United Kingdom

5,929 km away

Model Number

86.8 – 3 x 1x 8.75 Hybrid Tunnel Tripple belt system/3 tier

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Freezing of individual quick frozen (IQF) fish fillets, poultry pieces, and seafood.
Processing of fruits and vegetables, maintaining individual piece integrity.
Freezing of bakery products and pasta.
Glazing of frozen products to prevent dehydration and improve presentation.

Typical capacity: For this class of hybrid tunnel freezer, capacities commonly range from 300 kg/hr to over 1000 kg/hr, depending on product type and freezing requirements.
Footprint: Tunnel freezers typically require a significant linear footprint, with lengths commonly ranging from 8 to 20 metres for industrial units.
Belt width: Belt widths for industrial tunnel freezers are commonly 800mm to 1200mm, influencing throughput and product size.
Power supply: Units of this type typically require a 3-phase industrial power supply, commonly 400V, 50Hz, with significant power draw for refrigeration compressors and motors.
Refrigerant: Modern industrial freezers commonly utilise refrigerants such as ammonia (NH3) or CO2, though some older units may use HFCs.
Construction materials: Components in contact with food are typically stainless steel (e.g., evaporator, belts), with insulated panels for the tunnel structure.

A hybrid tunnel freezer combines different freezing technologies, such as impingement and fluidised bed, to optimise freezing efficiency and product quality for various items.

IQF systems are highly regarded in food processing for their ability to freeze individual products uniformly whilst maintaining quality and texture. Buyers typically value machines with reliable refrigeration components and consistent belt speed control. When purchasing used equipment, inspecting freezing chamber condition, verifying temperature consistency, and checking refrigerant integrity are essential. Industry users appreciate their efficiency in handling delicate items and relatively low maintenance demands compared to alternative freezing methods.
