What types of tote bins can this equipment handle?

This category of tippler is primarily designed for standard 200-litre tote bins, also known as Eurobins or meat bins. Buyers should confirm compatibility with their specific bin dimensions.

Is this tippler suitable for outdoor use?

While constructed from stainless steel, the electrical components and general design are typically for indoor, food-grade environments. Prolonged outdoor exposure may require additional weatherproofing.

What are the typical maintenance requirements for a tote bin tippler?

Maintenance usually involves regular inspection of chains, motor-gearbox, and electrical components, along with lubrication as per manufacturer guidelines. Cleaning is essential for food processing applications.

Can the discharge height be adjusted?

Upper and lower limit switches are commonly adjustable by trained personnel for fine-tuning discharge height on site. However, the overall maximum height is fixed by the unit's design.

What safety considerations are important for operating this equipment?

Adherence to PUWER regulations is crucial. Operators must be trained, and safety features like 'hold to run' controls and emergency stops should always be functional. Guards may be required depending on site-specific risk assessments.

Tote Bin Tippler - Lifting & Tipping, photo 1

Tote Bin Tippler - Lifting & Tipping, photo 2

Tote Bin Tippler - Lifting & Tipping, photo 3

Tote Bin Tippler - Lifting & Tipping, photo 4

Tote Bin Tippler - Lifting & Tipping, photo 5

Tote Bin Tippler - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - Tote Bin Tippler

Name: Tote Bin Tippler
Brand: Base Handling Ltd
SKU: BTM/300/1975/M

Price: Contact seller for price

BTM/300/1850/M Single Pillar Tote Bin Tippler

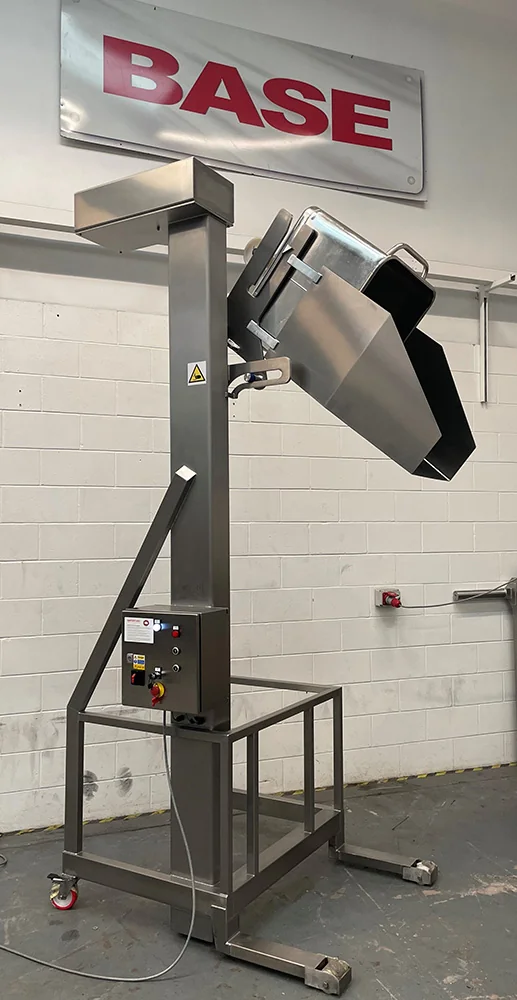

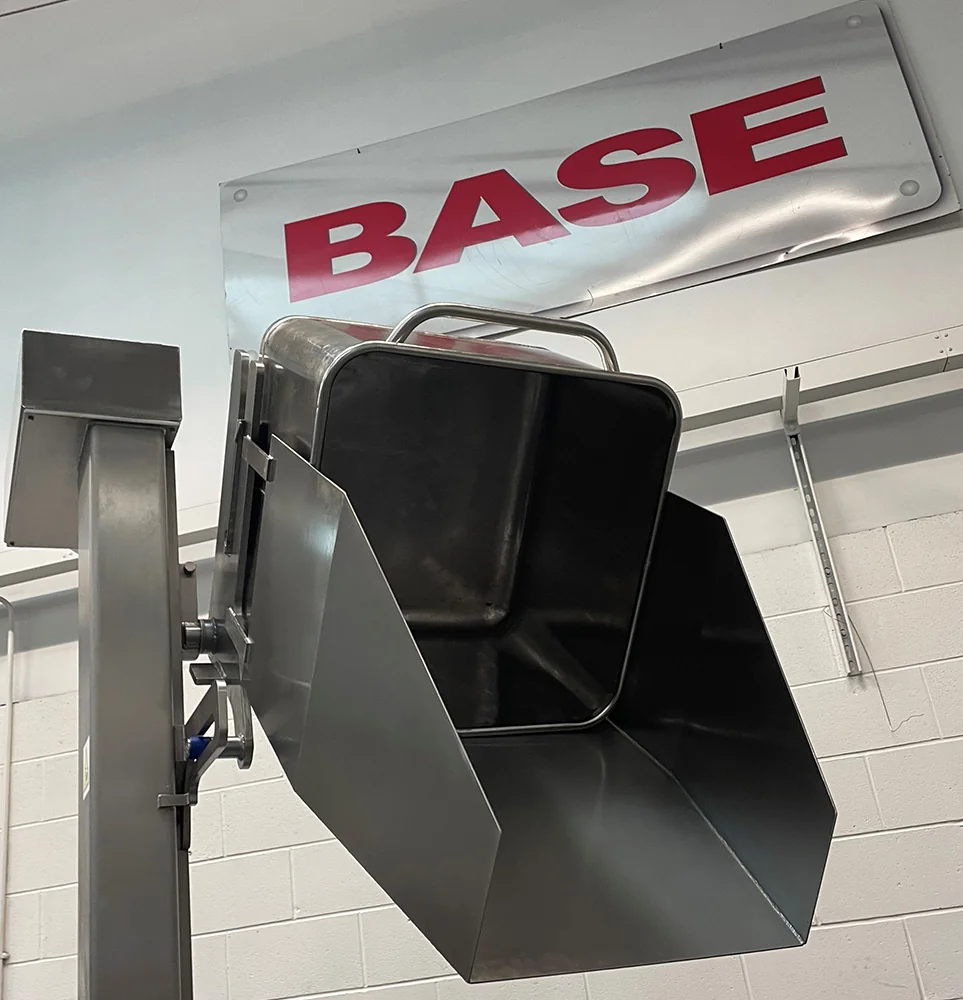

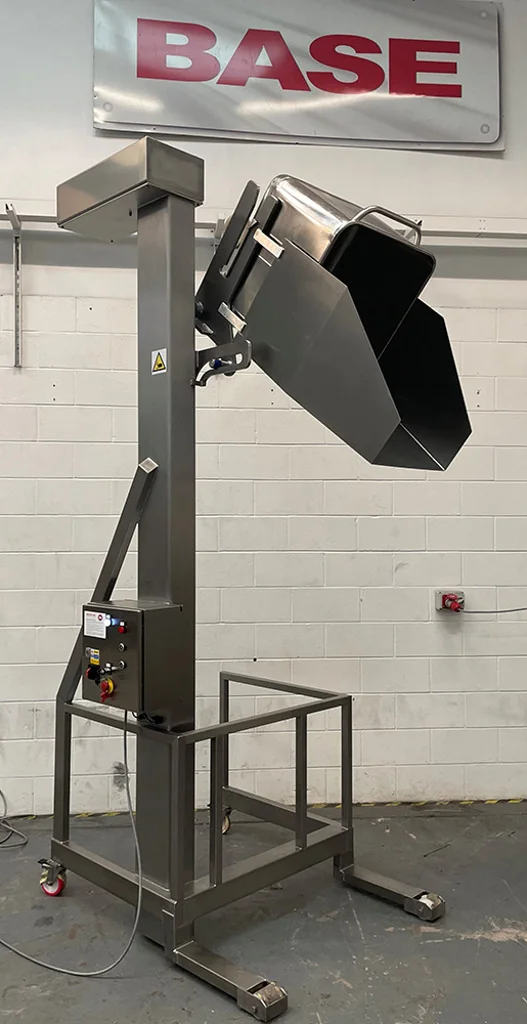

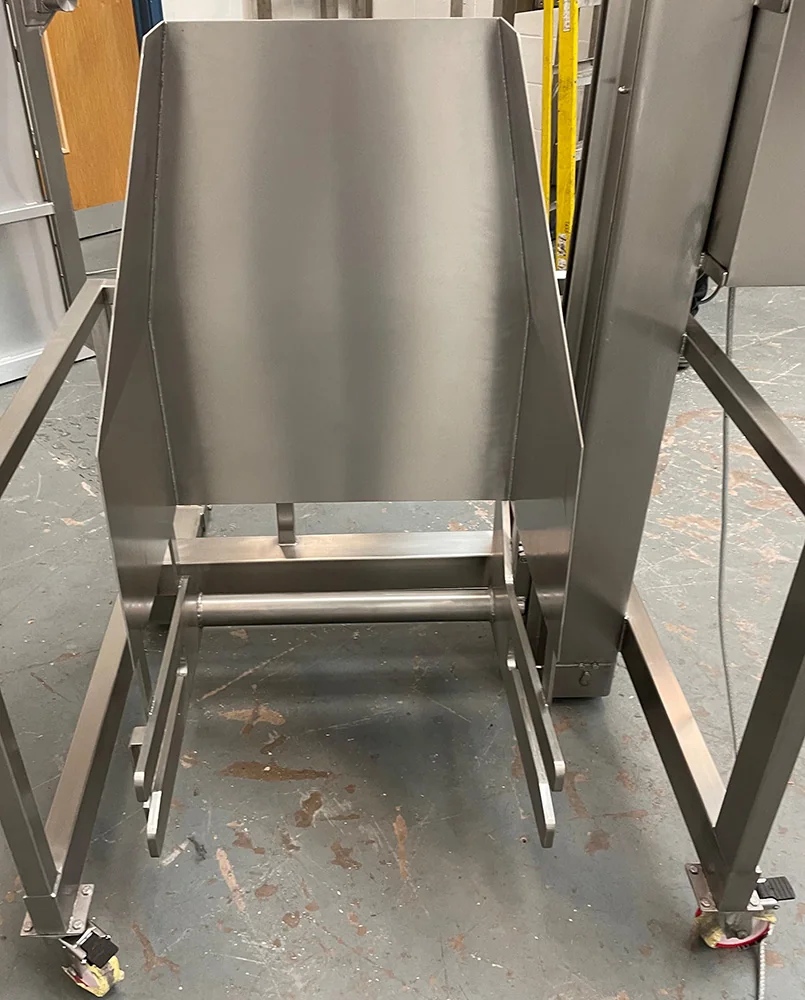

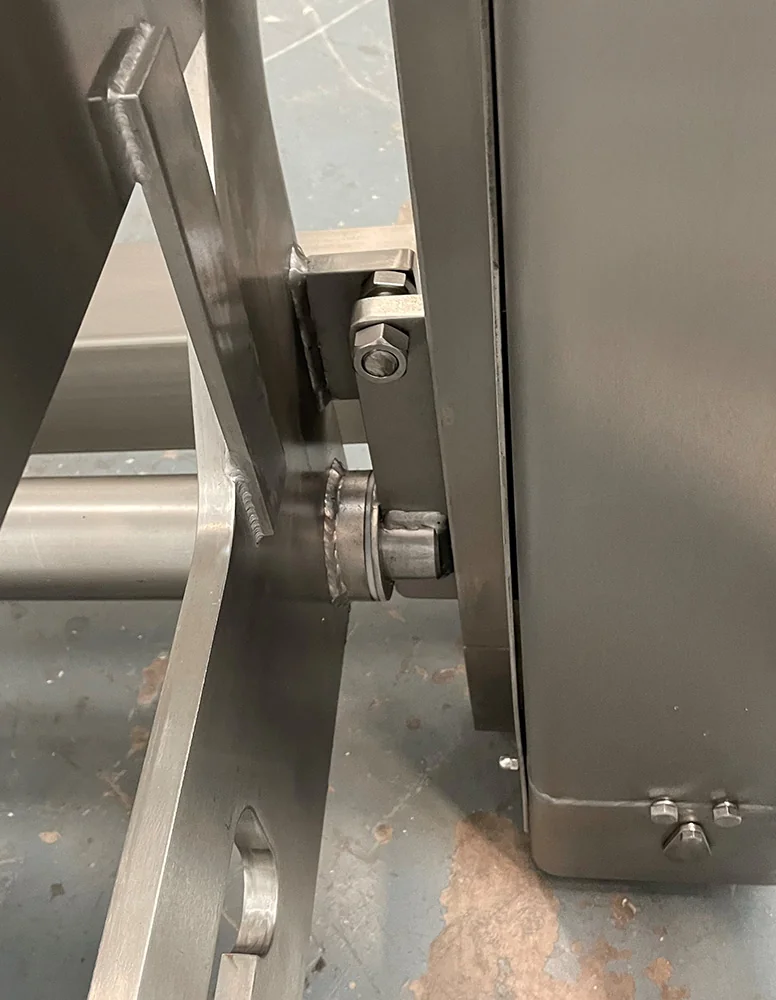

This Single Pillar Tote Bin Tippler is designed to lift and tip a 200 Litre tote bin at a discharge height of 1975mm. The Tote Bin Tippler was manufactured from Grade 304 stainless steel, was a welded construction throughout and was designed to be mobile on castors with a low profile at the front. The Tote Bin Tippler was fitted with an extended tipping chute which also narrowed down at the end. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Tote Bin Tippler is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Tote Bin Tippler Electrical Control

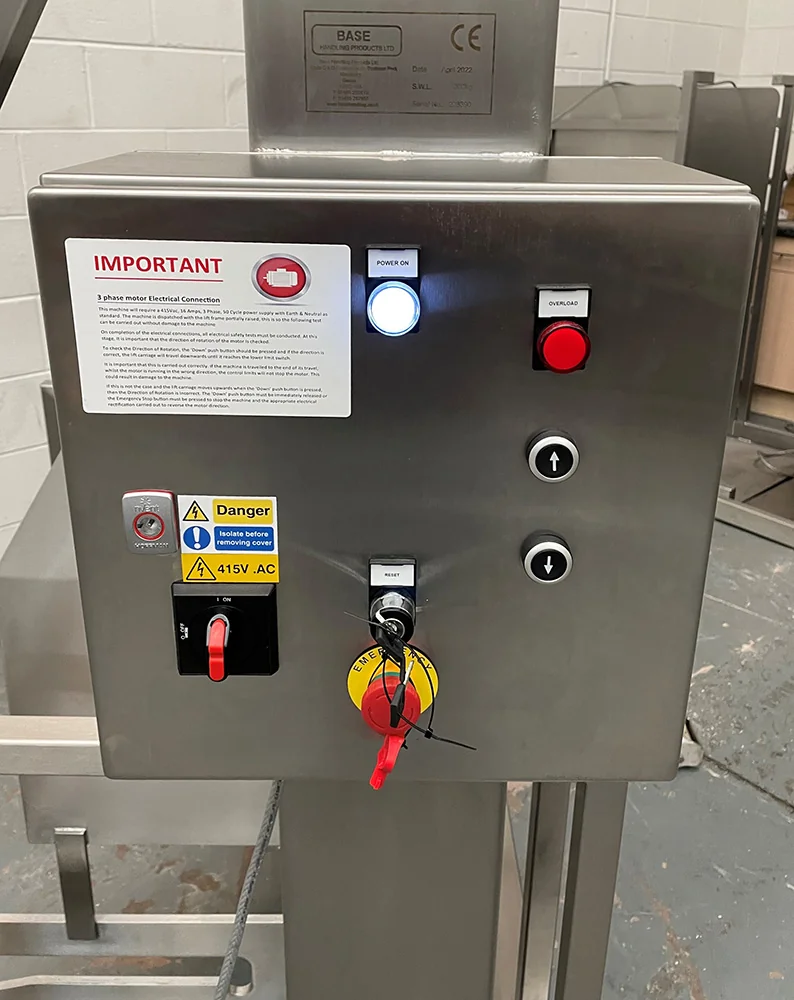

This Tote Bin Tippler is fitted with an IP65 Stainless Steel Control Panel mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Tote Bin Tippler operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Tote Bin Tippler to operate. As soon as either button is released, the Tote Bin Tippler will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Tote Bin Tippler

Model No.

BTM/300/1975/M

Tipping Angle

135 Degrees

Overall Height

3335mm

Machine Handing

Right Hand

Maximum Headroom

4000mm

Tipping Chute

Yes, Extended Tipping Chute Fixed To Lift Carriage

Container Description

200 Litre Tote Bin

Base Arrangement

Mobile On Castors, Horizontal Base Frame

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Safe Working Load

300 Kgs

Tip Height

1975mm

Load/Tension Chain

¾” Simplex

Stock Number

BTM/300/1975/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from tote bins into mixers or processing vessels in bakeries.
Loading raw materials into hoppers for further processing in confectionery manufacturing.
Discharging bulk ingredients into filling lines for packaging operations.
Moving waste products from production areas into skips or disposal units.
Feeding ingredients into cooking vats or blending tanks in ready meal production.

Typical Specifications

Typical capacity: This class of equipment is commonly designed for 200-litre tote bins, though variations exist.
Discharge height: Units of this type typically offer discharge heights around 1800mm to 2000mm, suitable for various processing equipment.
Construction material: Food-grade units are typically constructed from Grade 304 stainless steel for hygiene and durability.
Mobility: Many tote bin tipplers are designed to be mobile on castors for flexible placement within a facility.
Power supply: Commonly requires a 3-phase electrical supply, typically 400V, 50Hz, though specific requirements vary by model.
Control system: Units often feature IP65-rated control panels with 'hold to run' operation for safety.
Safety features: Typically includes safety latches and limit switches to prevent uncontrolled movement or over-extension.
