What is thermoforming?

Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable temperature, formed into a specific shape in a mould, and then trimmed to create a finished product. In packaging, it creates trays, blisters, or sealed packs.

Can this machine handle different package sizes?

Yes, thermoformers like the ULMA TFS 300 are designed for quick format changes, allowing for different package sizes and shapes by swapping tooling.

Is vacuum packaging or gas flushing possible with this unit?

Yes, this model typically offers optional vacuum packaging and Modified Atmosphere Packaging (MAP) capabilities for extended product shelf life.

What kind of maintenance is required?

Routine maintenance typically involves cleaning, checking seals, lubricating moving parts, and inspecting for wear. The hygienic design assists in simplifying cleaning procedures.

What are the benefits of using a thermoformer over other packaging methods?

Thermoformers offer cost-effective in-line packaging, improved product presentation, and the ability to create robust, tamper-evident packs. They can also significantly increase productivity compared to manual or semi-automatic methods.

new Equipment

Available

Verified seller

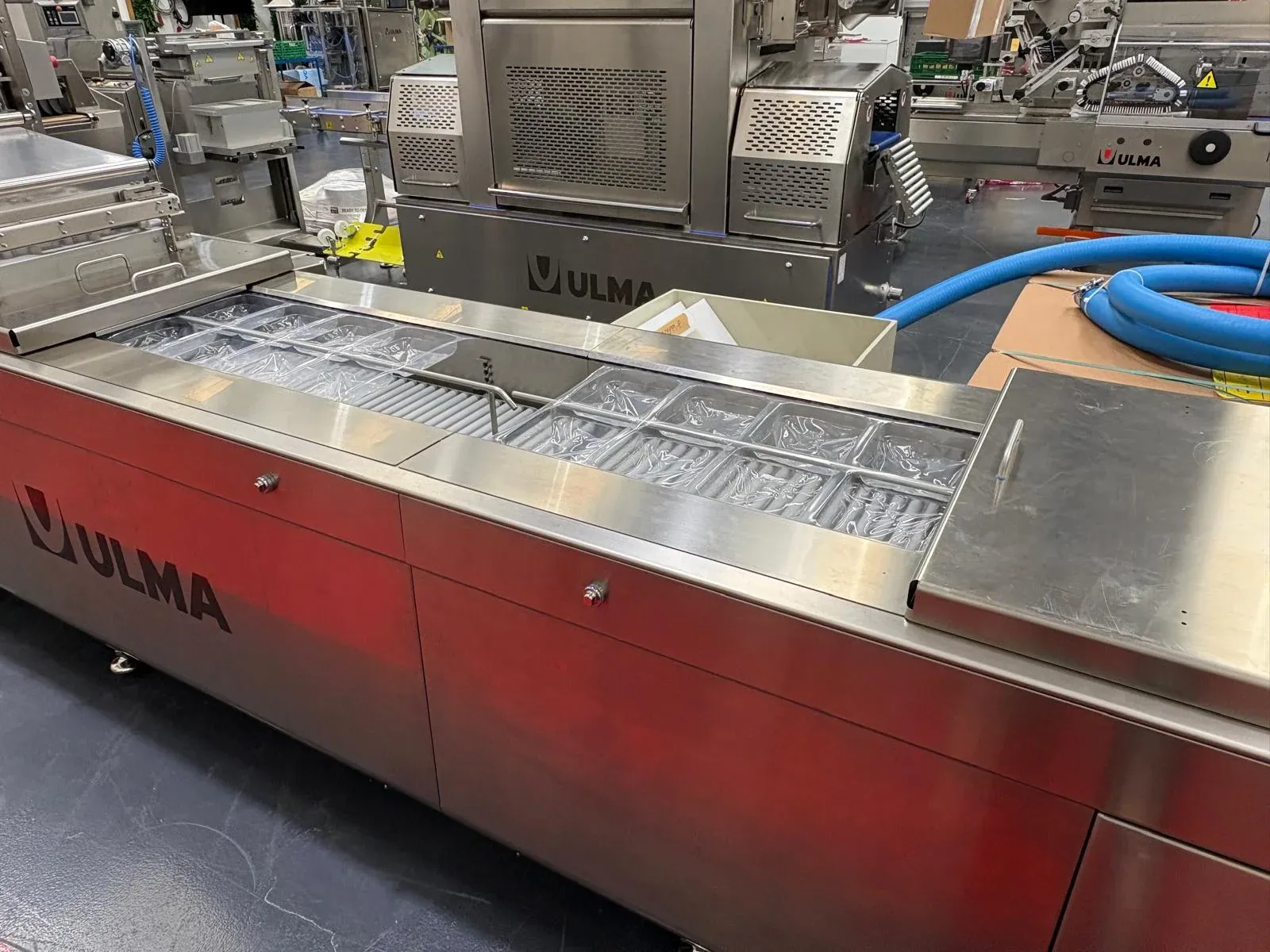

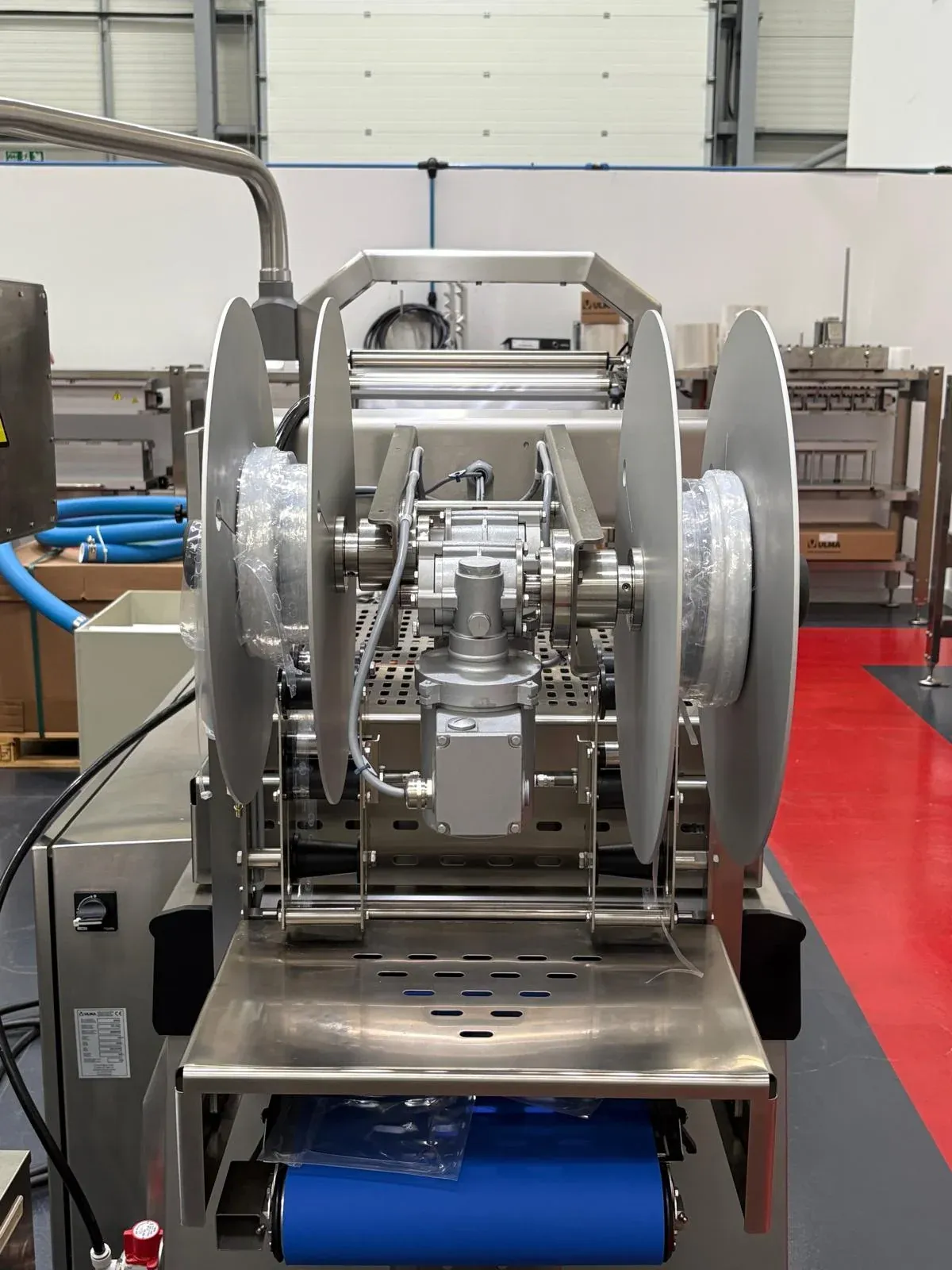

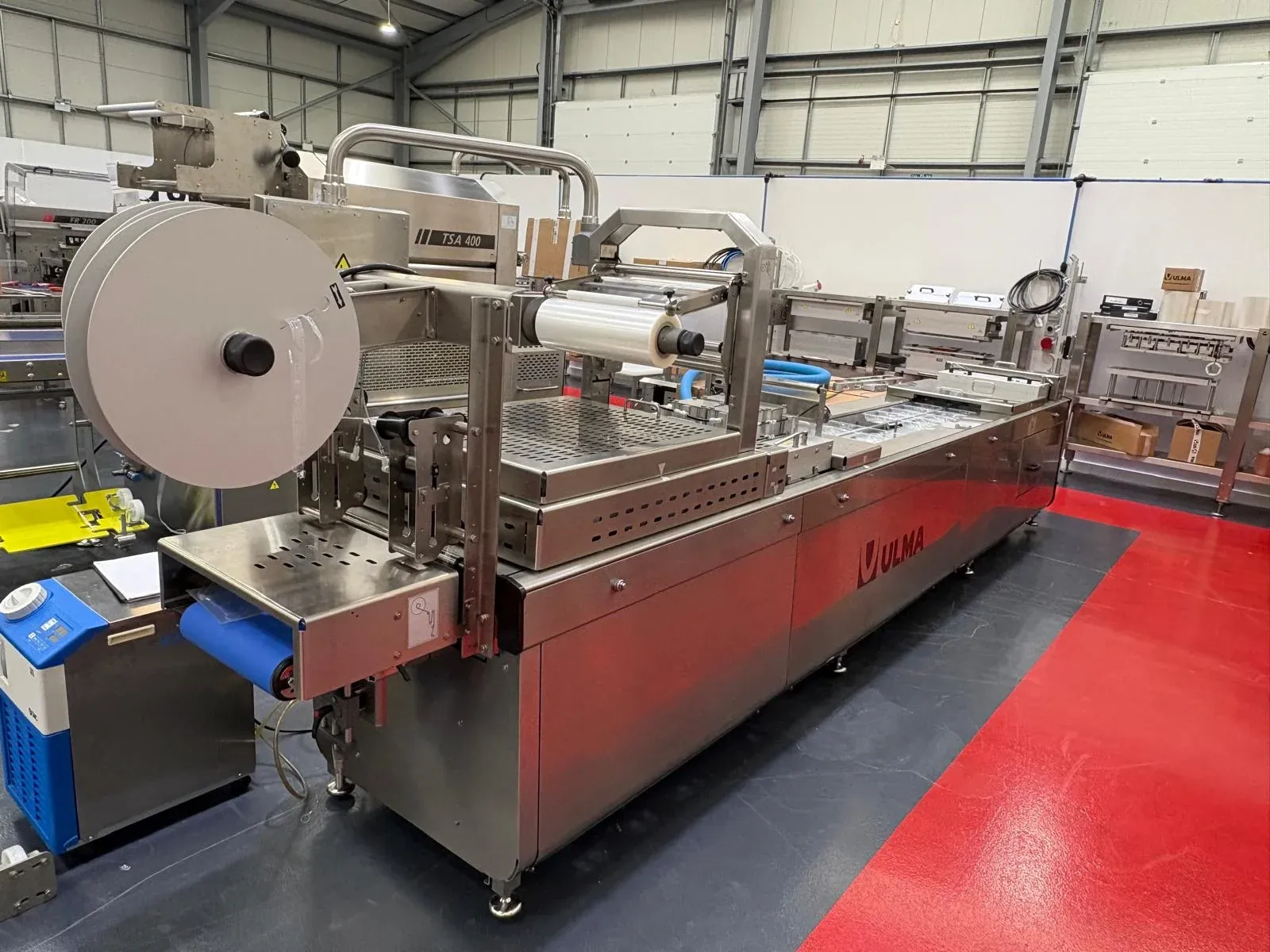

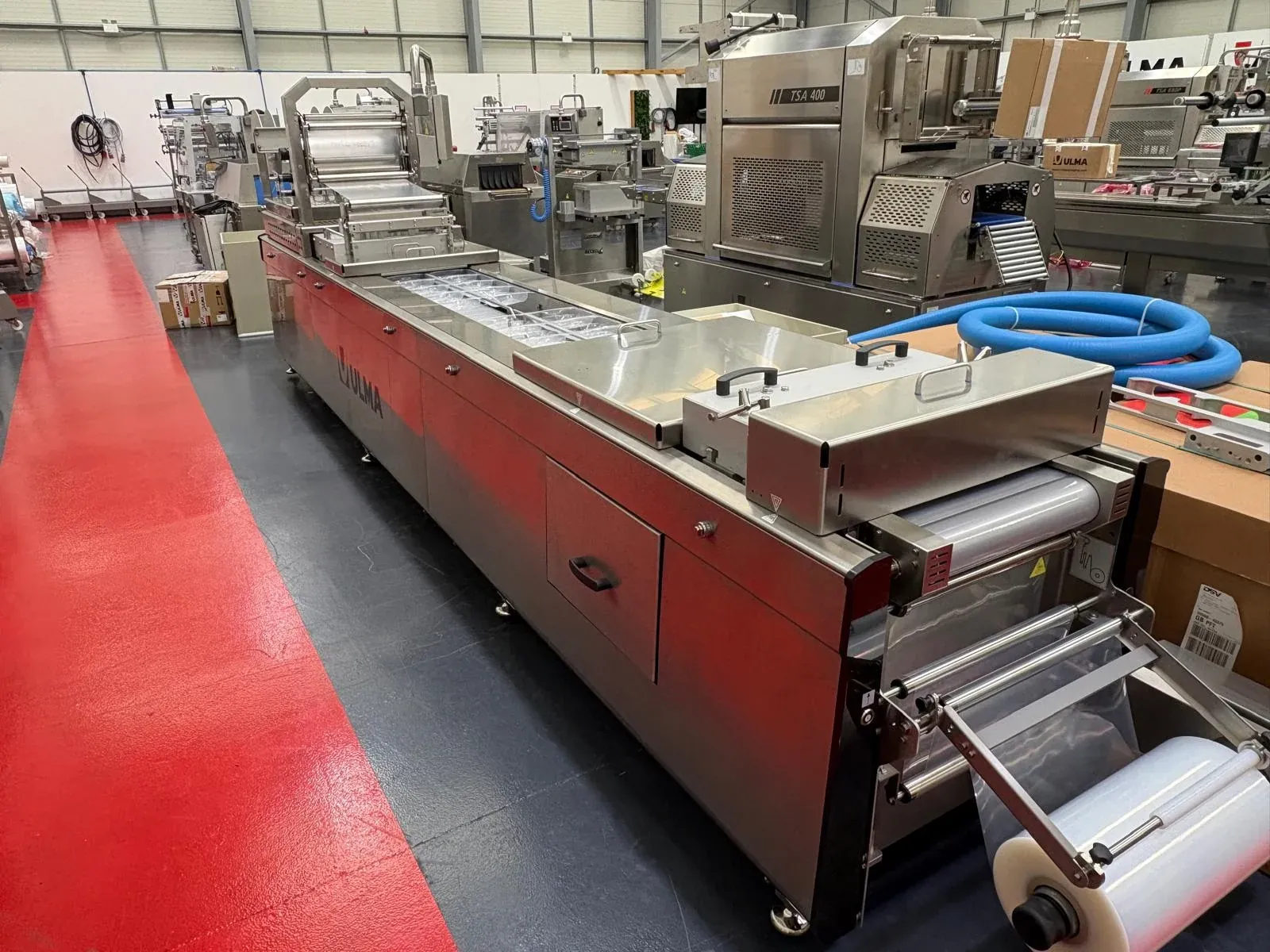

Ulma - ULMA TFS 300 Thermoformer

Name: ULMA TFS 300 Thermoformer
Brand: Ulma
SKU: ulma-tfs-300-thermoformer-f54f796f
Availability: InStock

Price: Contact seller for price

TFS 300 is a compact, hygienic thermoformer that creates packs in-line from flexible or rigid films for food, non-food, and medical products, with optional vacuum and gas flush. It cuts package cost, lifts productivity, speeds loading, and improves presentation. Stainless steel build, IP65 design, 7″ touch-screen UPC control, quick format change, tool-less in-feed, and Remote Support Management via Ethernet. Options include expanded loading area, printed film centring, integrated pumps, and peripherals like coders, dosing, and easy-open features.

Sheffield, United Kingdom

5,936 km away

Length

4.20 m

Width

1.03 m

Height

1.90 m

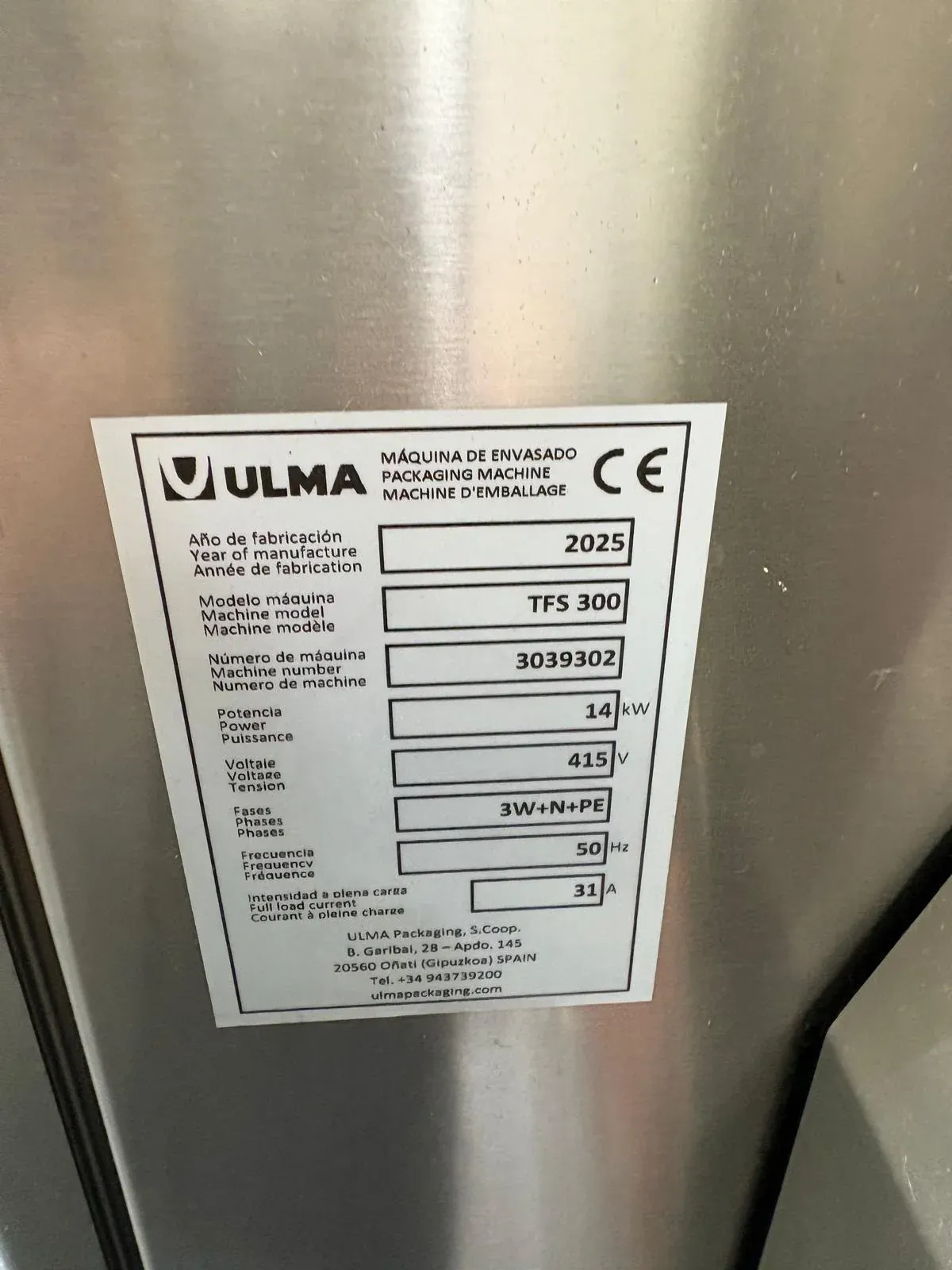

Year of Manufacture

2025

Model Number

3039302

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Packaging of fresh and processed meats, poultry, and seafood.
Forming packs for dairy products such as cheese and ready meals.
Creating sealed packaging for baked goods and confectionery.
Packaging of medical devices and sterile products.
Forming packs for various non-food industrial items.

Typical Specifications

Typical capacity: Throughput for this class of equipment typically ranges from 5 to 20 cycles per minute, depending on pack size and film type.
Power supply: Commonly requires a 3-phase electrical supply, typically 400V, 50Hz, with varying power consumption based on configuration.
Film types: Designed to work with both flexible and rigid thermoforming films, commonly including PP, PE, PET, and barrier films.
Maximum forming area: For this model type, the maximum forming area is typically in the range of 300-400mm in width, with variable draw depth.
Construction material: Constructed from stainless steel, suitable for hygienic environments.
Control system: Features a 7-inch touch-screen UPC control system for operation and parameter adjustment.
Ingress protection: Typically rated to IP65, indicating protection against dust and low-pressure water jets.

Frequently Asked Questions

Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable temperature, formed into a specific shape in a mould, and then trimmed to create a finished product. In packaging, it creates trays, blisters, or sealed packs.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
