Is this unit suitable for products with particulates?

Yes, this model is specified to handle particles up to a maximum of 2.5 cm in diameter.

How easy is the pump to clean and maintain?

Units of this design typically feature tool-free assembly, which facilitates fast and straightforward cleaning.

Can this pump be integrated into an automated line?

Yes, while it can be operated manually, units of this type commonly offer an option for an optical sensor to enable fully automatic operation, turning the pump on/off as needed.

What are the benefits of the pneumatic lift system?

The pneumatic lift system allows for easy and gentle positioning of the transfer tube into and out of mixing bowls, and a turnover system assists with bowl removal.

What are the common outlet tube sizes available?

Commonly, 2" (50.8mm) and 3" (76.2mm) stainless steel outlet tubes are available, along with flexible hose options, to suit different product viscosities and applications.

Used Belpump-Lift 1050 Transfer Pump - Pumps & Transfer Pumps, photo 1

Used Belpump-Lift 1050 Transfer Pump - Pumps & Transfer Pumps, photo 2

Used Belpump-Lift 1050 Transfer Pump - Pumps & Transfer Pumps, photo 3

Used Belpump-Lift 1050 Transfer Pump - Pumps & Transfer Pumps, photo 4

Used Belpump-Lift 1050 Transfer Pump - Pumps & Transfer Pumps, photo 5

Used Belpump-Lift 1050 Transfer Pump - Pumps & Transfer Pumps, photo 6

Used Belpump-Lift 1050 Transfer Pump - Pumps & Transfer Pumps, photo 7

Used Belpump-Lift 1050 Transfer Pump - Pumps & Transfer Pumps

used Equipment

Available

Verified seller

Beldos - Belpump-Lift 1050 Transfer Pump

Name: Belpump-Lift 1050 Transfer Pump
Brand: Beldos
SKU: used-belpump-lift-1050-transfer-pump-446d0a8b
Price: 11800 USD
Availability: InStock

Price: $ 11,800

The Belpump-Lift 1050 Transfer Pump - Ex Showroom Model - Discounted Price Offered.

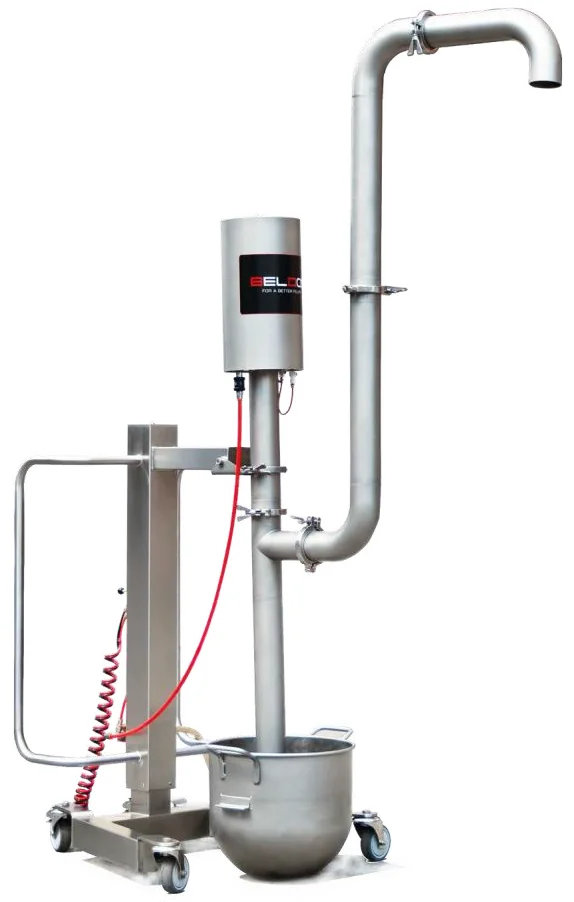

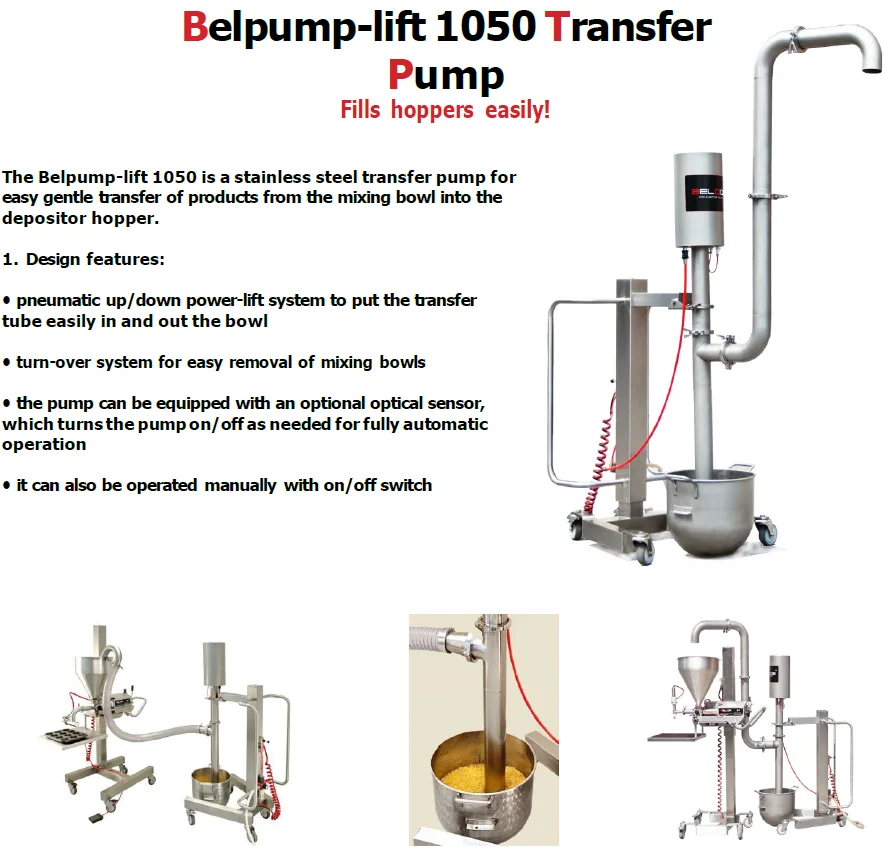

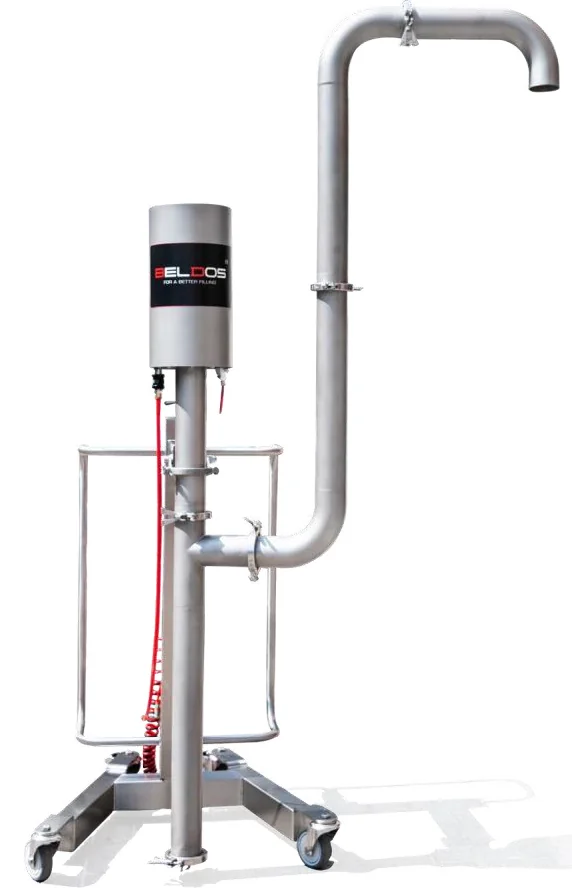

The Belpump-Lift 1050 is a stainless steel transfer pump for easy gentle transfer of pourable products from the mixing bowl into the depositor hopper.

Features a pneumatic up/down power-lift system to put the transfer tube easily in and out of the bowl, and a turn-over system for easy removal of mixing bowls.

It can be operated manually with on/off switch or equipped with an optional optical sensor which turns the pump on/off as needed for fully automatic operation.

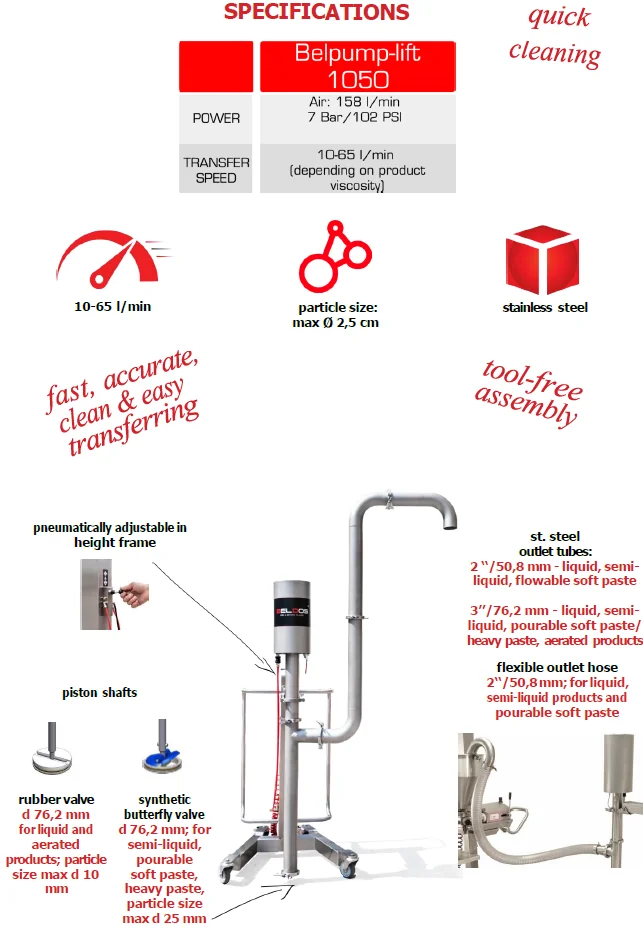

Transfer speed of 10–65 l/min depending on product viscosity. Handles particles up to max 2.5cm diameter.

Mounted on a pneumatically adjustable height frame on casters. Stainless steel outlet tubes available in 2"/50.8mm (for liquid, semi-liquid, flowable soft paste) and 3"/76.2mm (for liquid, semi-liquid, pourable soft paste, heavy paste, aerated products).

Also available with a flexible outlet hose 2"/50.8mm for liquid, semi-liquid products and pourable soft paste. Suitable for products from -8°C to +120°C.

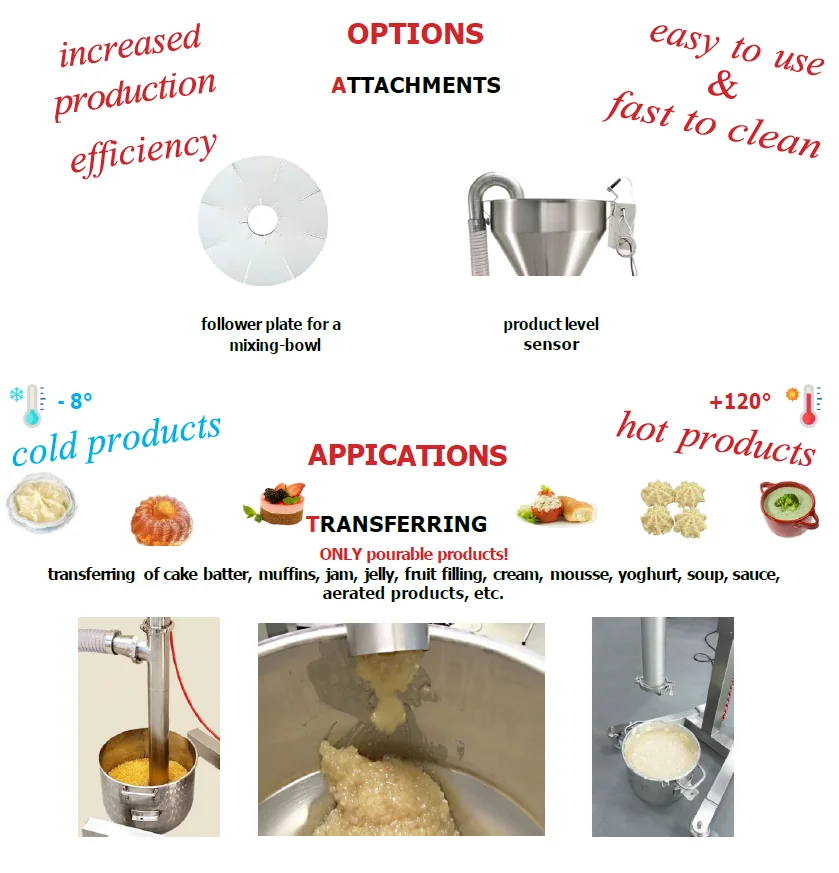

For pourable products only - including cake batter, muffins, jam, jelly, fruit filling, cream, mousse, yoghurt, soup, sauce, and aerated products.

Tool-free assembly, easy to use and fast to clean.

Washington, United States

12,318 km away

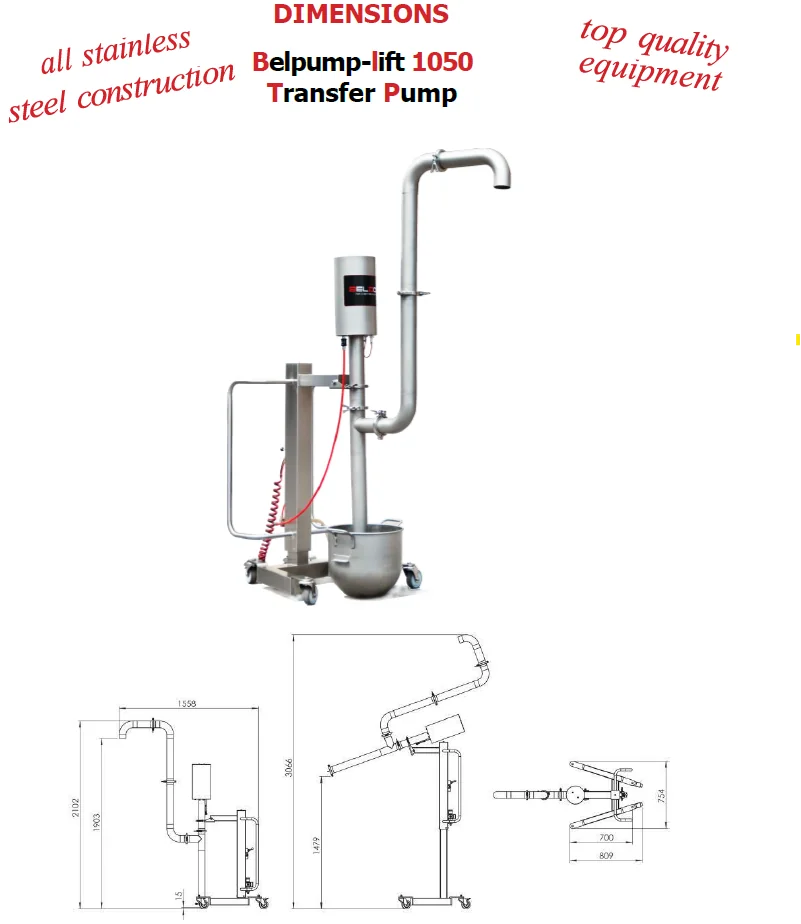

Length

155.8 cm

Width

80.9 cm

Height

306.6 cm

Transfer Speed

10–65 l/min

Power

Air: 158 l/min, 7 Bar / 102 PSI

Construction

Stainless steel

Lift System

Pneumatic up/down power-lift

Bowl Removal

Turn-over system

Operation Modes

Manual on/off switch; optional optical sensor for automatic

Max Particle Size

2.5cm

Product Temperature Range

-8°C to +120°C

Product Types

Pourable products only

Year of Manufacture

2026

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring pourable food products from mixing bowls to depositor hoppers.
Handling delicate food items such as fruit fillings, creams, and aerated products.
Moving viscous liquids and semi-liquids like jams, yoghurts, and sauces.
Facilitating automated or semi-automated production lines for baked goods and desserts.

Typical throughput: For this class of equipment, transfer speeds commonly range from 10 to 65 litres per minute, depending on product viscosity.
Particle handling: Units of this type typically manage particles up to approximately 2.5 cm in diameter.
Temperature range: Suitable for products commonly processed between -8°C and +120°C.
Construction material: Typically constructed from stainless steel for hygiene and durability in food processing environments.
Outlet options: Commonly features interchangeable outlet tubes, often 2" (50.8mm) or 3" (76.2mm), or flexible hoses for various product types.
Mobility and adjustability: Units are frequently mounted on casters with pneumatically adjustable height frames for operational flexibility.
Power supply: Pneumatic systems are common for lift and turnover functions, often requiring a compressed air supply in addition to electrical power for the pump.

This pump is designed for pourable products, including cake batter, muffins, jam, jelly, fruit filling, cream, mousse, yoghurt, soup, sauce, and aerated products.

Food processing pumps are valued for reliability and durability in continuous operations. Buyers typically prioritise corrosion resistance, hygiene compliance, and consistent flow rates. When purchasing used units, inspecting seals, impellers and motor condition proves essential. Industry sentiment favours models with straightforward maintenance requirements and availability of spare parts. Stainless steel construction and gentle handling capabilities for delicate products are consistently sought features.
