What type of drive unit is required for this pump head?

This 313X is an extension pump head and requires a compatible Watson Marlow 313D, 313S, or similar drive unit to operate. Buyers should verify compatibility with their existing drive.

Can this pump head be used for continuous operation?

Yes, units of this type are designed for continuous duty in many laboratory and process applications, provided appropriate tubing and operating parameters are selected.

What are the benefits of the rapid-load mechanism?

The rapid-load, flip-top mechanism allows for quick, tool-free tubing changes, which minimises downtime and reduces the risk of incorrect tube installation.

Is this pump head suitable for sterile applications?

While the pump head itself is not sterile, its design allows for the use of sterile tubing, making it suitable for sterile fluid transfer when used with appropriate aseptic techniques.

How many extension heads can be added to a single drive?

Typically, a compatible drive unit can accommodate up to five extension pump heads, depending on the specific drive model and the tubing types and sizes being used.

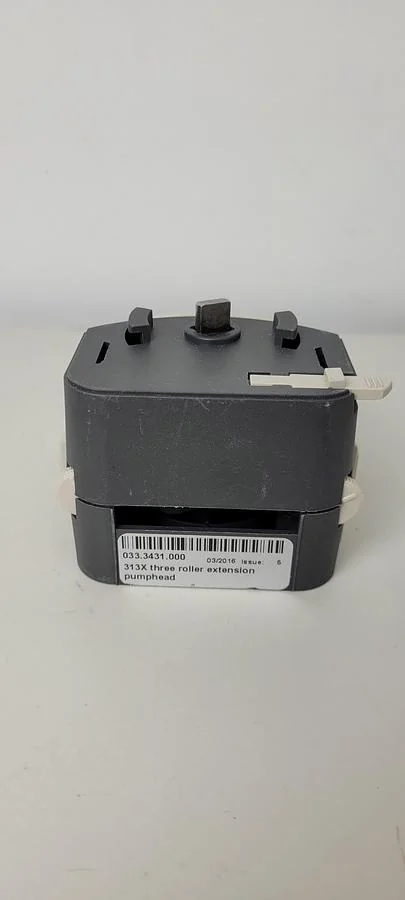

Used 313X Pump Head - Peristaltic Pumps, photo 1

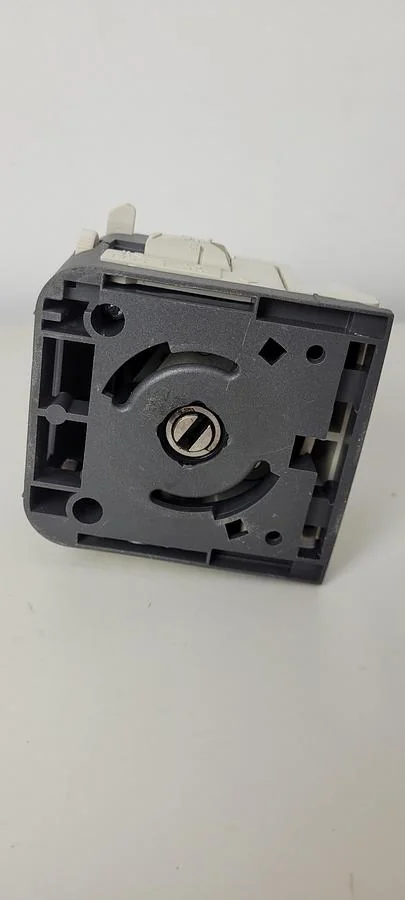

Used 313X Pump Head - Peristaltic Pumps, photo 2

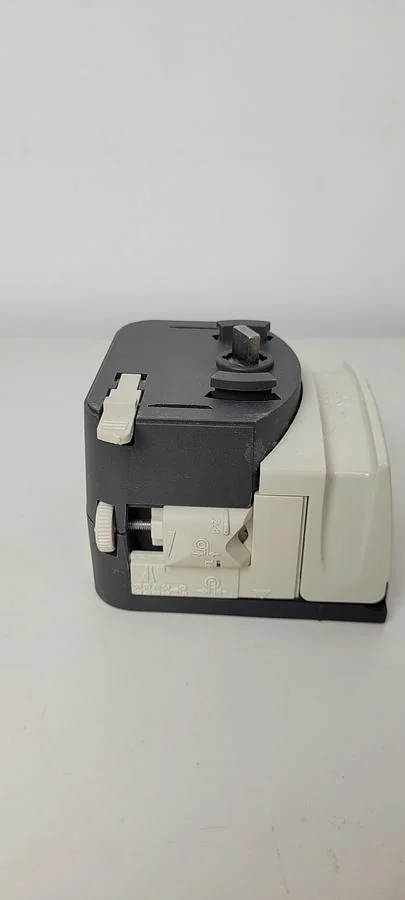

Used 313X Pump Head - Peristaltic Pumps, photo 3

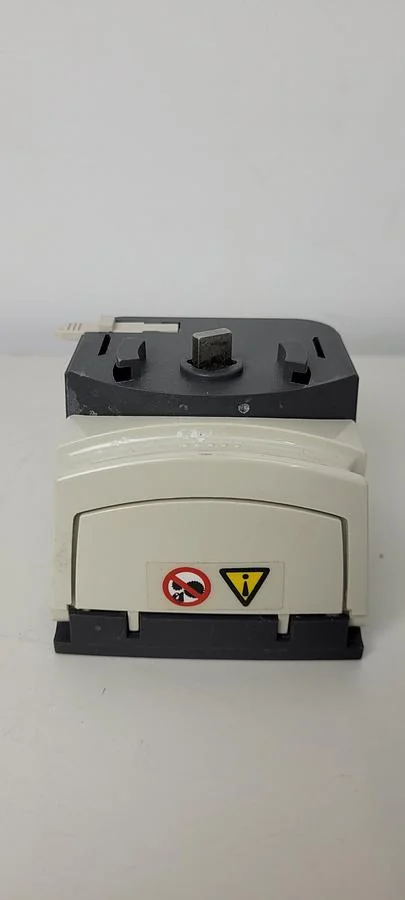

Used 313X Pump Head - Peristaltic Pumps, photo 4

used Equipment

Available

Verified seller

Watson Marlow - 313X Pump Head

Name: 313X Pump Head
Brand: Watson Marlow
SKU: SR8B
Availability: InStock

Price: Contact seller for price

This listing is for the Watson Marlow 313X Extension Rapid Load Pump Head

The unit is in full working condition and is ready for immediate release

Key Features

Watson Marlow 313X Peristaltic Pump Head

The Watson Marlow 313X is a robust, single-channel peristaltic pumphead known for its precision, versatility, and ease of use. Designed for lab, diagnostic, and OEM applications, the 313X features a flip-top rapid-load mechanism, allowing quick and secure tube changes while maintaining consistent flow performance.

Roller Configuration: 3-roller or 4-roller

Max Flow (3-Roller): Up to 2000 mL/min

Max Flow (4-Roller): Up to 1200 mL/min

Max Speed: 400 rpm

Compatible Tubing Sizes: 0.5 to 8.0 mm ID

Wall Thickness: 1.6 mm

Max Continuous Pressure: Up to 2.0 bar (depends on tubing)

Materials:

Back: Glass-filled polypropylene

Front: IXEF

Rotor, Clamps, Mounting Plate: Glass-filled nylon

Rollers: MoS₂-filled nylon

Accepts 1.6 mm wall standard tubing

Quick, error-free tube loading with flip-top design—automatically positions and tensions tubing

Add up to five extension pump heads (depending on tubing type and size)

Modular design—easily expand pumping capacity

Durable construction with chemically resistant materials

Cambridgeshire, United Kingdom

5,791 km away

Model Number

313X Pump Head

Stock Number

SR8B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Precision dosing and dispensing in laboratory settings.
Transfer of sensitive biological fluids in biotech processes.
Chemical reagent addition in analytical and diagnostic equipment.
Sterile fluid transfer in pharmaceutical research and development.

Typical Specifications

Typical flow rate: Up to 2000 mL/min for this class of pump head, depending on tubing and roller configuration.
Compatible tubing ID: Commonly accepts tubing with internal diameters ranging from 0.5 mm to 8.0 mm.
Wall thickness compatibility: Designed for standard 1.6 mm wall thickness tubing.
Maximum continuous pressure: Typically up to 2.0 bar, influenced by tubing material and size.
Roller configuration: Units of this type are commonly available with 3-roller or 4-roller configurations.
Materials of construction: Housing components typically feature glass-filled polypropylene and nylon for chemical resistance.
Maintenance requirements: Primarily involves routine inspection and replacement of tubing.
Modularity: This model is designed to be an extension head, allowing for increased pumping channels when connected to a suitable drive.

Frequently Asked Questions

This 313X is an extension pump head and requires a compatible Watson Marlow 313D, 313S, or similar drive unit to operate. Buyers should verify compatibility with their existing drive.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
