Complete Gainsborough GV4 Packing Line

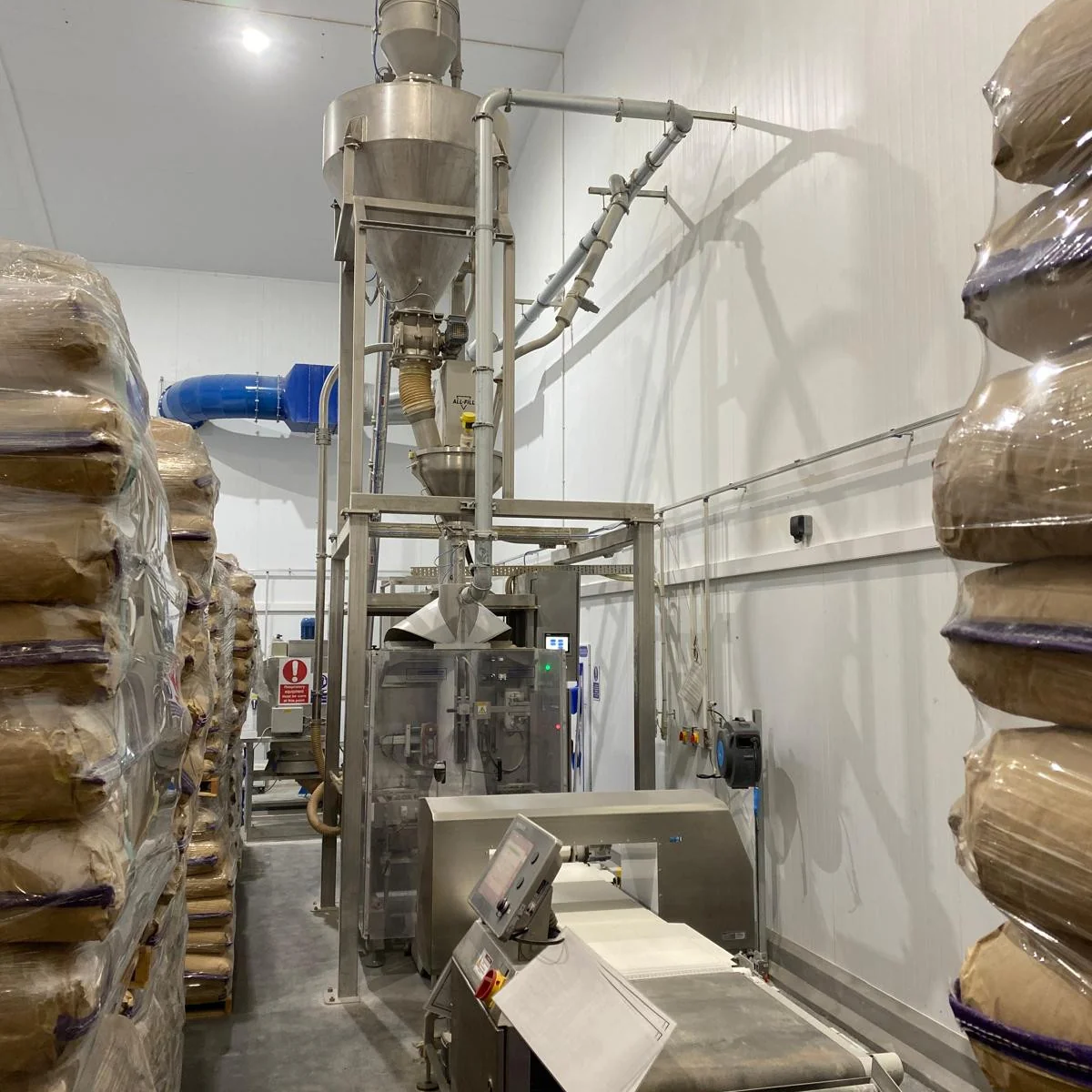

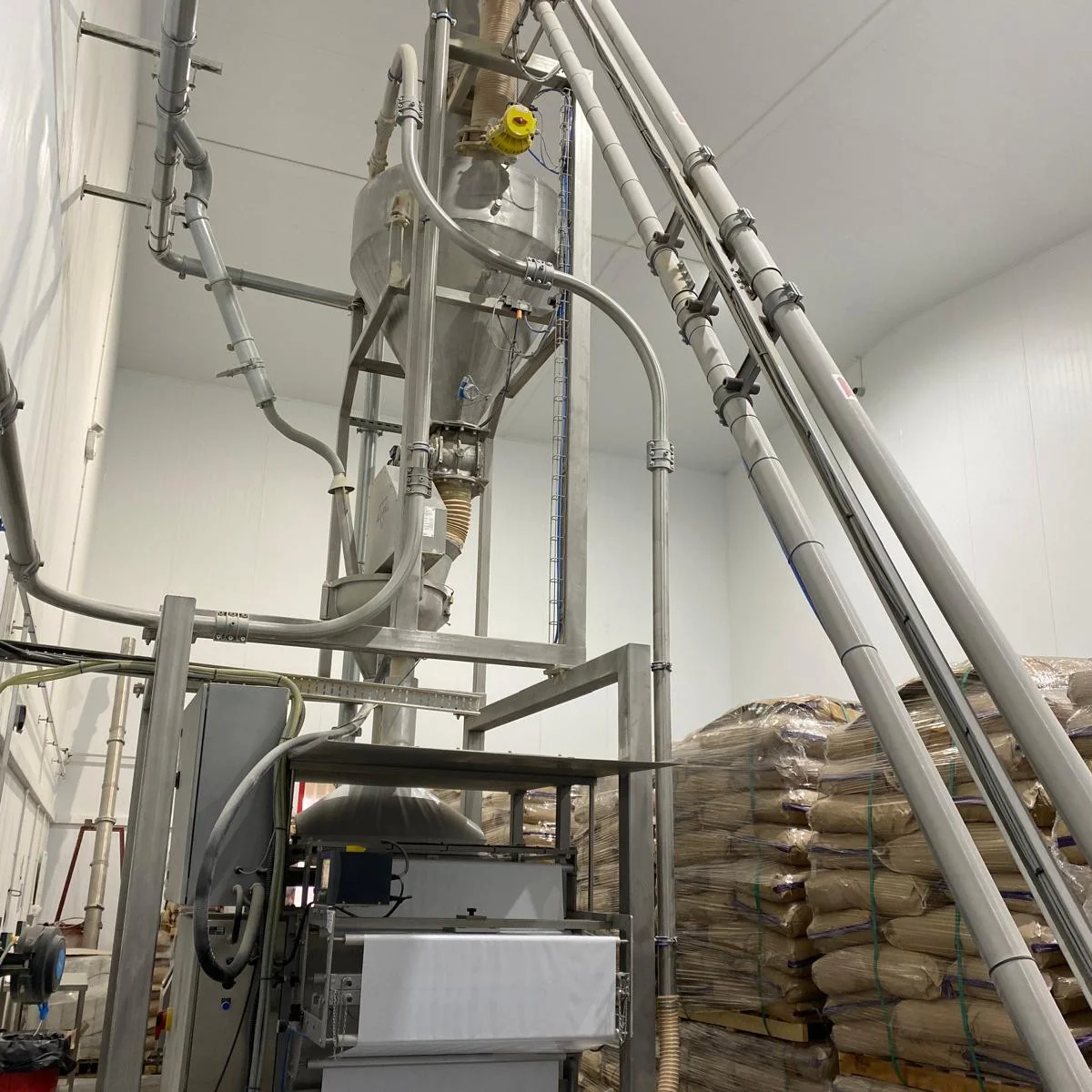

Complete powder packing system for manufacturing and filling bags up to 10kg. The plant was purchased in 2017/2018 and has only been used very lightly (approx. 60 tonnes in 2024). The system comprises of the following equipment:

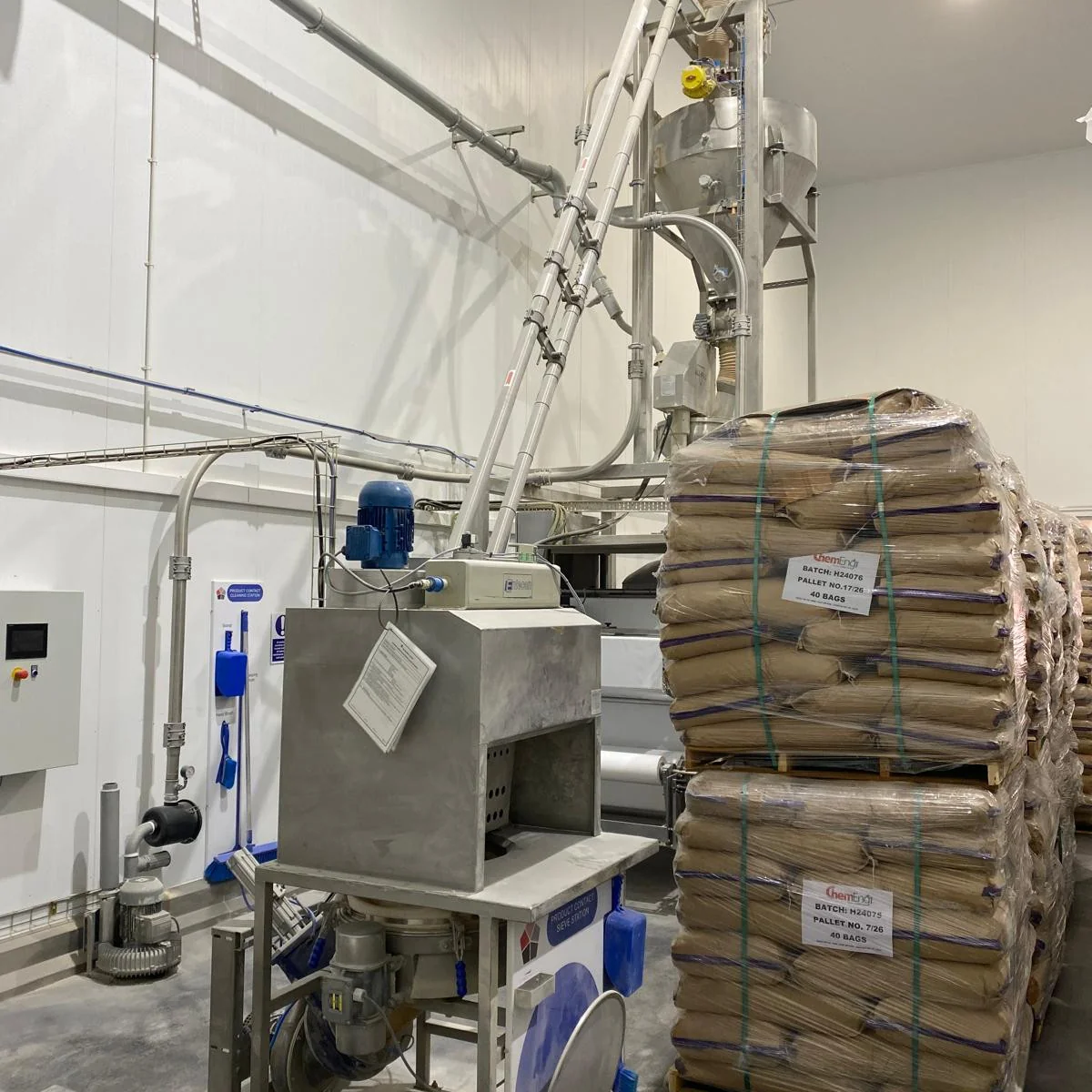

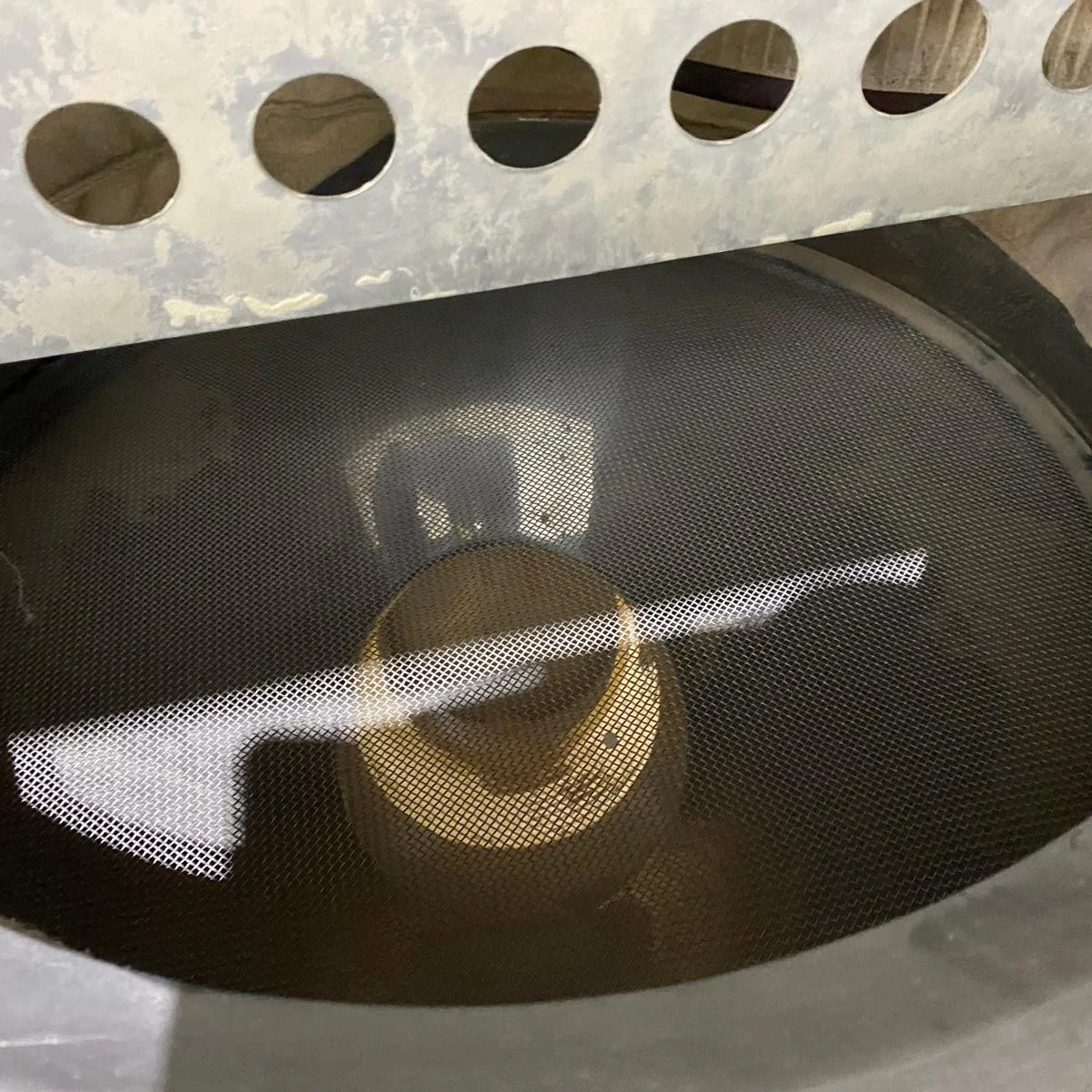

1 x Entecon stainless-steel powder sieve fitted to stainless-steel frame. Overall dimensions - 1100mm x 930mm x 2200mm high.

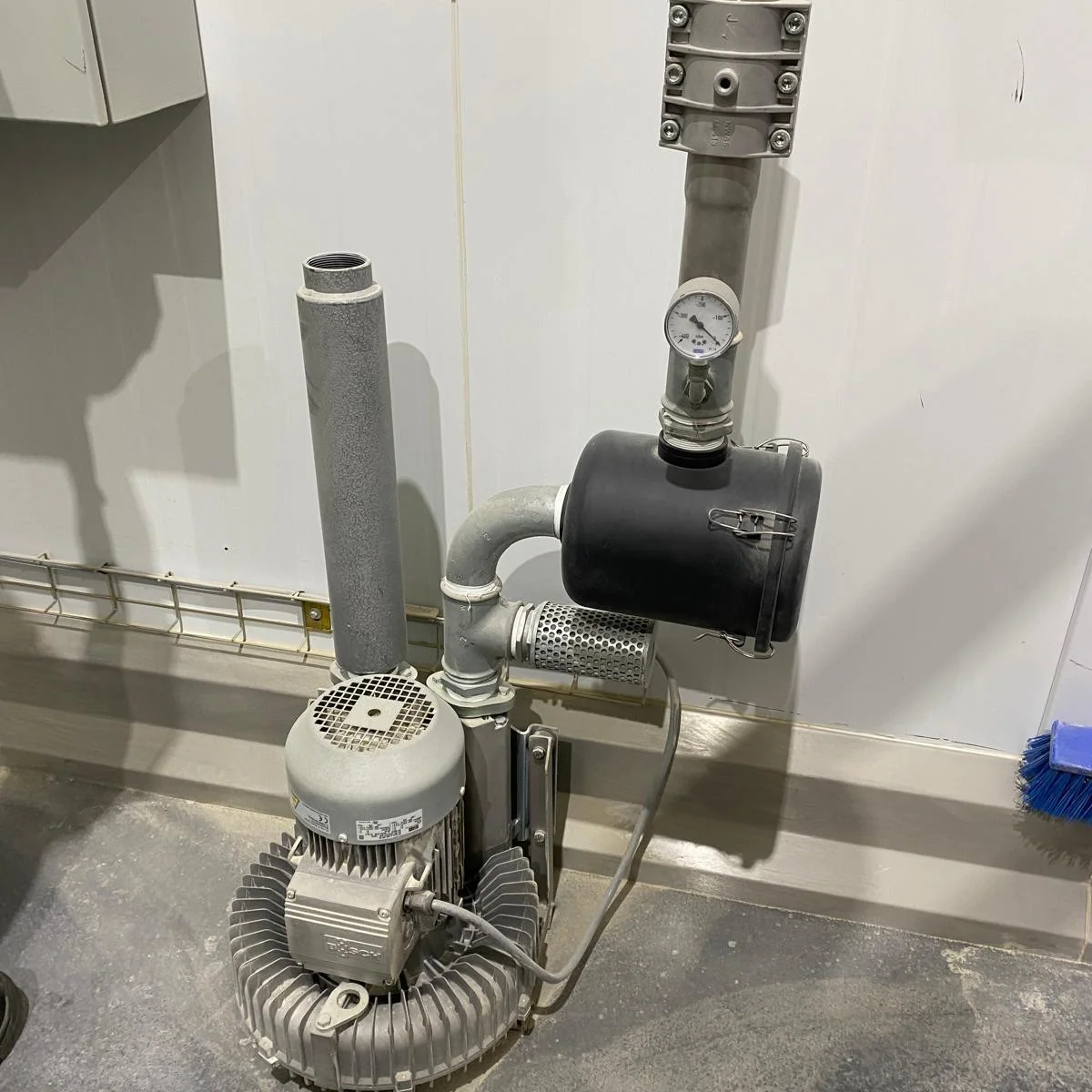

1 x Entecon AMC blower conveyor with control box. 1 x Busch vacuum lifting system. Model - SB 0310 D 0H0 UH XX.

1 x Fluidiser with high and low level probes.

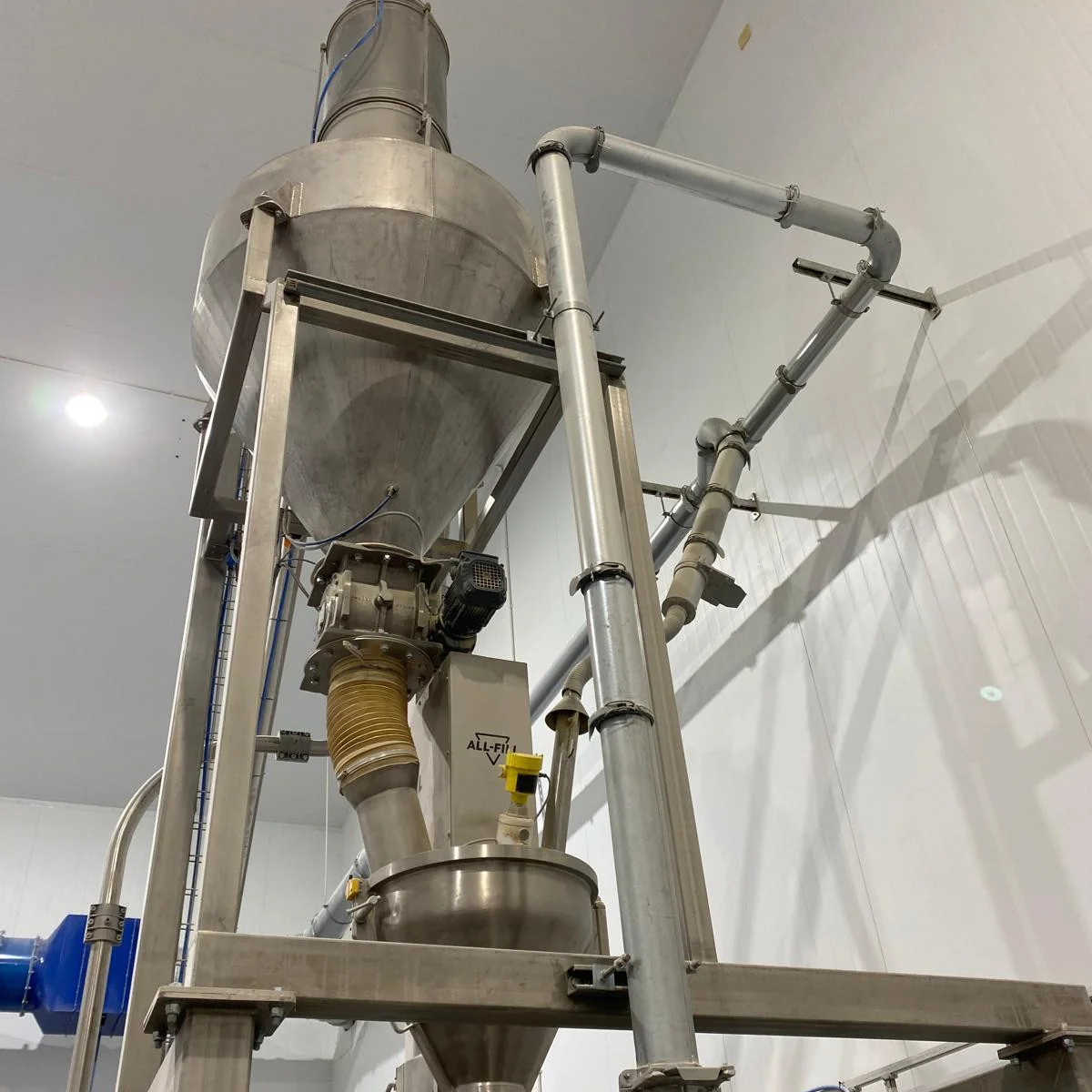

1 x All-Fill powder auger filler with agitator and outfeed tube. Model - S10.

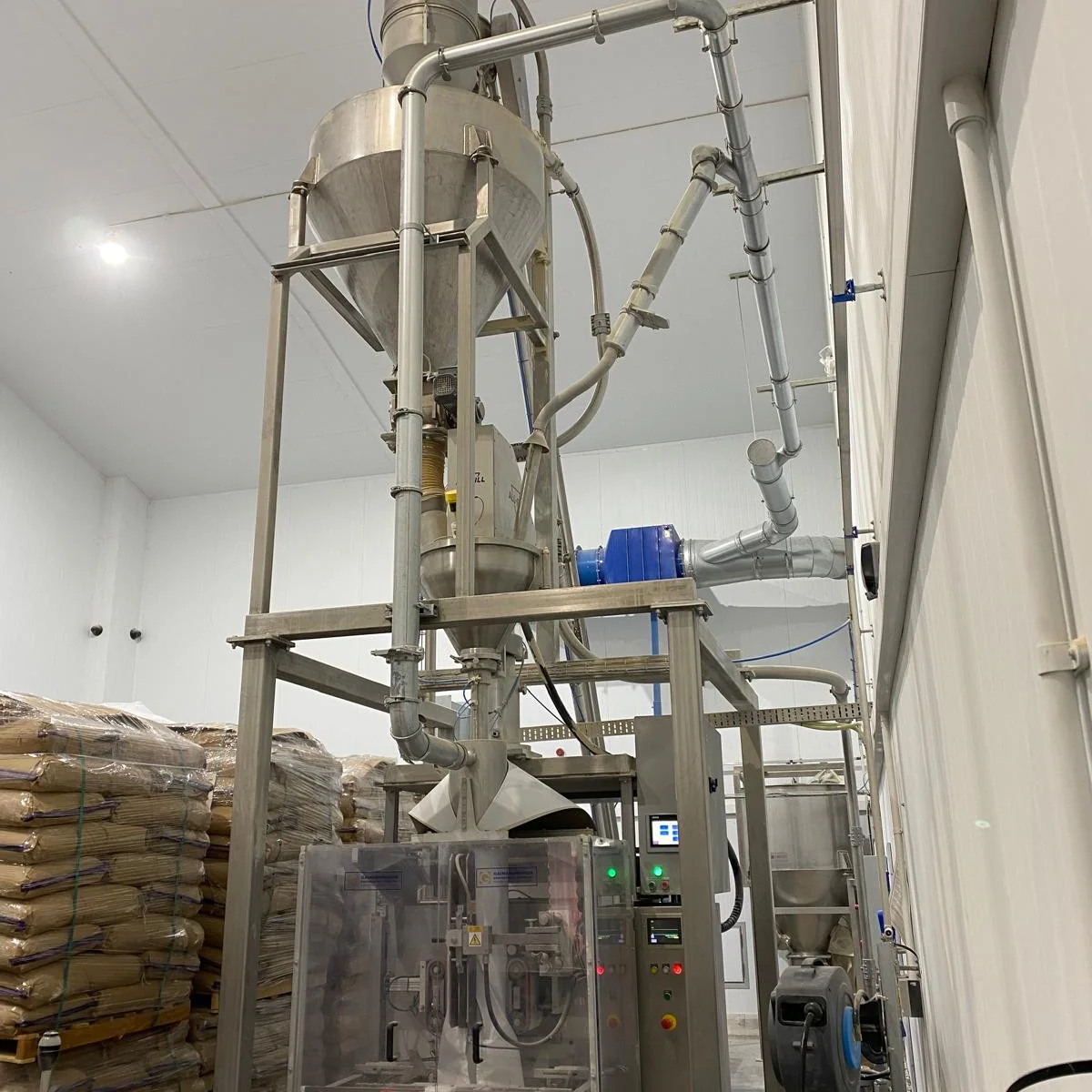

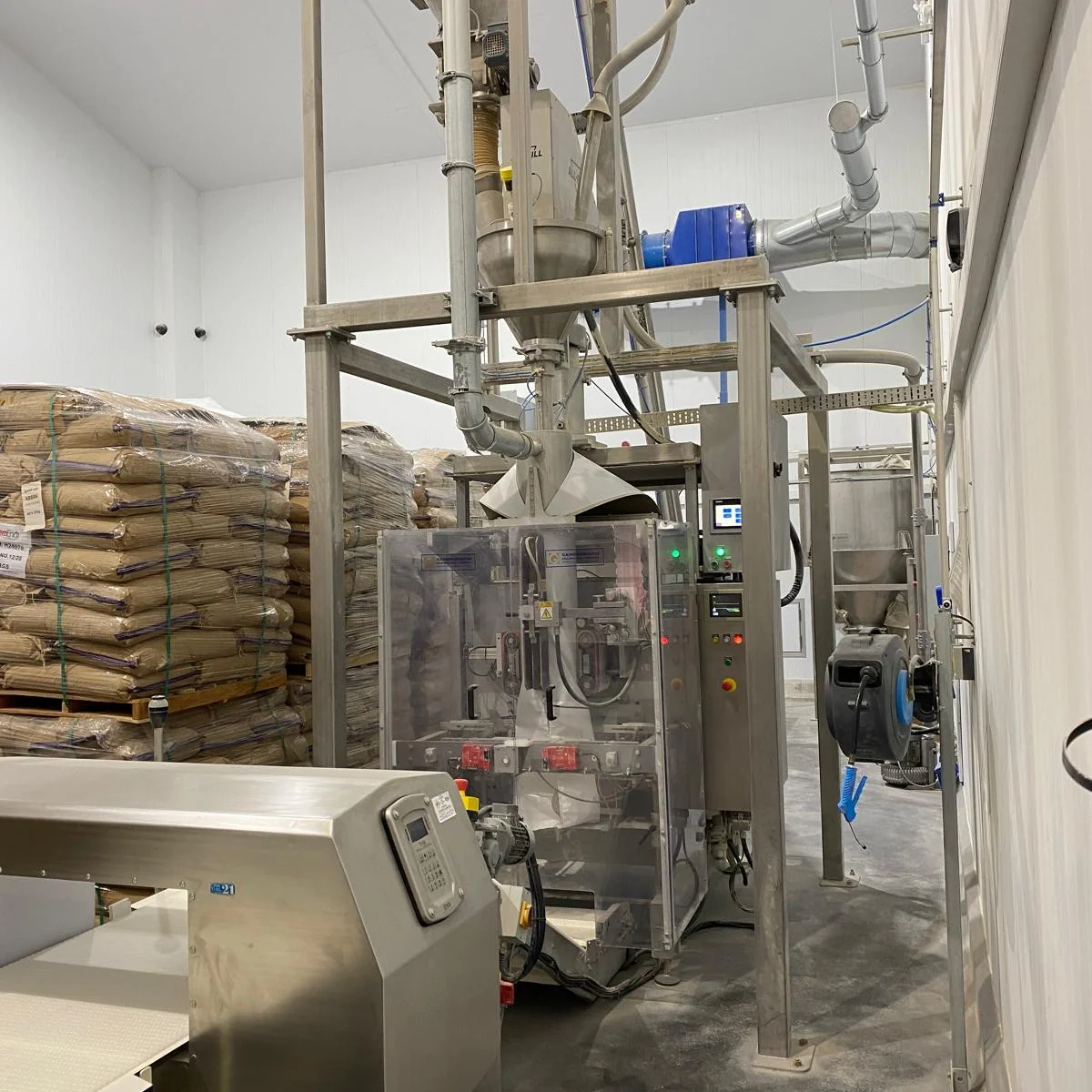

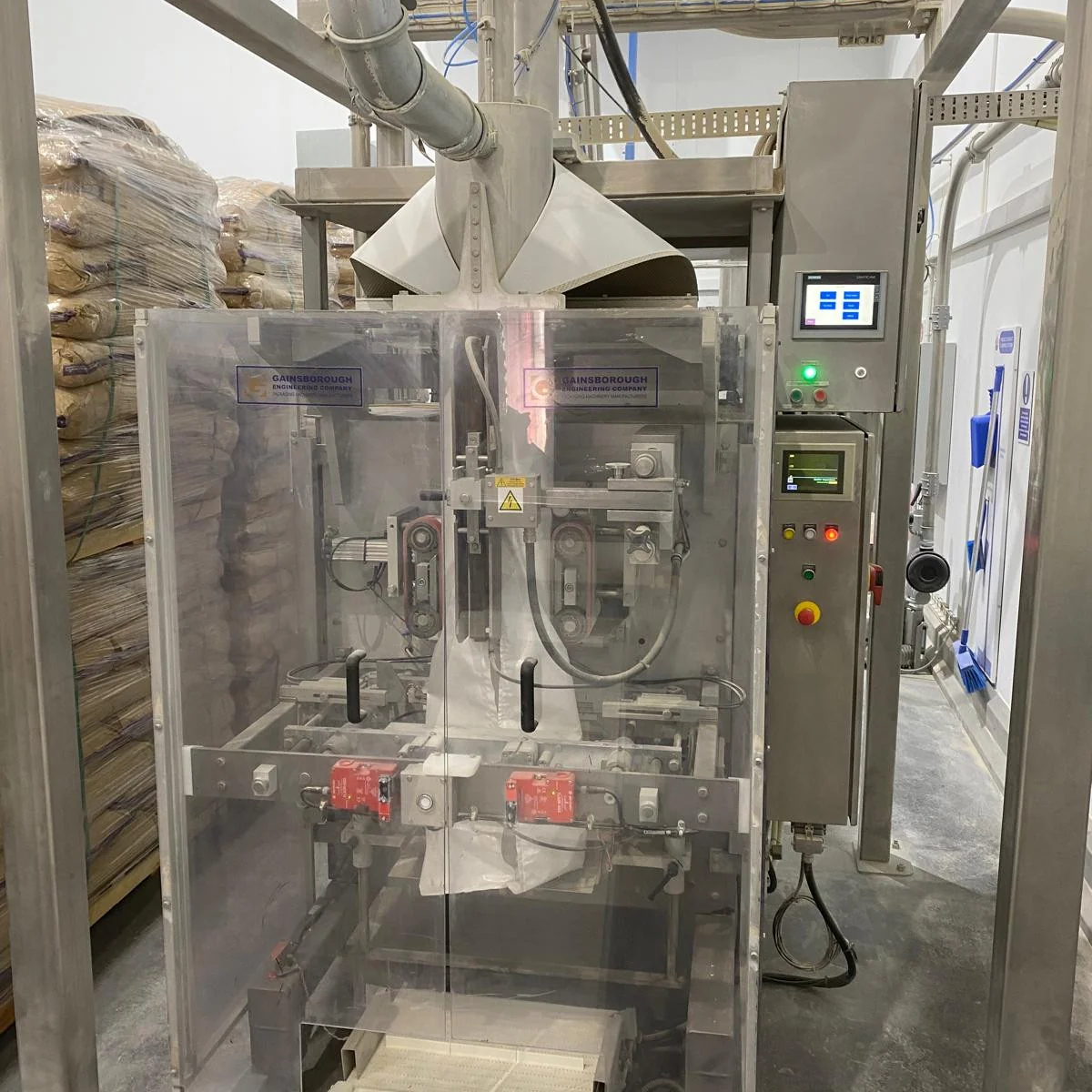

1 x Gainsborough Engineering Co. GV4 vertical form, fill and seal bagging machine (2018) fitted with Markem Imaje Smart-Date X60 thermal printer. Sealing bars - 430mm (horizontal) and 600mm (vertical). Current film - 840mm wide. Used to produce 400mm wide bags.

1 x Gainsborough Engineering Co. mobile outfeed conveyor. Infeed - 200mm. Outfeed - 1000mm.

1 x OCS Checkweighers GmbH HC check weigher (2017) to weigh up to 30kg. Type - HC. Weigh table dimensions - 800mm long x 60mm wide.

1 x Declined roller conveyor on height adjustable feet, all stainless steel. Roller bed width - 800mm. Overall dimensions - 1210mm long x 880mm wide x 870mm high (+130mm max).

Footprint of full system (including space required to operate it safely) - 11m long x 4m wide.

Technical data for Gainsborough GV4 VFFS bagger:

Controls - Siemens SIMATIC HMI touchscreen.

Packing speeds are subject to the suitability of packaging material, feeding systems, and the types of product to be packed.

Sealing bars - Horizontal: 430mm long. Vertical: 600mm long.

Packing Speeds - Up to 50 packs per minute.

Typical maximum bag weight - 10 kg.

Minimum pack size - 150mm wide x 150mm long.

Maximum pack size - 400mm wide x 600mm long.

Increased pack length - A double pull for the pack length is available, but is subject to suitable discharge arrangements.

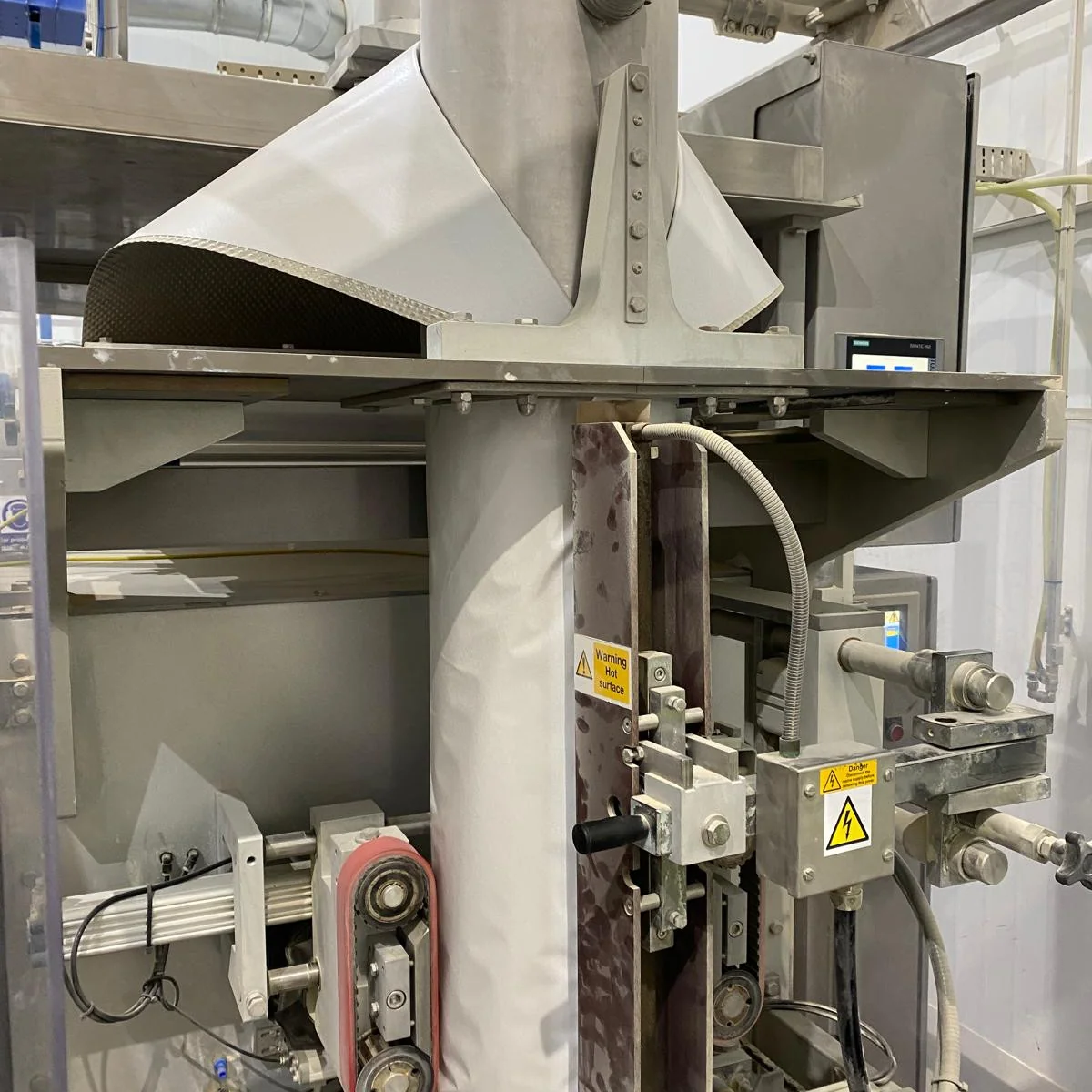

Forming tube - 240mm diameter.

Air supply pressure - 80PSI / 5 bar.

Air consumption - 25 – 30 cubic feet per minute.

Machine dimensions: 1350mm wide x 2410mm deep/long x 2100mm high. Weight: 1000kg.

*Please note - if you require a metal detector in this line then we can supply one additionally*

BUYER TO REMOVE. Location - Yorkshire, UK. Stock code - MM6114.
