Guill SFP-CR 70 Volumetric Filling And Block-Bottom Bagging System

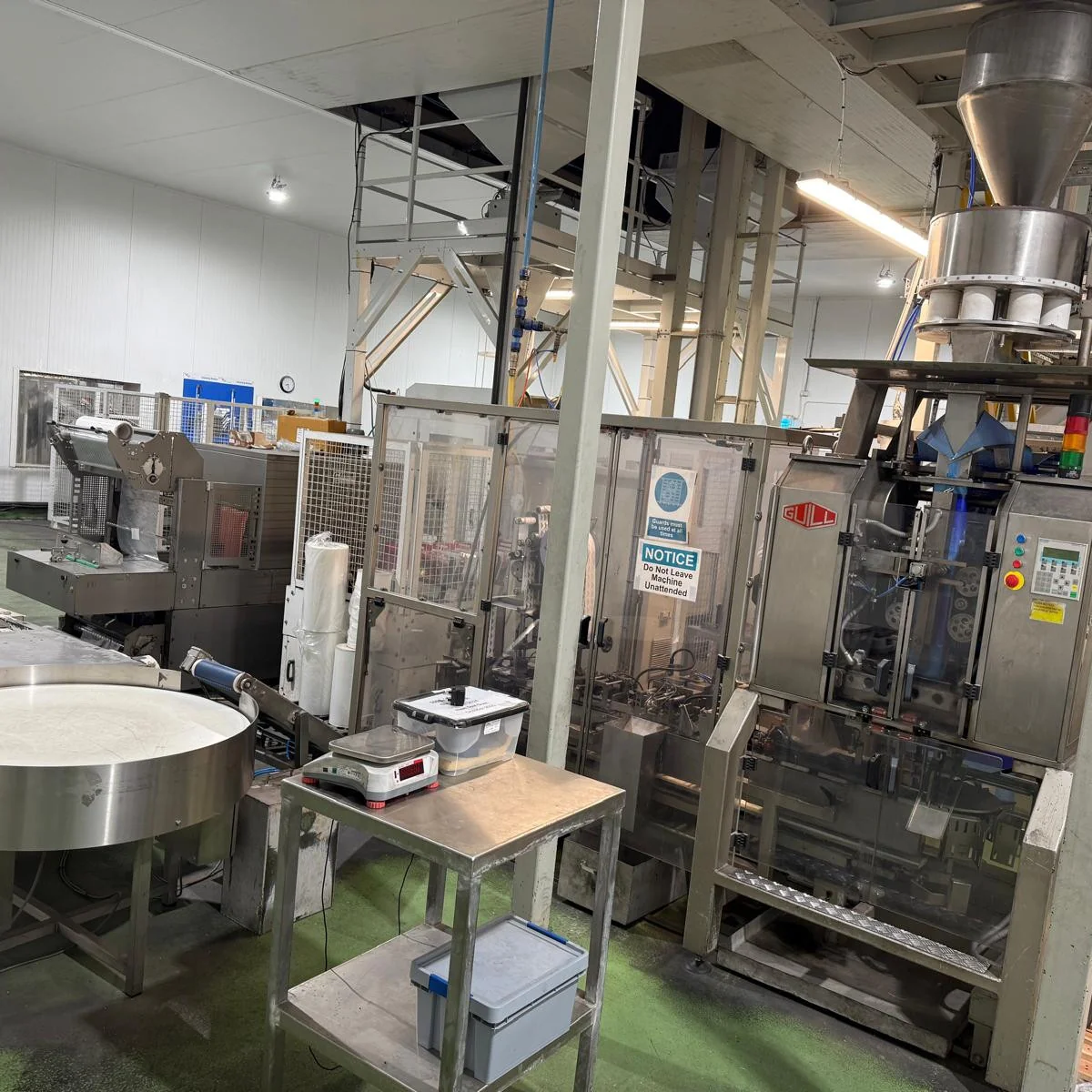

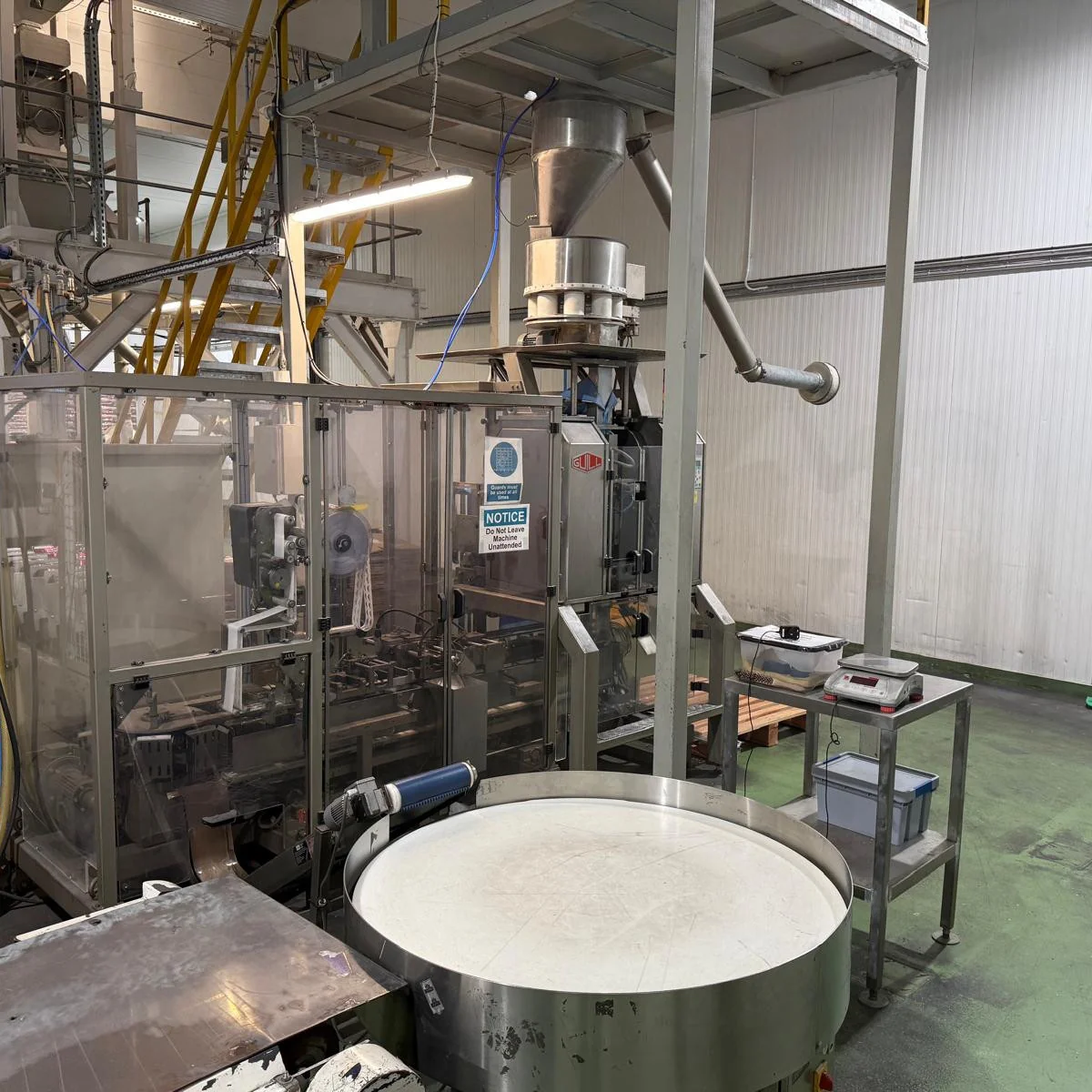

Guill Volumetric Filling and Block-Bottom Bagging System, comprising of:
✅ Manufacturer - Construcciones Mecanicas Guill S.A.
✅ Serial number - SP 3933 C70232.
✅ Date of manufacture - 2004.

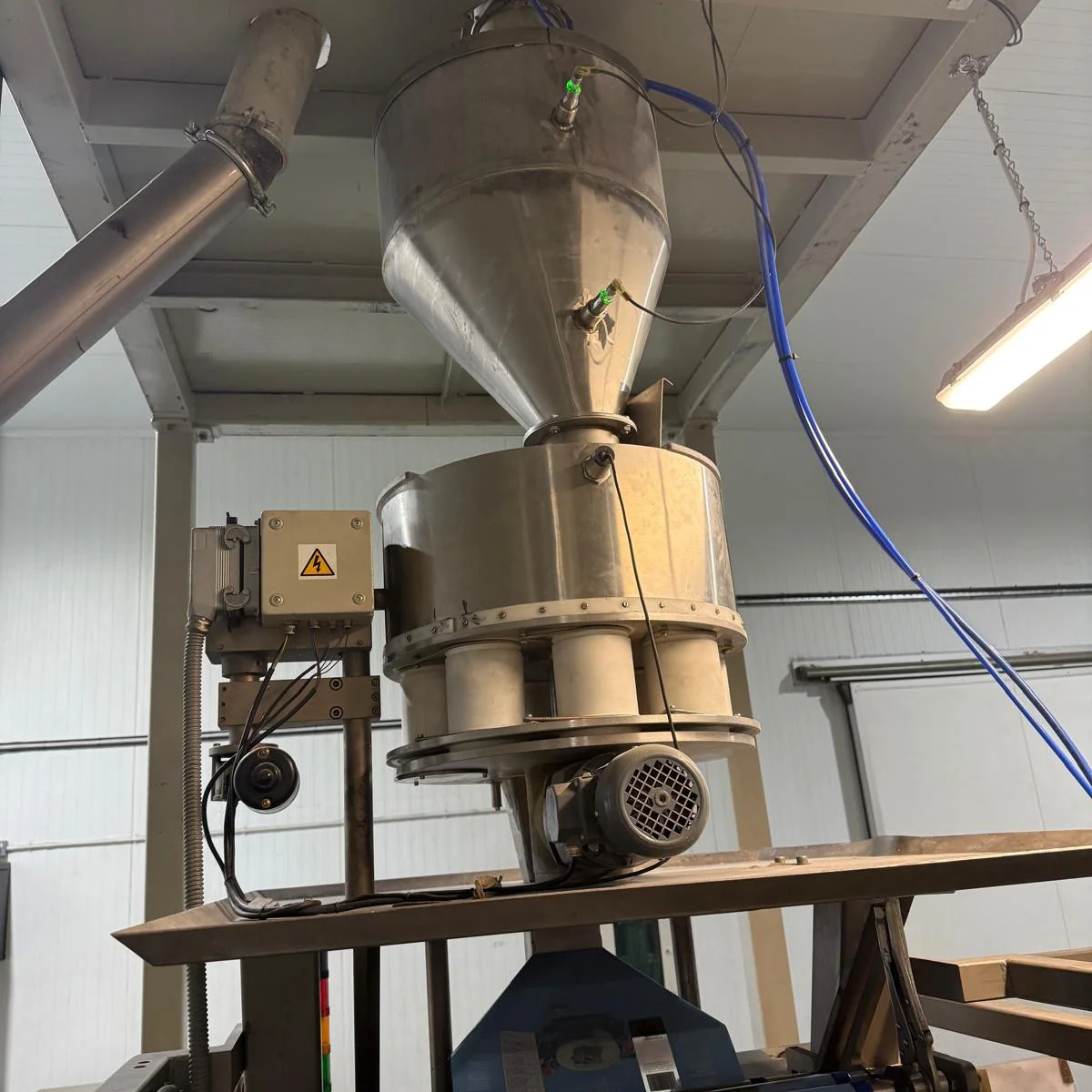

Hopper with sensors.

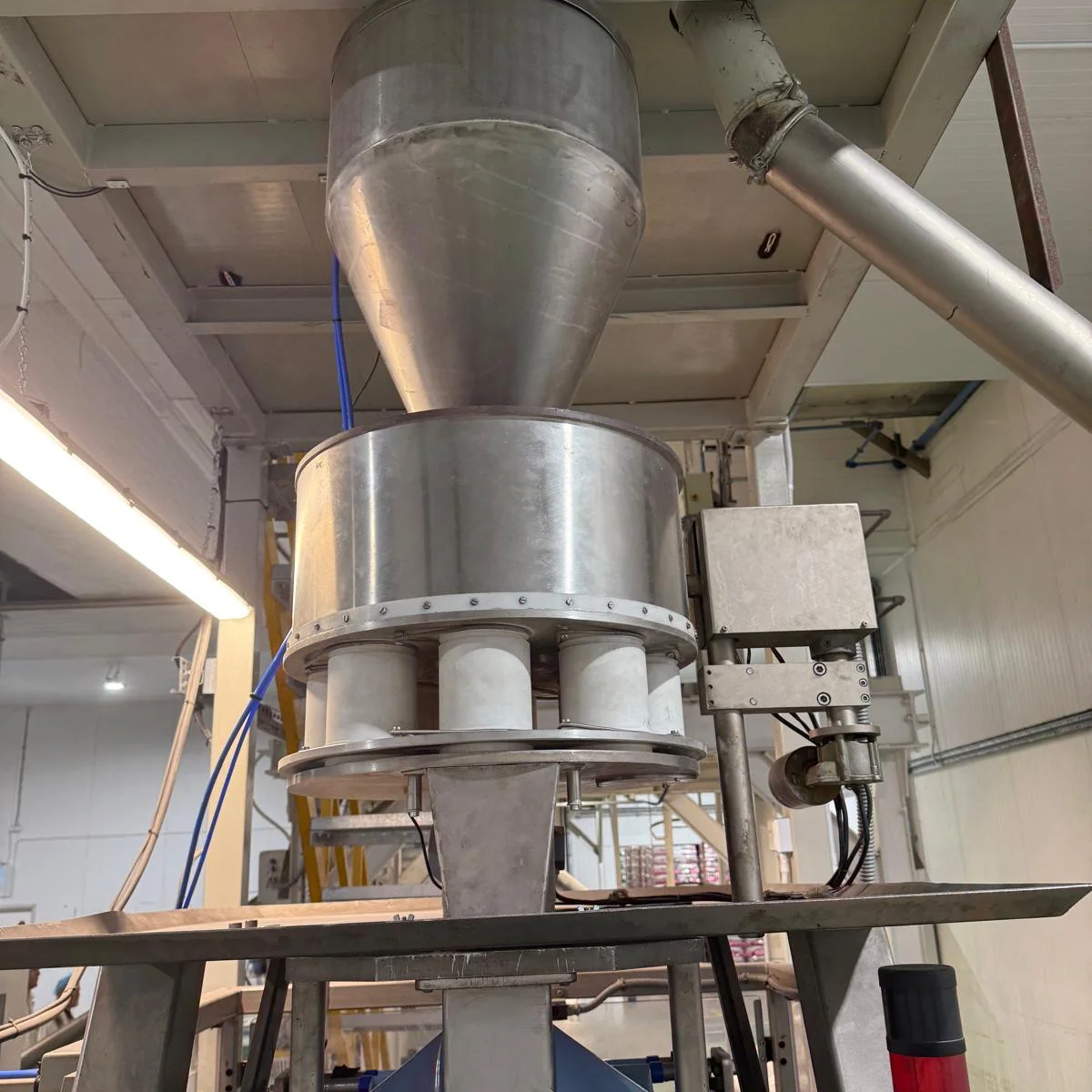

❇️ Volumetric cups for 500g, 1kg and 2kg volumes.

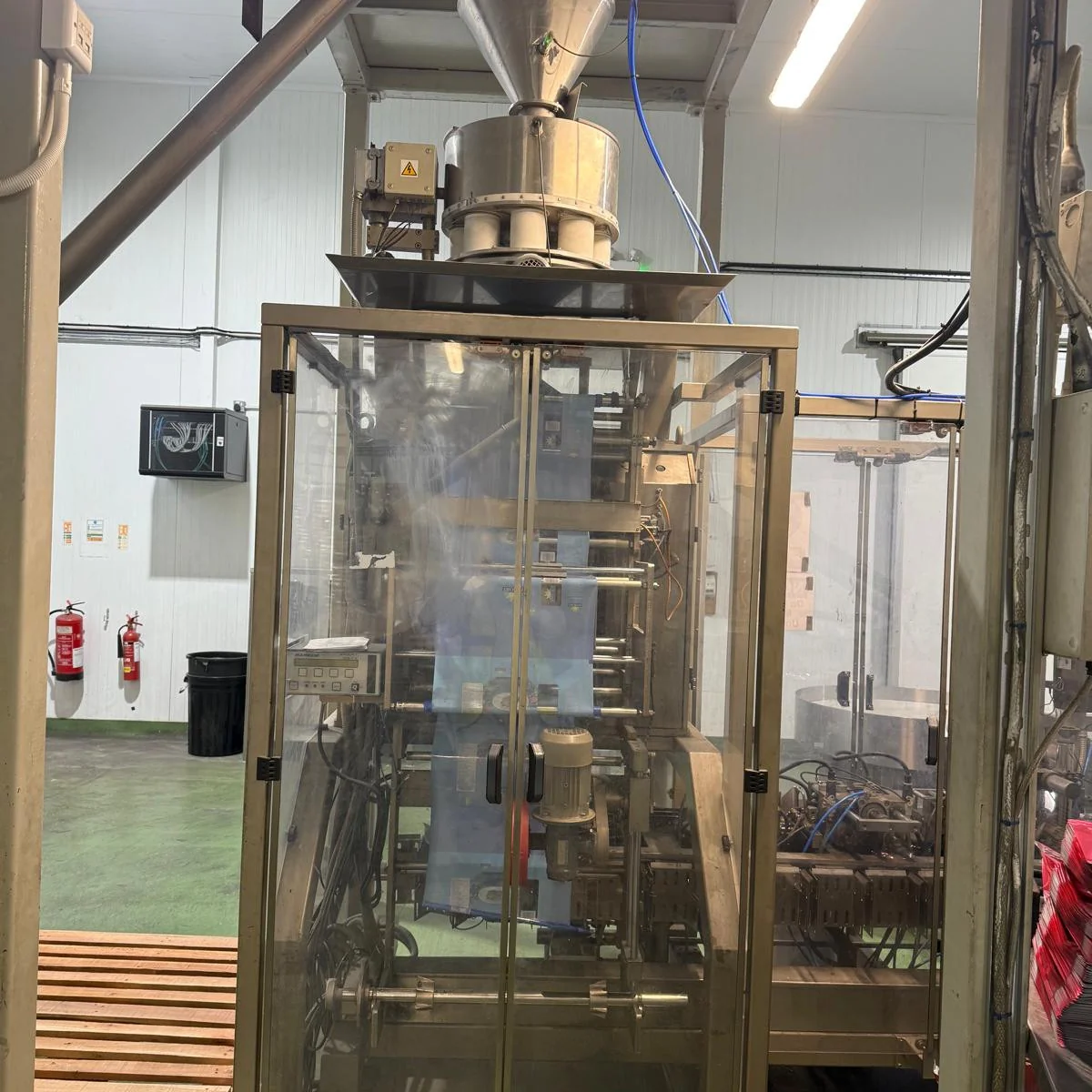

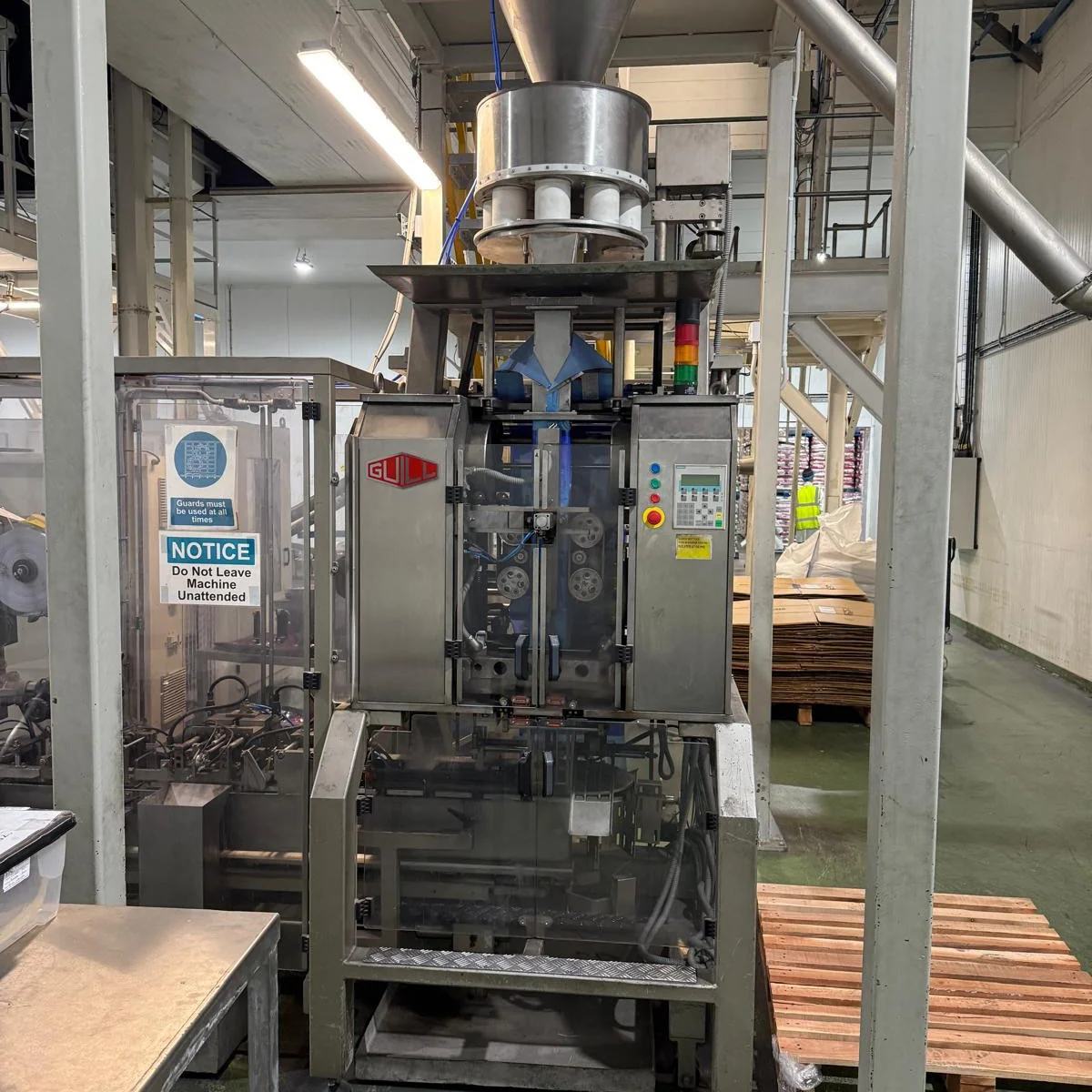

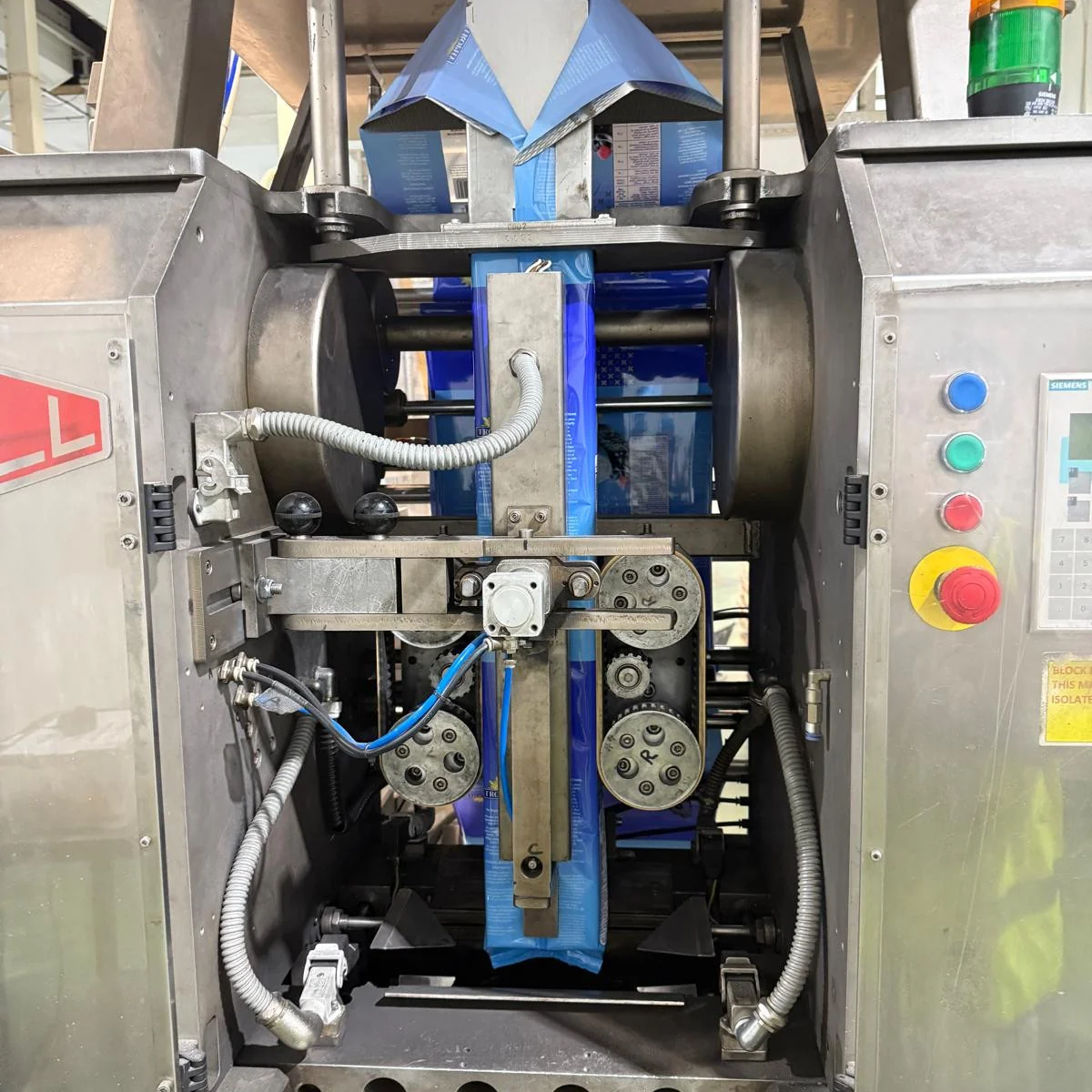

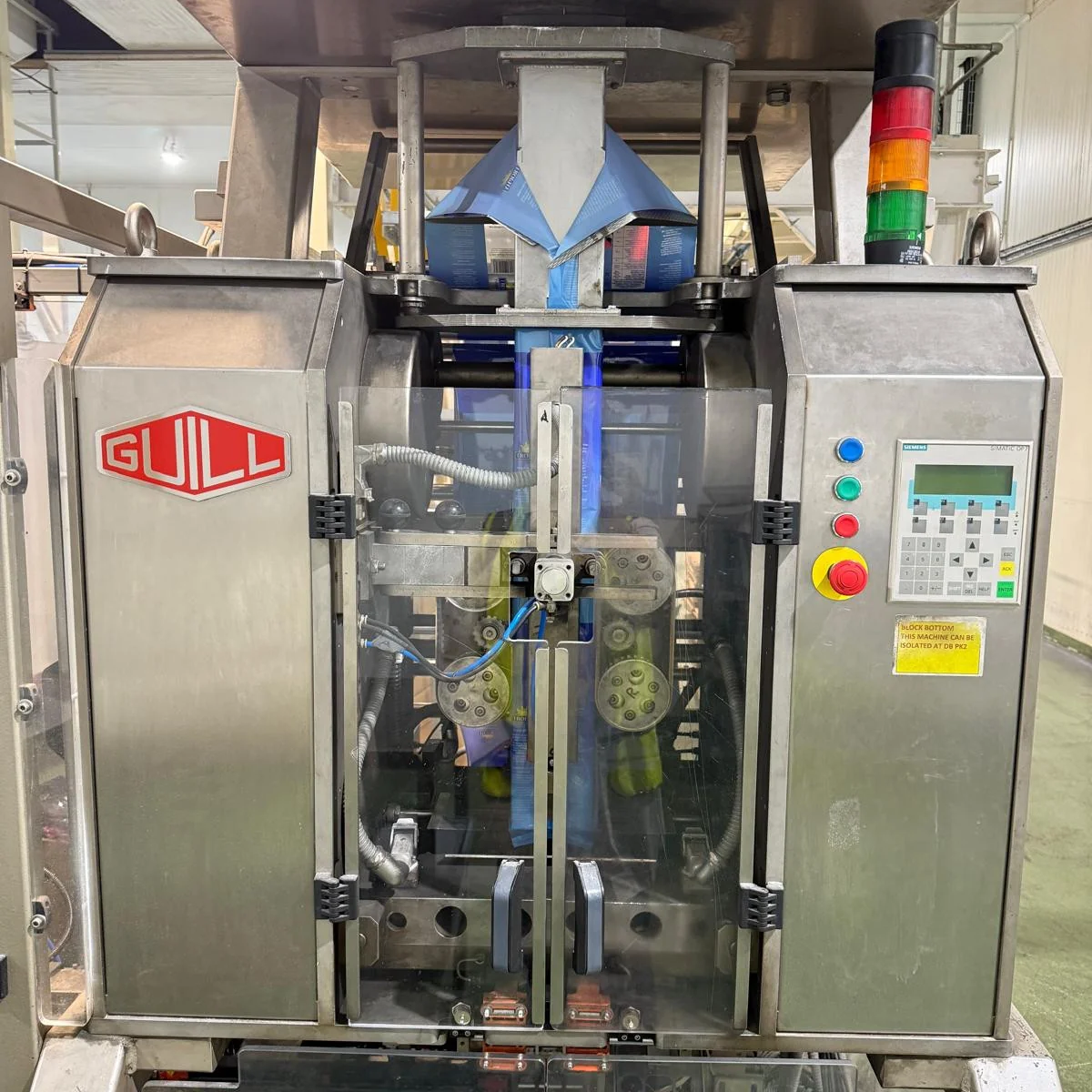

❇️ Guill Bagger - horizontal jaws 300mm wide. Vertical jaws 510mm. With SmartDate 2 coder / ribbon printer.

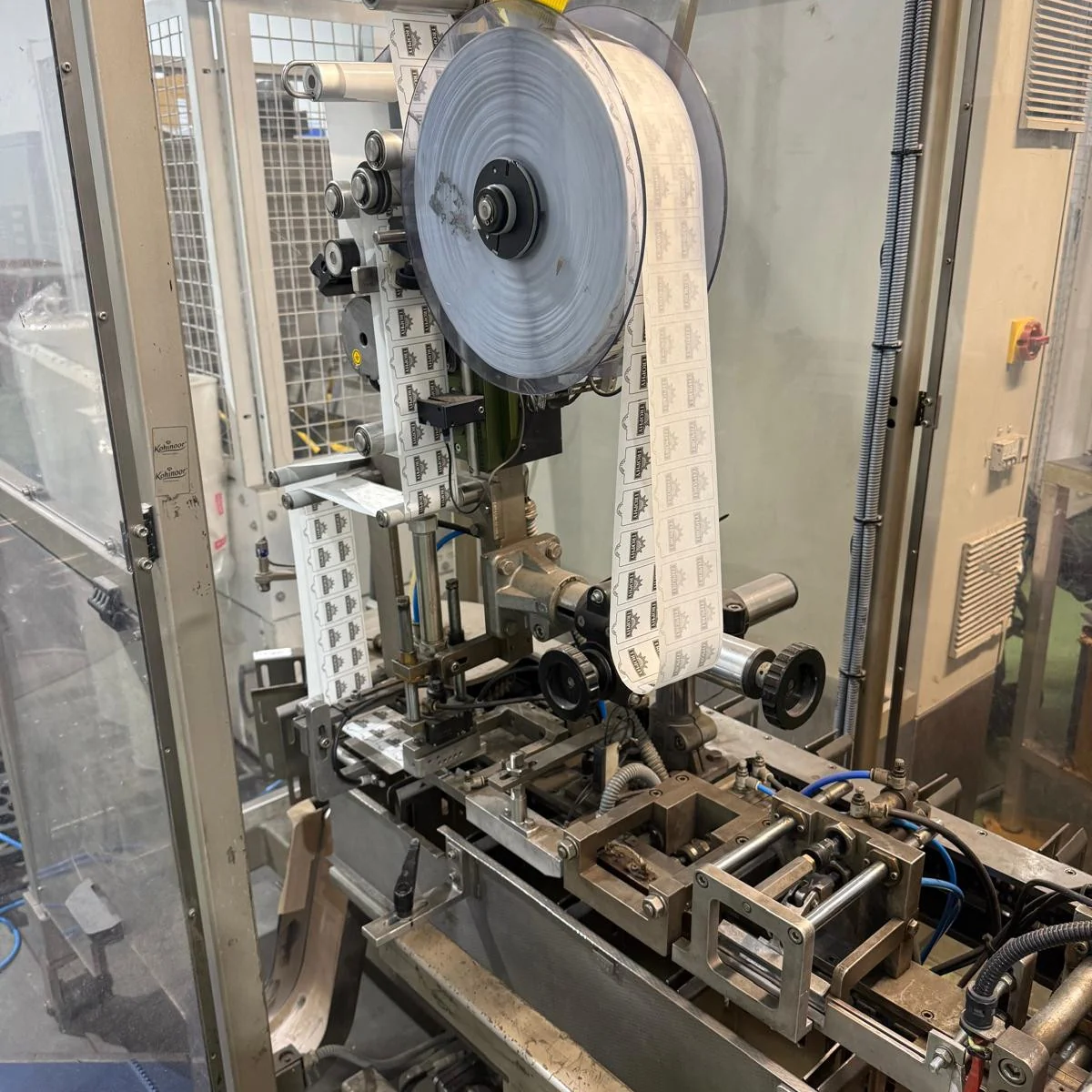

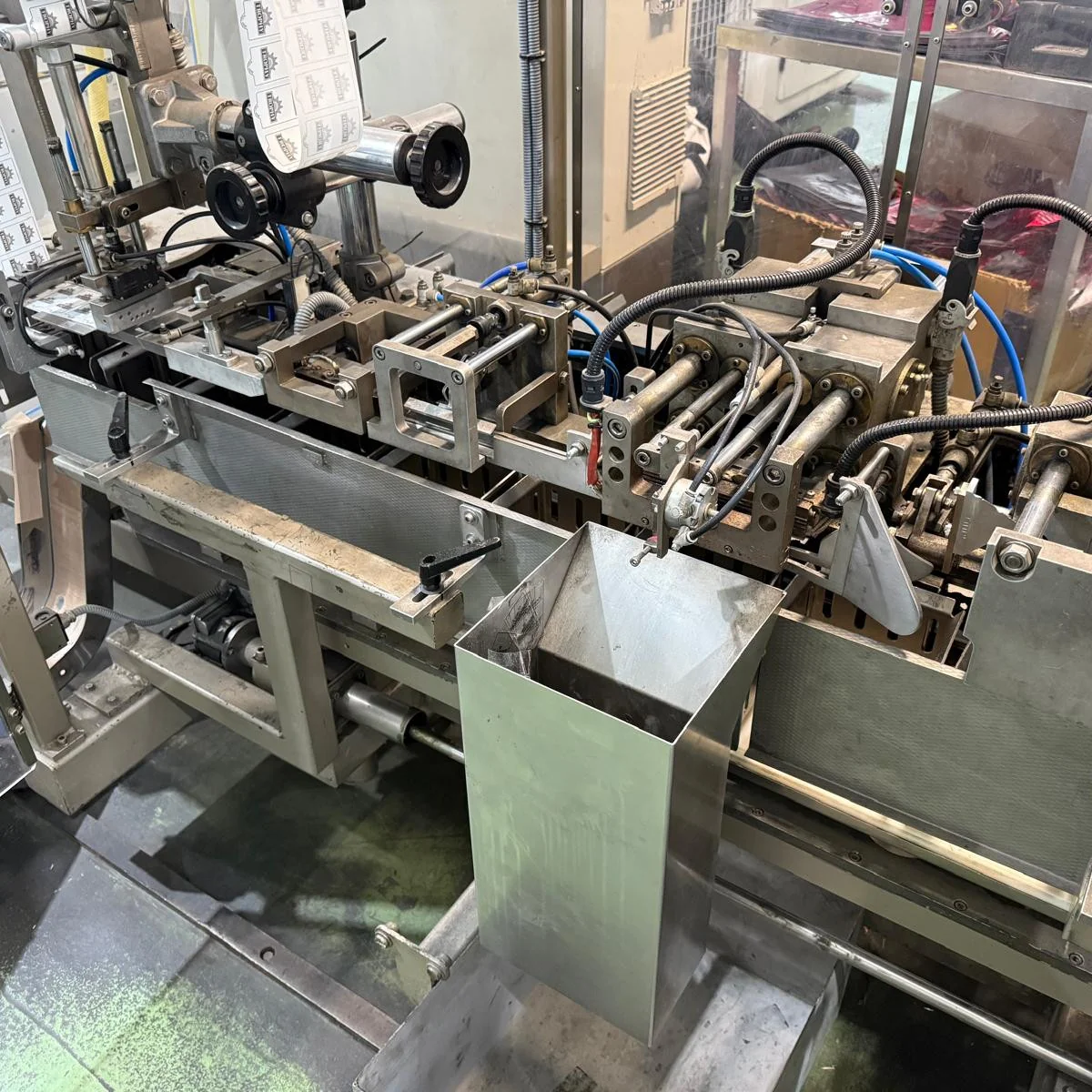

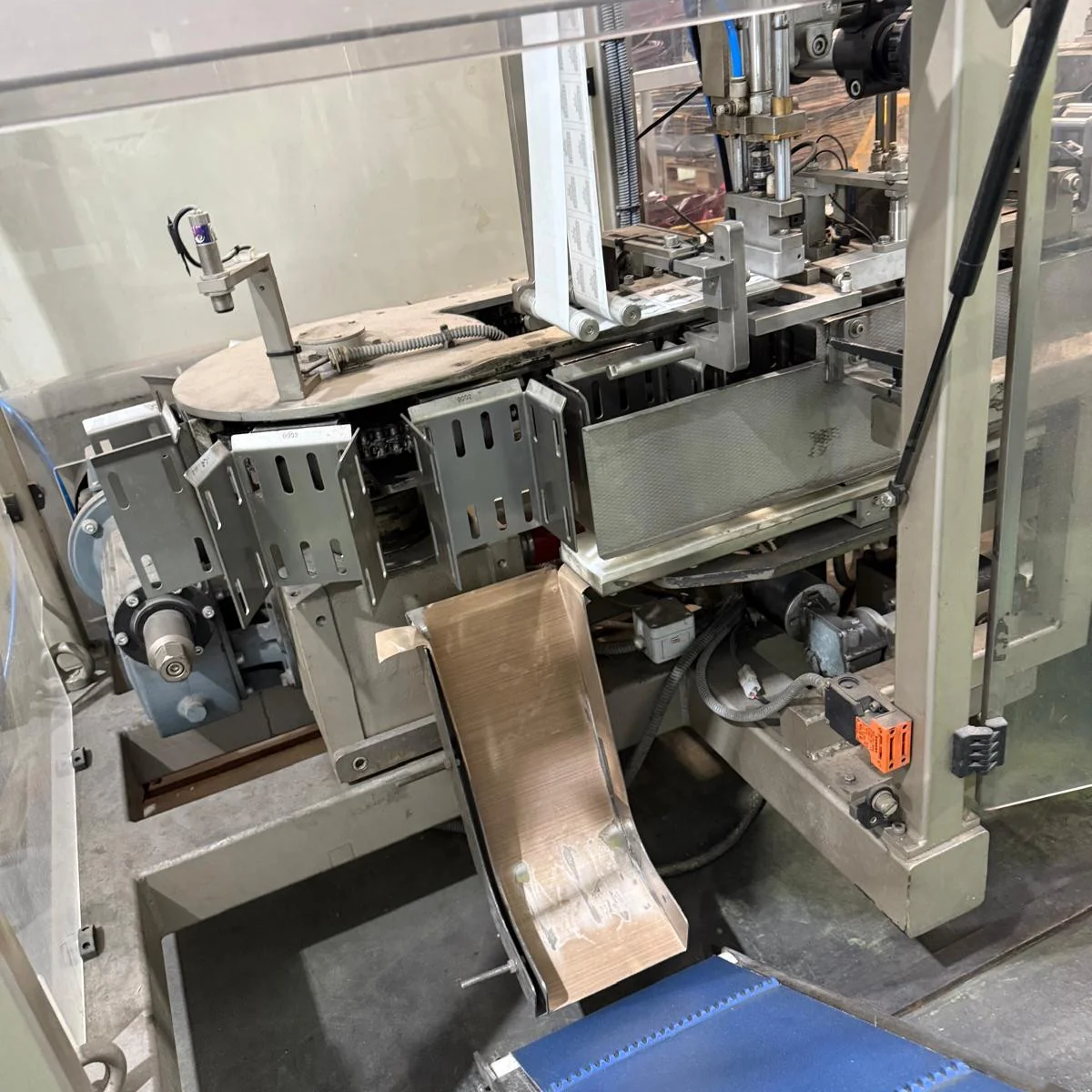

❇️ Cutting, second sealing, folding and labelling machine.

1️⃣ Pulls air out and folds

2️⃣ Cut and seal

3️⃣ Bends folds top of pack

4️⃣ Fold clamped and sealed

5️⃣ Label applied.

❇️ Electrical control box

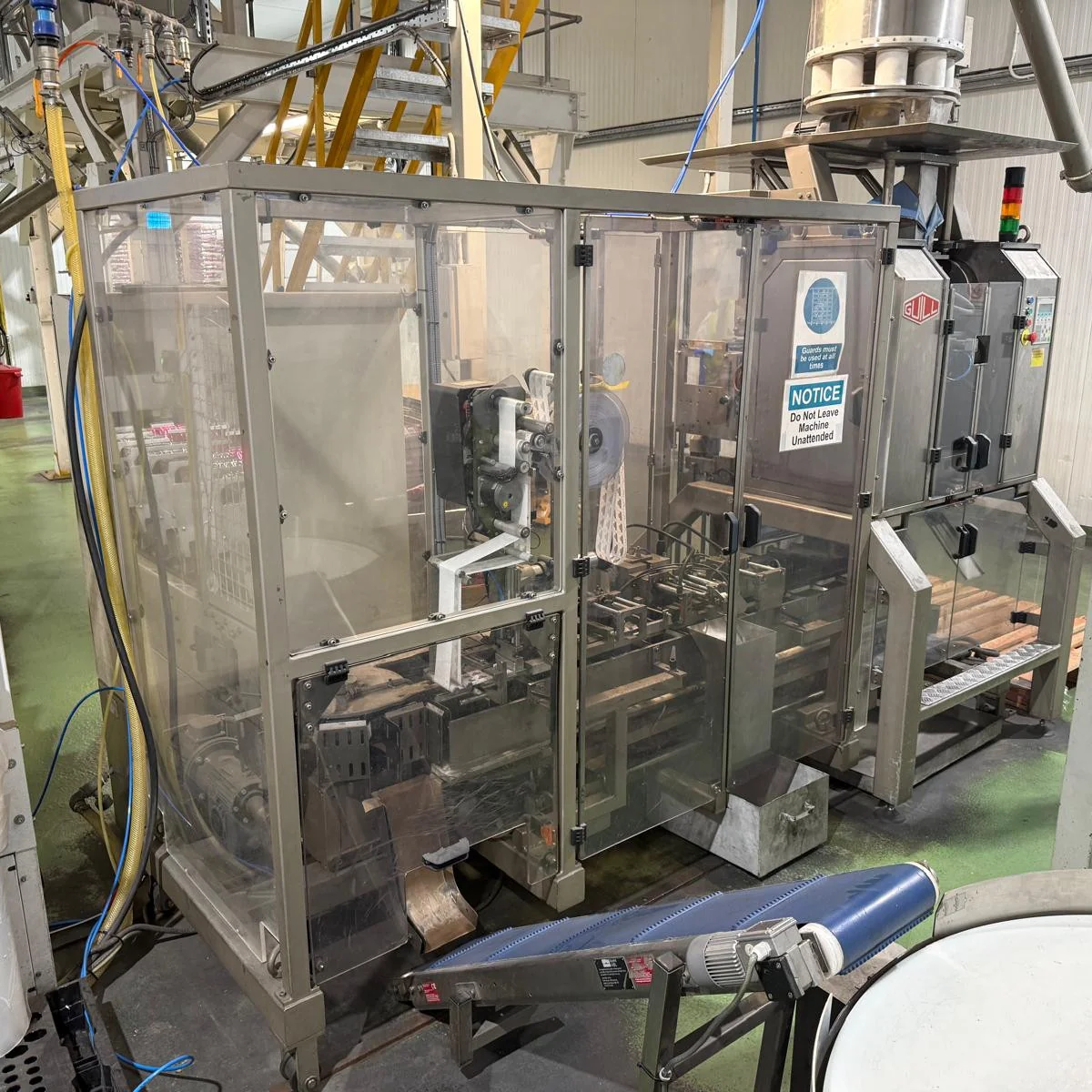

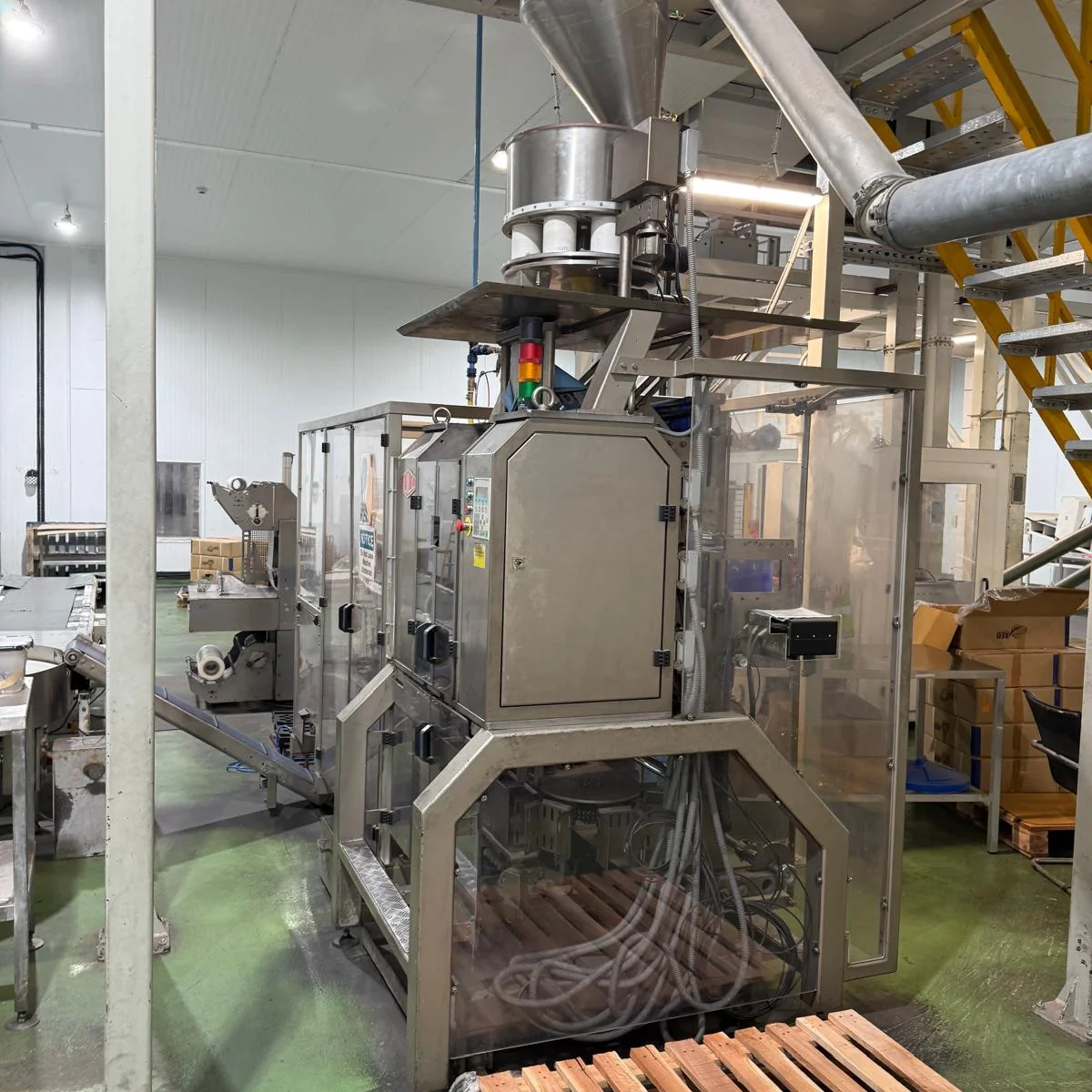

❇️Overall dimensions of above 3 machines - 3480mm long x 1700mm wide x 3650mm high.

Also supplied with:

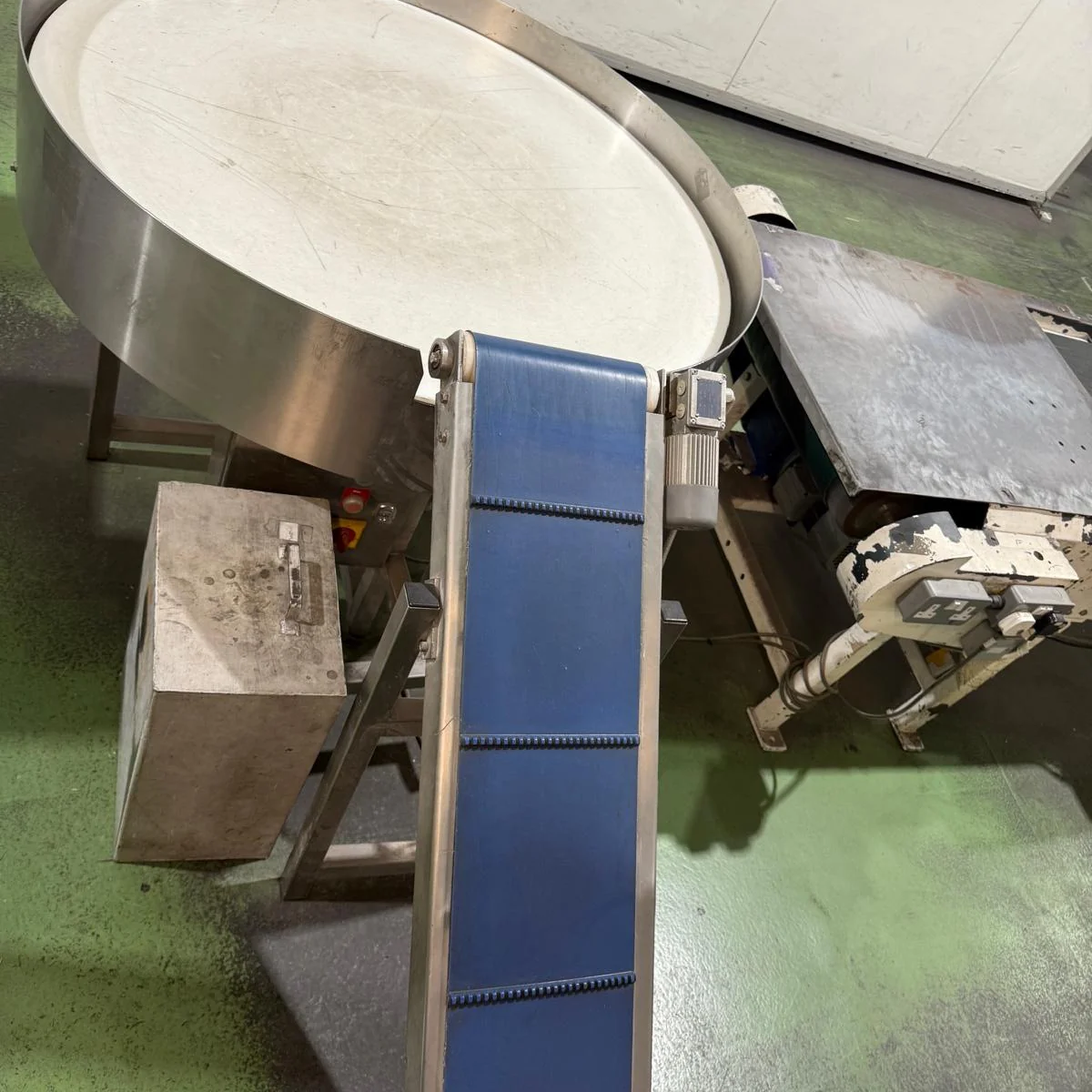

Outfeed conveyor. Let dimensions - 1550mn long x 250mm wide.

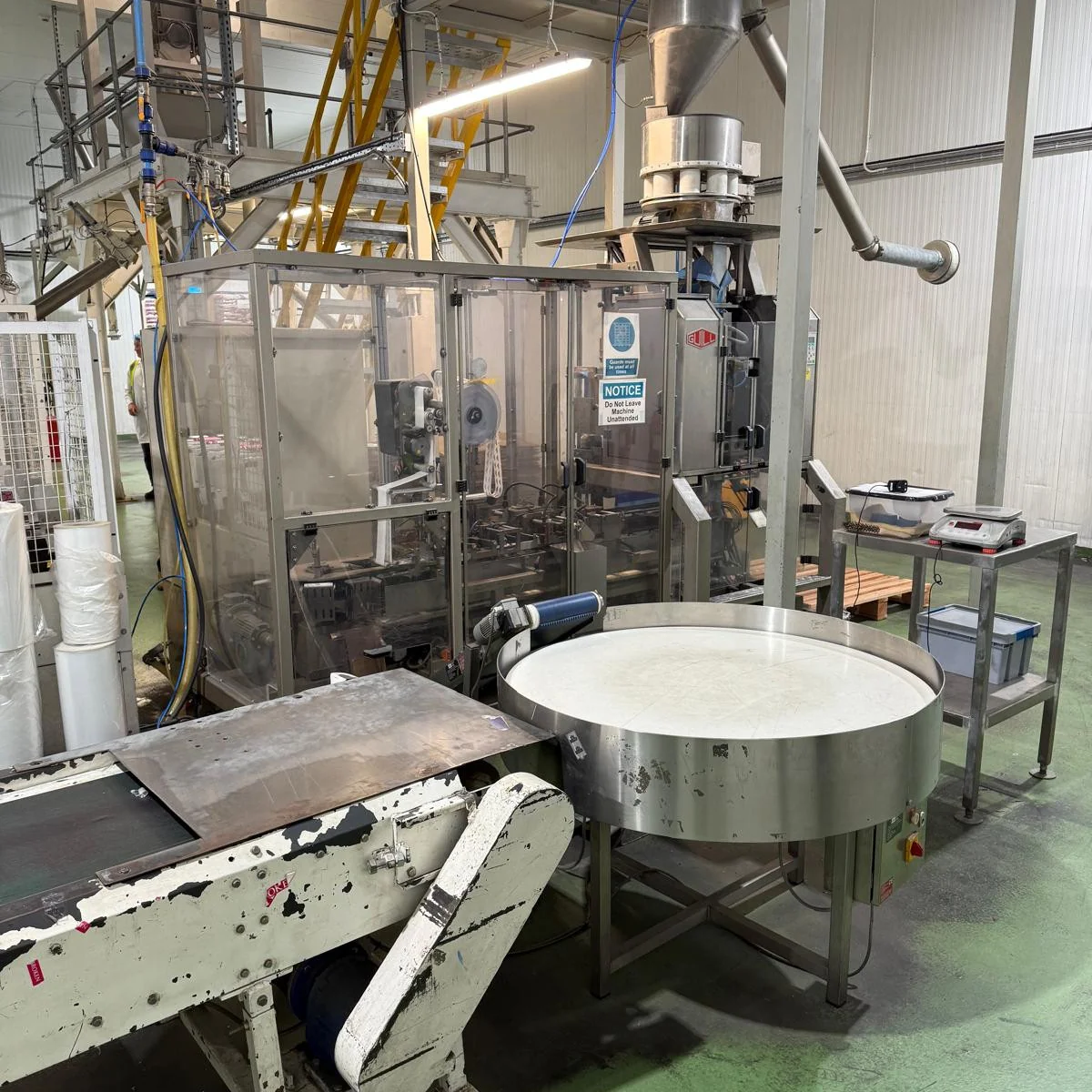

Lazy Susan, neoprene top. 1.23m diameter x 800mm operating height.

NOTES:
Last production run in June 2025.
Used for packing rice, could be ok for salt, sugar.
Have change parts for 500g, 1kg and 2kg rice.
Was being run at 38-40 packs per minute.
Complete with manuals and electrical diagrams.
Lots of spare small parts included - belt movers, rollers, etc.
