What is a 'dead man's handle' control?

A 'dead man's handle' control requires the operator to continuously hold a button or lever for the machine to operate. Releasing it immediately stops the machine, enhancing safety.

Why is stainless steel construction important for this equipment?

Stainless steel, particularly Grade 304, is crucial for food processing equipment due to its corrosion resistance, ease of cleaning, and hygienic properties, preventing bacterial growth and contamination.

What utilities are typically required for a tote bin washer?

Beyond the pneumatic air supply mentioned for this unit, most tote bin washers require a water supply (hot and cold), drainage, and often an electrical supply for pumps, heaters, and controls.

Can this unit be integrated into an automated line?

While this specific unit appears to be a standalone, manually operated tipper for washing, many industrial tote bin washers are designed for integration into automated conveying and processing lines.

What maintenance is typically involved with a tote bin washer?

Routine maintenance commonly includes checking and cleaning nozzles, filters, pumps, and seals, as well as inspecting pneumatic or electrical components for wear and tear.

Tote Bin Washer - Washing & Sanitizing Equipment, photo 1

Tote Bin Washer - Washing & Sanitizing Equipment, photo 2

Tote Bin Washer - Washing & Sanitizing Equipment, photo 3

Tote Bin Washer - Washing & Sanitizing Equipment, photo 4

Tote Bin Washer - Washing & Sanitizing Equipment, photo 5

Tote Bin Washer - Washing & Sanitizing Equipment, photo 6

Tote Bin Washer - Washing & Sanitizing Equipment

Available

Verified seller

Base Handling Ltd - Tote Bin Washer

Name: Tote Bin Washer
Brand: Base Handling Ltd
SKU: BTP/100/900/B
Availability: InStock

Price: Contact seller for price

BTP/100/900/B Tote Bin Washer

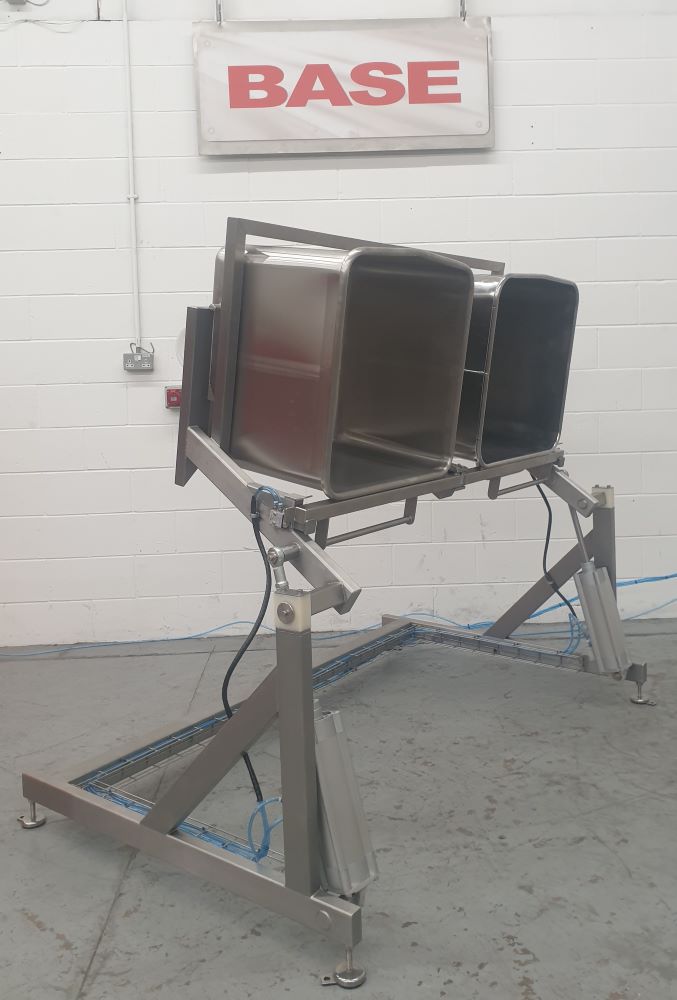

This Tote Bin Washer is a pneumatic tipper that is designed to lift and tip 2 off 200 Litre Stainless Steel Tote Bins at a height of 900mm and has a Safe Working Load of 100 Kgs.

The Tote Bin Washer was manufactured from Grade 304 stainless steel and is a TIG welded construction throughout.

The Tote Bin Washer is powered via a pneumatic air supply and cylinder tips the Tote Bins by the extension of a pair of cylinders to an angle of 10 degrees past the horizontal.

The Tote Bins are loaded from the front and then tipped towards the operator.

Once a bin has been loaded, the operator must position the retaining bar correctly which makes a pneumatic limit switch allowing the machine to operate.

Tote Bin Washer Control

The unguarded Tote Bin Washer has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pneumatic pushbutton must be held for the machine to operate.

As soon as the button is released, the Tote Bin Washer will stop.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Tote Bin Washer

Model No.

BTP/100/900/B

Tipping Height

900mm

Tipping Angle

100 Degrees

Machine Handing

Left Hand

Tipping Chute

Container Description

2 Off 200 Litre Stainless Steel Tote Bins

Base Arrangement

Bolted To The Floor

Pneumatic Cylinder

To Be Confirmed

IP Rating

IP65

Lifting Capacity

100 Kgs

Stock Number

BTP/100/900/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Cleaning and sanitising Eurobins (tote bins) in meat processing facilities.
Washing bins used for ingredients or waste in bakeries and confectionery plants.
Sanitising containers in dairy processing for hygiene compliance.
Cleaning bins in fruit and vegetable processing lines to remove residues and contaminants.

Typical capacity: Units of this class are typically designed to handle standard 200-litre Eurobins, often in batches or sequentially.
Power supply: This unit is pneumatically powered, requiring a compressed air supply. Other models commonly use electrical power (e.g., 400V, 3-phase) for pumps and conveyors.
Construction material: Typically manufactured from Grade 304 stainless steel for hygiene and corrosion resistance in food environments. Grade 316 is sometimes used for higher corrosion resistance.
Cleaning method: Commonly employs high-pressure jets, rotating nozzles, or brush systems with heated water and detergents/sanitisers.
Throughput: Throughput varies significantly; smaller units might process 10-20 bins per hour, while industrial systems can handle upwards of 100+ bins per hour.
Footprint: The footprint for a standalone tote bin washer can vary, typically requiring several square metres of floor space, depending on automation level and capacity.
Water consumption: Water consumption is a key operational cost; units often feature recirculation systems to minimise usage, typically consuming 5-20 litres per bin for fresh rinse.

A 'dead man's handle' control requires the operator to continuously hold a button or lever for the machine to operate. Releasing it immediately stops the machine, enhancing safety.

For food processing washing and sanitizing equipment, buyers typically value durability, ease of cleaning, and compliance with hygiene standards. Industry sentiment emphasizes the importance of verifying spray patterns, material quality, and maintenance history when purchasing used units. Stainless steel construction and reliable pump performance are considered key strengths. Buyers should check for corrosion, seal condition, and documentation of regular servicing to ensure food safety compliance.
