What are the benefits of ultrasonic sealing?

Ultrasonic sealing creates strong, airtight seals without heat, which can be beneficial for heat-sensitive products or specific film types. It also often results in cleaner seals and reduced energy consumption compared to thermal sealing.

Can this machine handle different bag sizes?

Yes, VFFS machines like this are designed to handle a range of bag sizes by changing forming tubes and adjusting settings. The maximum bag width is typically limited by the jaw width and sonitrode.

Is this type of machine suitable for a wet room environment?

Units specified for the food industry, particularly those with stainless steel construction and appropriate electrical enclosures, are commonly designed to operate in wet or washdown environments.

What kind of maintenance is typically required?

Routine maintenance for VFFS machines includes checking and replacing wear parts, lubrication, cleaning, and calibration of sensors and sealing components. Regular servicing ensures optimal performance and longevity.

What is an auto-splicer?

An auto-splicer automatically joins a new roll of film to an expiring one without stopping the machine, significantly reducing downtime and increasing operational efficiency.

used Equipment

Available

Verified seller

UVA Packaging Lima-C 320 Ultrasonic Series

Name: UVA Packaging Lima-C 320 Ultrasonic Series
SKU: 1742
Availability: InStock

Price: Contact seller for price

Manufacturer: UVA Packaging
Model: Lima-C 320 Ultrasonic Series
Category: Form Fill & Seal
Year: 2012
Status: For Sale
Machine Notes:
2 x UVA Lima-C 320 Ultrasonic Series Continuous VFF&Seal Baggers
Purchased new in late 2012 and installed into production in 2014.
These machines ran very successfully until September 2018 when they were moved into storage.

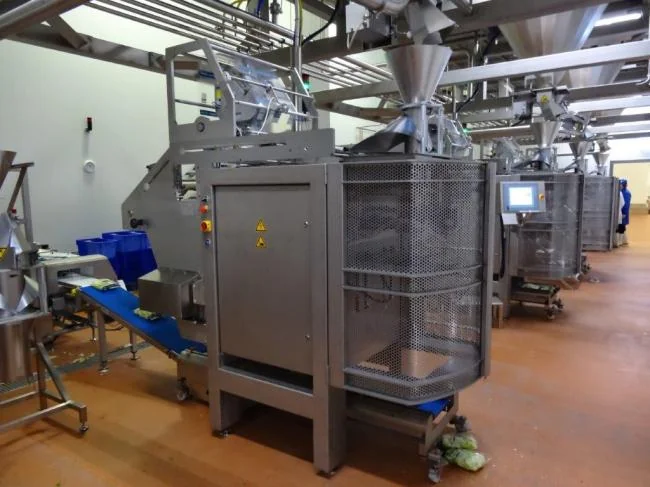

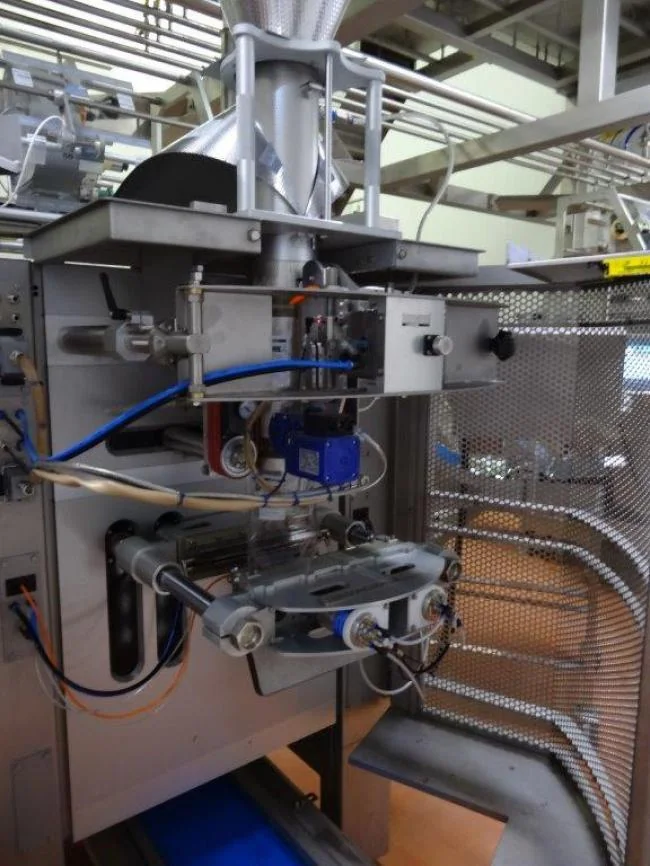

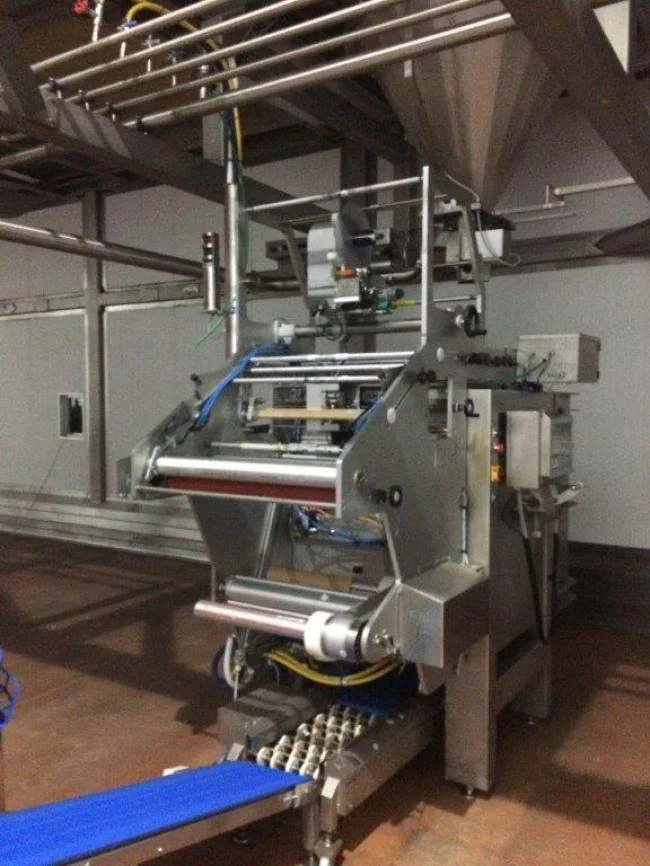

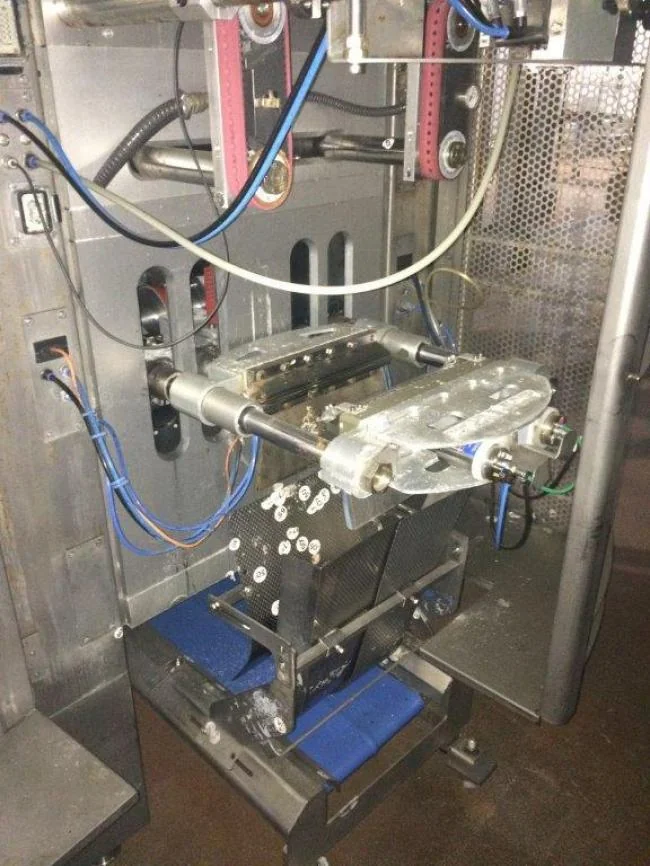

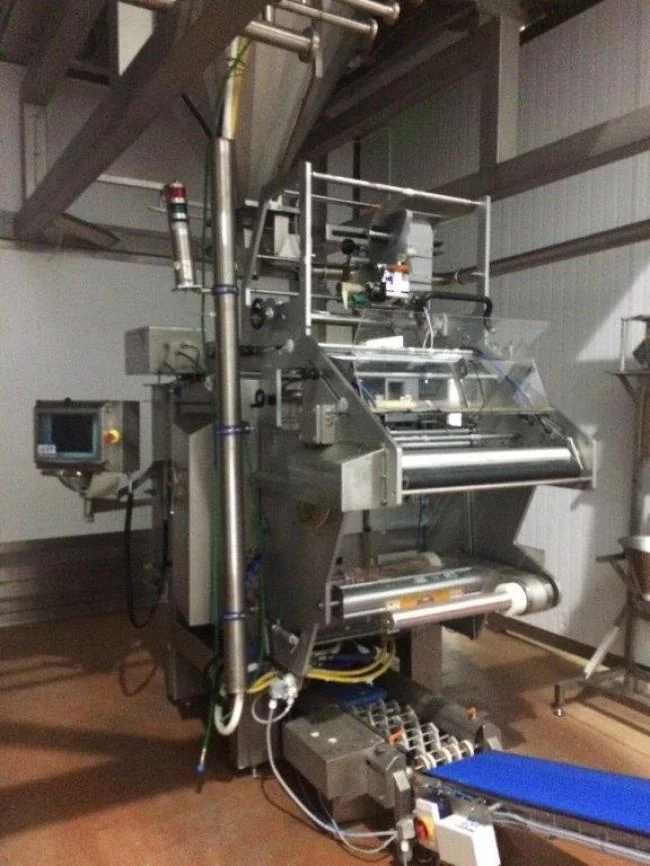

Photos show the machines when originally installed and as they are now in storage.

Machine Specifications:

Lima C 320 continuous motion machine with upgraded jaw movement mechanism (thicker shafts etc).
Hermann Ultra Sonic system fully integrated
Laser cut Stainless steel doors
Autosplicer with tail cut functionality
Avery Dennison ALS104 labeller (removable if not needed)
Smartdate 5 date coder printer
Dansensor Gas analyser
Frame (removable) with Under machine outfeed belt
Wonderware prepared and Ethernet connectivity
They are based on a 320mm jaw width but the US sonitrode limits the max bag width to 310mm.
They were running at 180mm, 220mm and 300mm bags.

These are very high spec. machines for the food industry and include:
Sonic Sealing Technology
Autosplicing,
Date coder printers,
Gas analysers,
Labeller units,
Forming tubes,
Forming tube storage stand,
Take away conveyors
Machine pedestal frame.

They were previously used in a wet room environment for packing salad leaves.
The machines are available immediately for sale and are excellent value.
Location: UK

Please contact James Jordan on or Email: james@ for further details.

Essex, United Kingdom

5,774 km away

Product Specifications

Manufacturer: UVA Packaging Model: Lima-C 320 Ultrasonic Series Category: Form Fill & Seal Year: 2012 Status: For Sale Machine Notes: Machine Notes 2 x UVA Lima-C 320 Ultrasonic Series Continuous VFF&Seal Baggers: Purchased new in late 2012 and installed into production in 2014.These machines ran very successfully until September 2018 when they were moved into storage.Photos show the machines when originally installed and as they are now in storage. Machine Specifications: Machine Specifications Please contact James Jordan on +44(0)7732 505 229 or: Please contact James Jordan on +44(0)7732 505 229 or Email [email protected] for further details.: Please enter your email address in the box below and we will send you the details of this machine. By ticking the following consent opt-in box, you are confirming that you consent to us storing your email address in our database to be used as described in our Privacy Policy. I confirm consent

Stock Number

1742

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Packaging fresh produce such as salad leaves and other delicate items.
Forming, filling, and sealing bags for various food products requiring a hermetic seal.
Handling products that benefit from gas flushing for extended shelf life.
Automated packaging lines in medium to large-scale food processing operations.

Typical Specifications

Typical throughput: For this class of continuous motion VFFS machine, speeds can typically range from 60 to over 120 bags per minute, depending on bag size and product characteristics.
Bag width capability: Units of this type commonly accommodate bag widths up to approximately 310-320mm when utilising ultrasonic sealing.
Power supply: Typically requires a three-phase electrical supply, commonly 400V, 50Hz, with appropriate amperage for industrial machinery.
Sealing technology: This series is noted for its ultrasonic sealing, which provides strong, hermetic seals without heat, suitable for certain film types and products.
Integrated features: High-spec units commonly include features such as auto-splicers, date coders, gas analysers, and labelling units for comprehensive packaging solutions.
Construction materials: Typically constructed from stainless steel, especially in areas contacting product or in wet room environments, to meet hygiene standards.

Frequently Asked Questions

Ultrasonic sealing creates strong, airtight seals without heat, which can be beneficial for heat-sensitive products or specific film types. It also often results in cleaner seals and reduced energy consumption compared to thermal sealing.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
