new Equipment

Available

Beldos - Beltop UNO 275 Volumetric Depositor

Price: $ 8,900

Beltop UNO 275

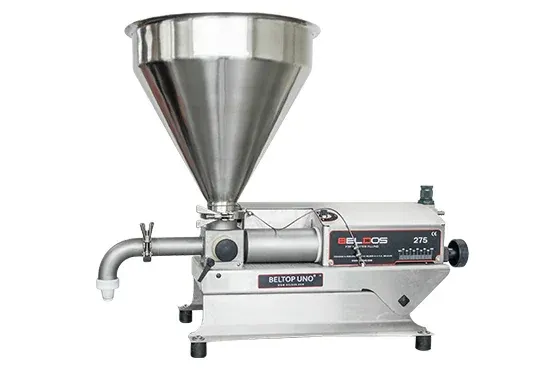

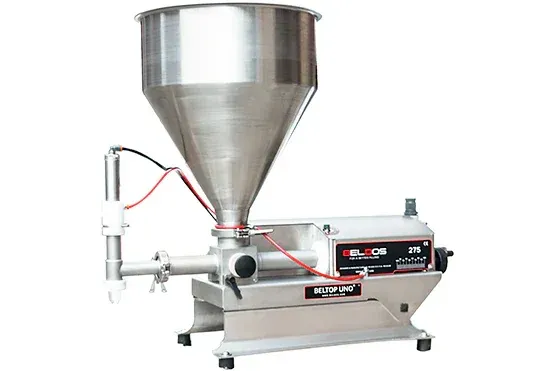

The Beltop UNO 275 is a versatile volumetric stainless steel depositor mounted on a compact non-adjustable frame.

Available with 18 litre or 25 litre conical or vertical hoppers.

Two operation modes: foot pedal and handgun switch.

Capable of up to 120 deposits per minute with 100% portion control (1% deviation). Deposit range of 5–275ml with five cylinder sizes available (28mm, 40mm, 52mm, 70mm).

Handles particles up to max 2.5cm diameter. Stainless steel rotation cylinder.

Suitable for both sweet and savoury products from -8°C to +120°C.

Applications include depositing of cake batter, muffins, jam, jelly, fruit filling, cream, mousse, meringue, ice-cream, yoghurt, soup, sauce, mashed potatoes, minced meat, and salad, as well as injection of éclairs, Berliners, and profiteroles.

Tool-free assembly, easy to use and fast to clean. More than 60 nozzles available.

Washington, United States

Distance: 12,311 km away

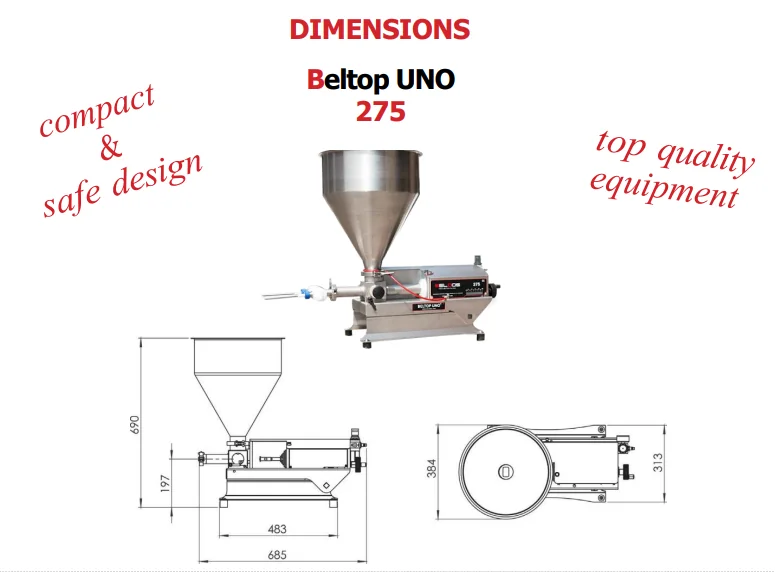

Length

68.5 cm

Width

31.3 cm

Height

69 cm

Deposit Range

5–275ml

Speed

Up to 120 deposits/min

Portion Accuracy

1% deviation

Power

Air: 29 l/min at 30 deposits/min, 7 Bar / 102 PSI

Construction

Stainless steel

Hoppers

18l / 25l, conical or vertical

Cylinder Sizes

28mm (5–40ml), 40mm (10–86ml), 52mm (30–151ml), 70mm (100–275ml)

Max Particle Size

2.5cm

Product Temperature Range

-8°C to +120°C

Operation Modes

Foot pedal, handgun switch

Assembly

Tool-free

Nozzles

More than 60 available

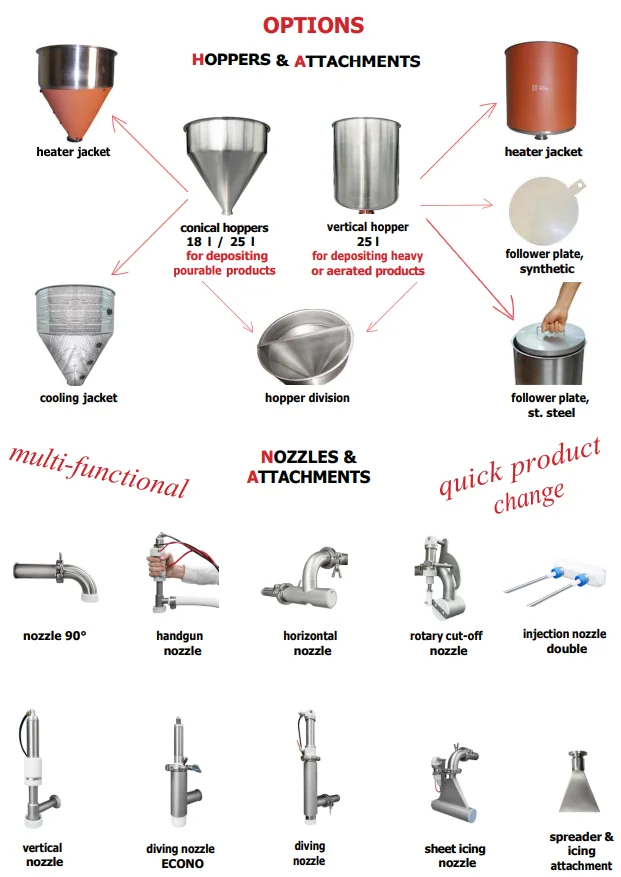

Optional Attachments

Heater jacket, cooling jacket, hopper division, follower plate (synthetic or stainless steel), vertical hopper 25l

Nozzle Types

90°, handgun, horizontal, rotary cut-off, injection double, vertical, diving ECONO, diving, sheet icing, spreader & icing attachment

Year of Manufacture

2026
