Complete Gainsborough GV5 Packing System

Complete powder packing system for manufacturing and filling bags up to 25kg. The plant was purchased in 2017/2018 and has never been installed. The system comprises of the following equipment:

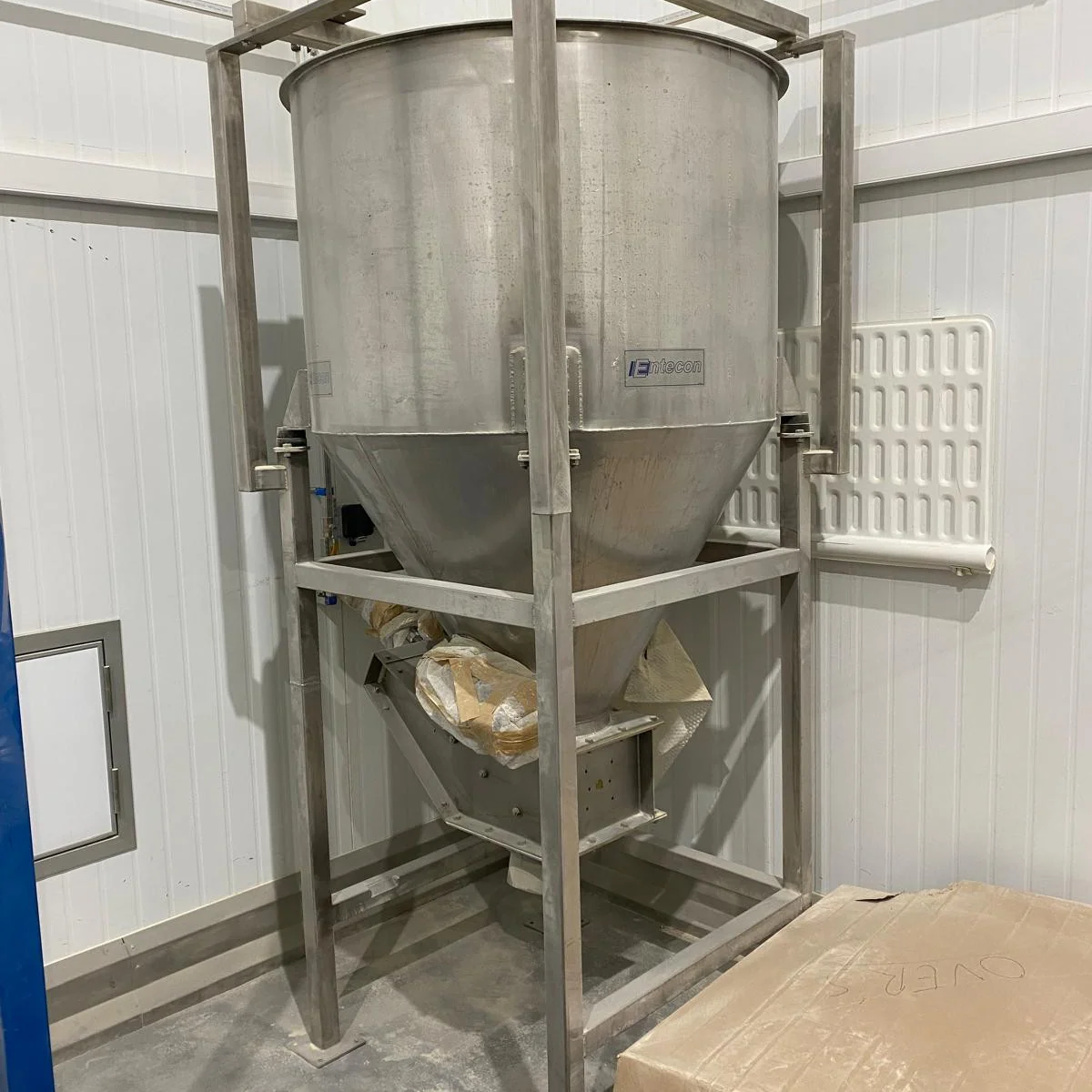

1 x Entecon 1000L stainless-steel powder storage tank.

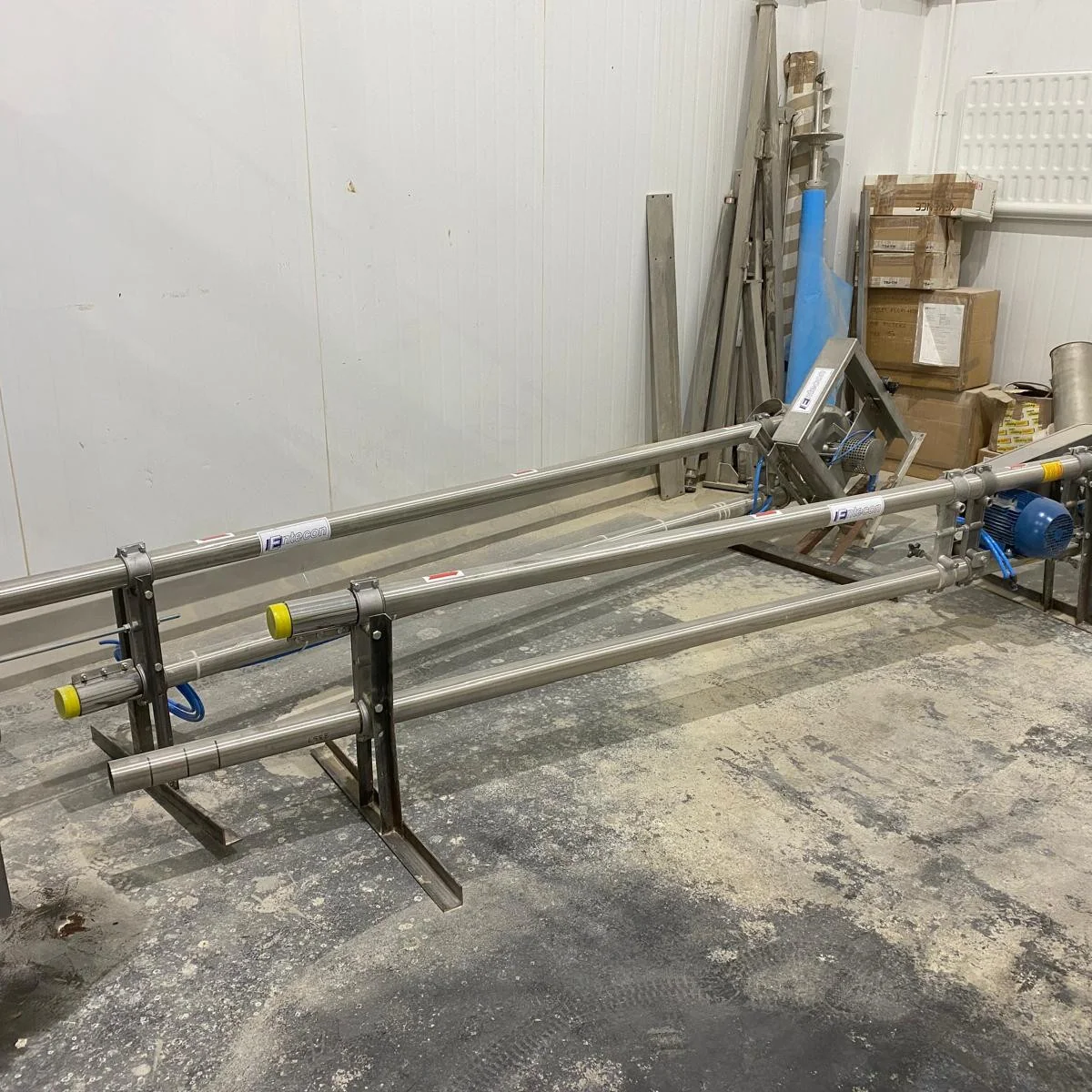

1 x Entecon AMC blower conveyor with control box.

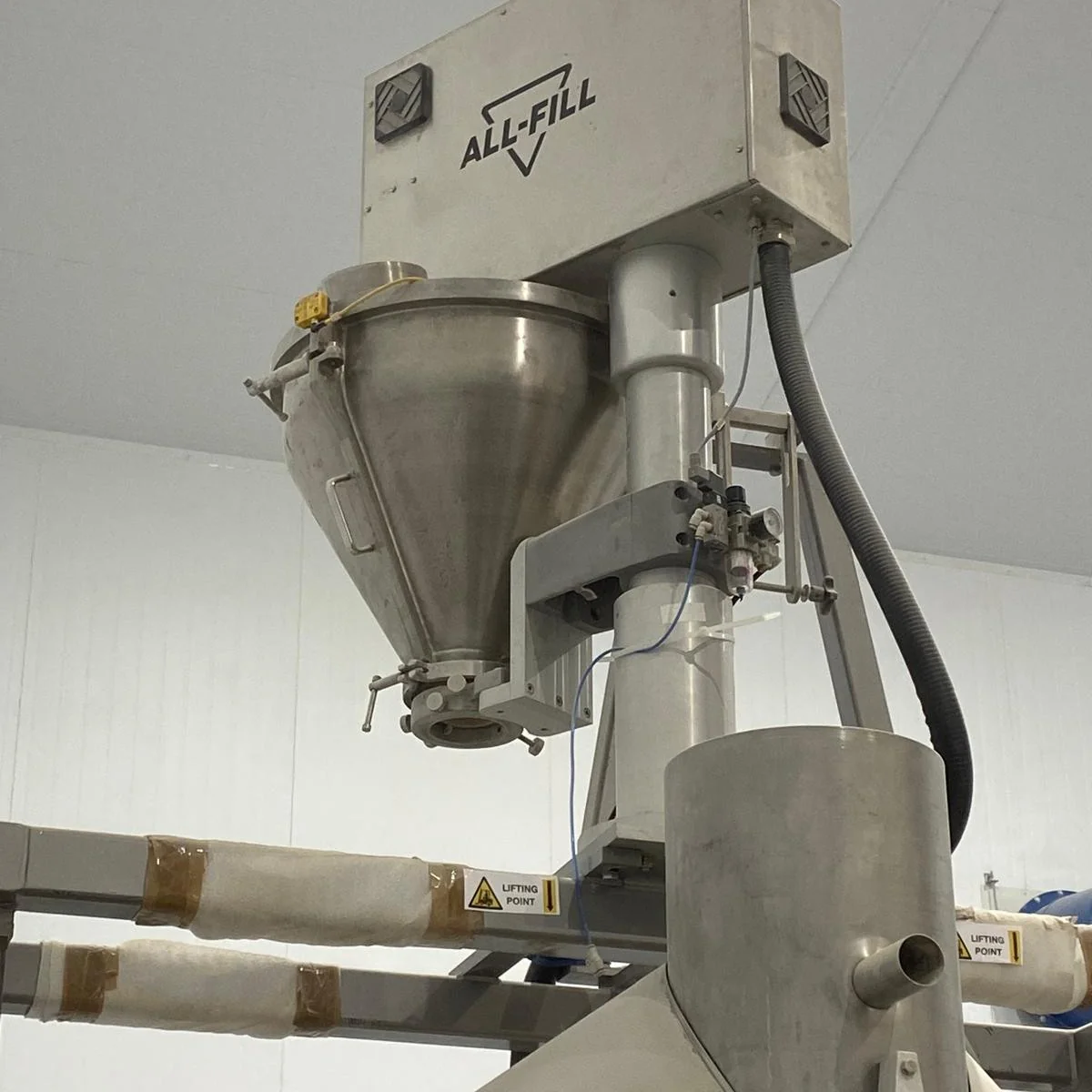

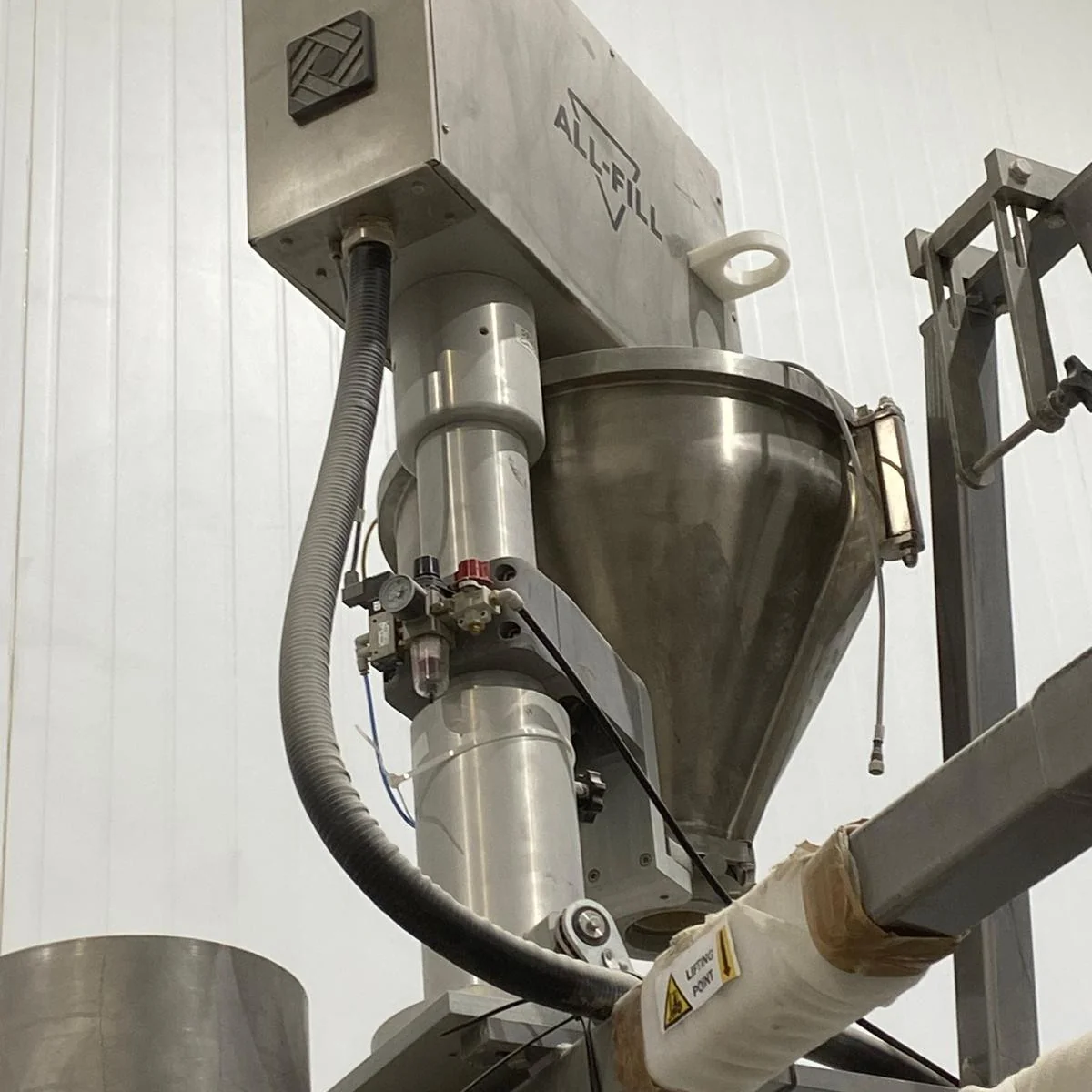

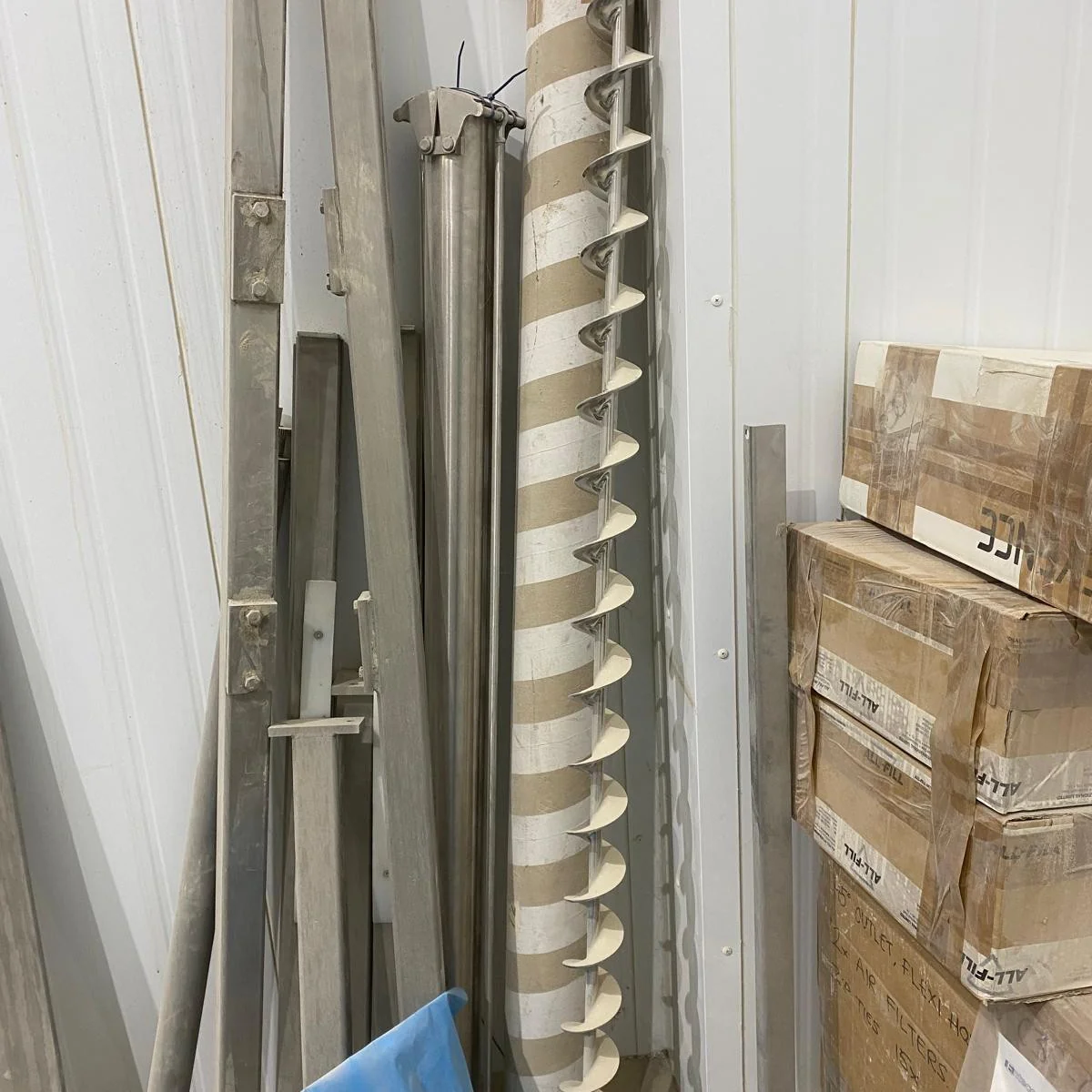

1 x All-Fill S10 powder filler with agitator and outfeed (2017).

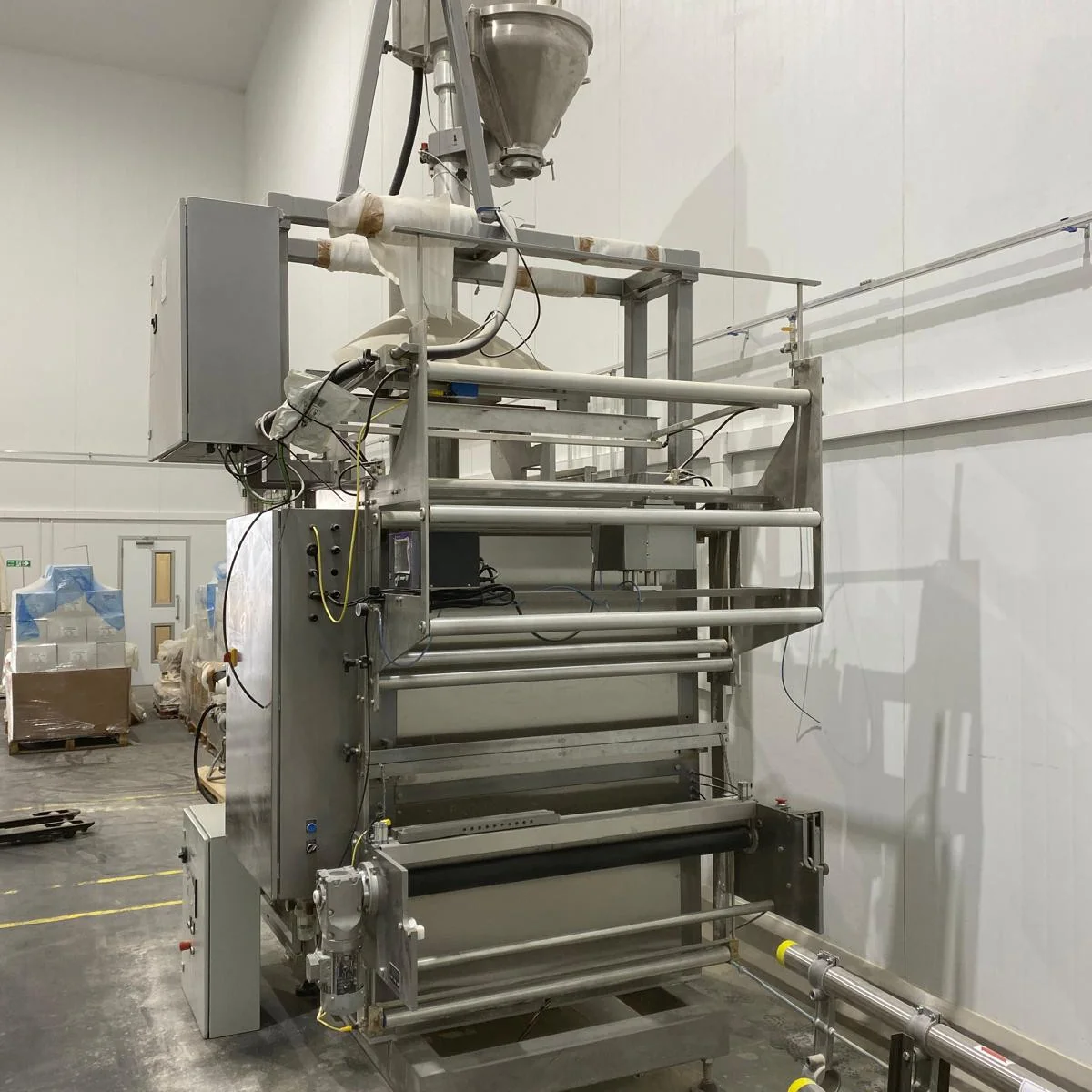

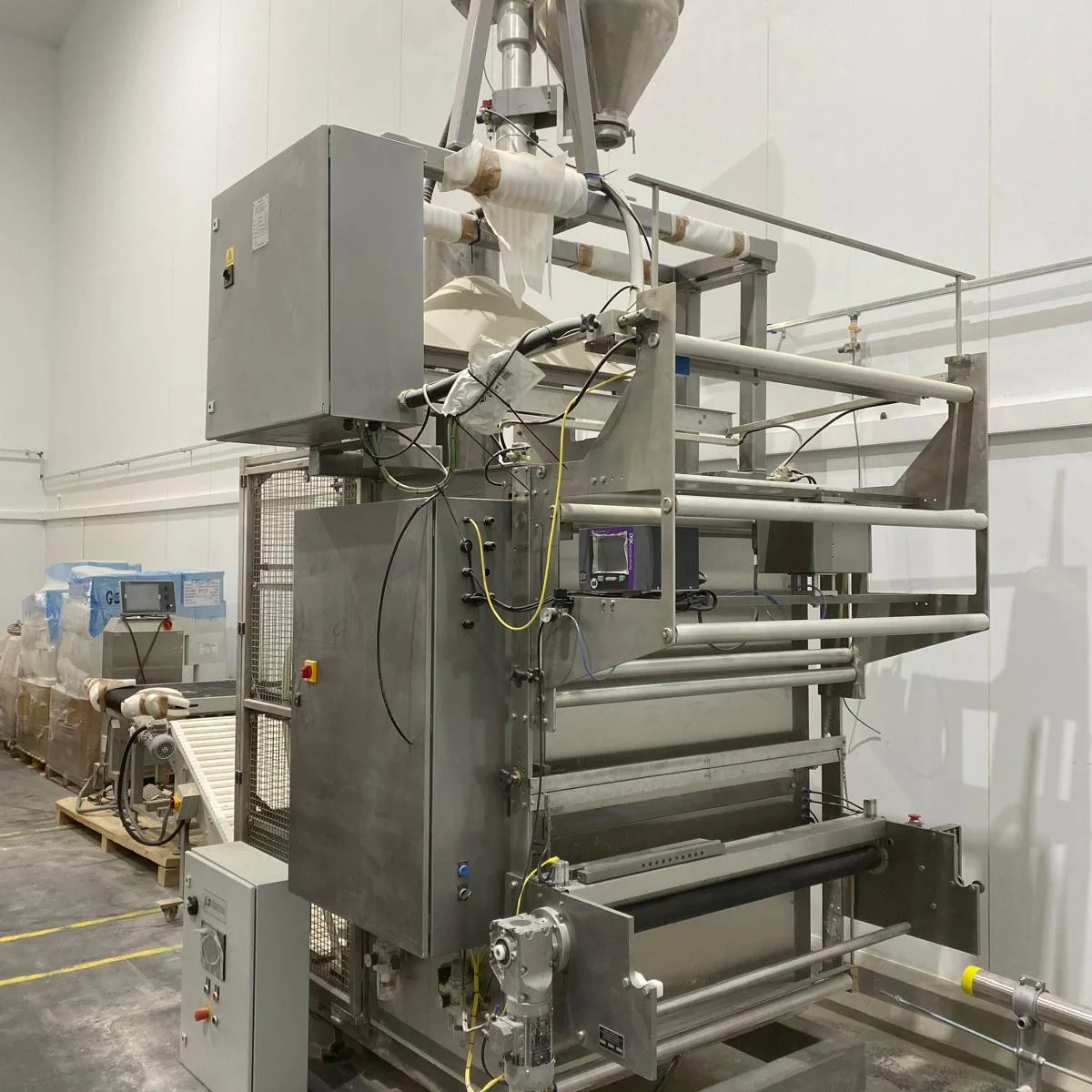

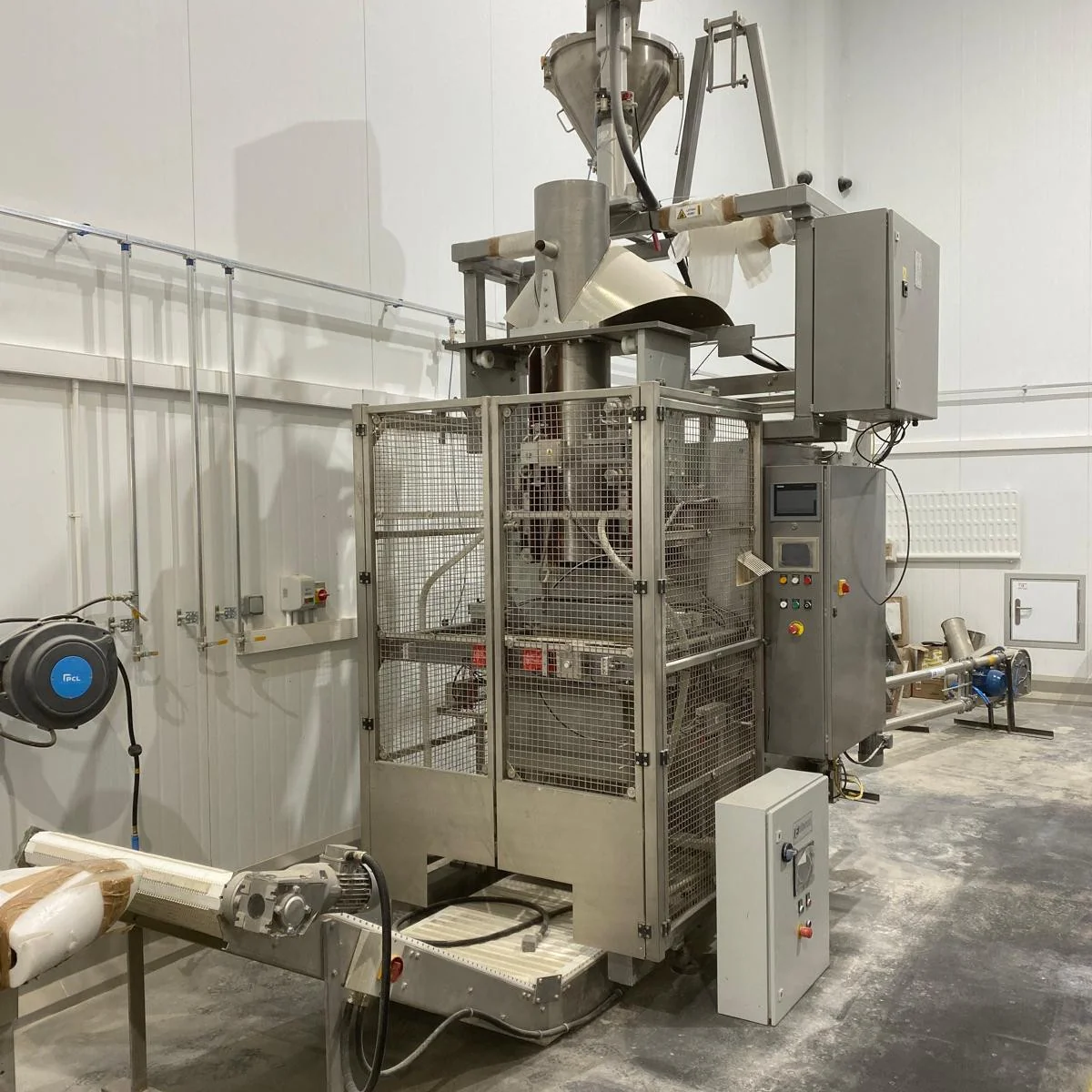

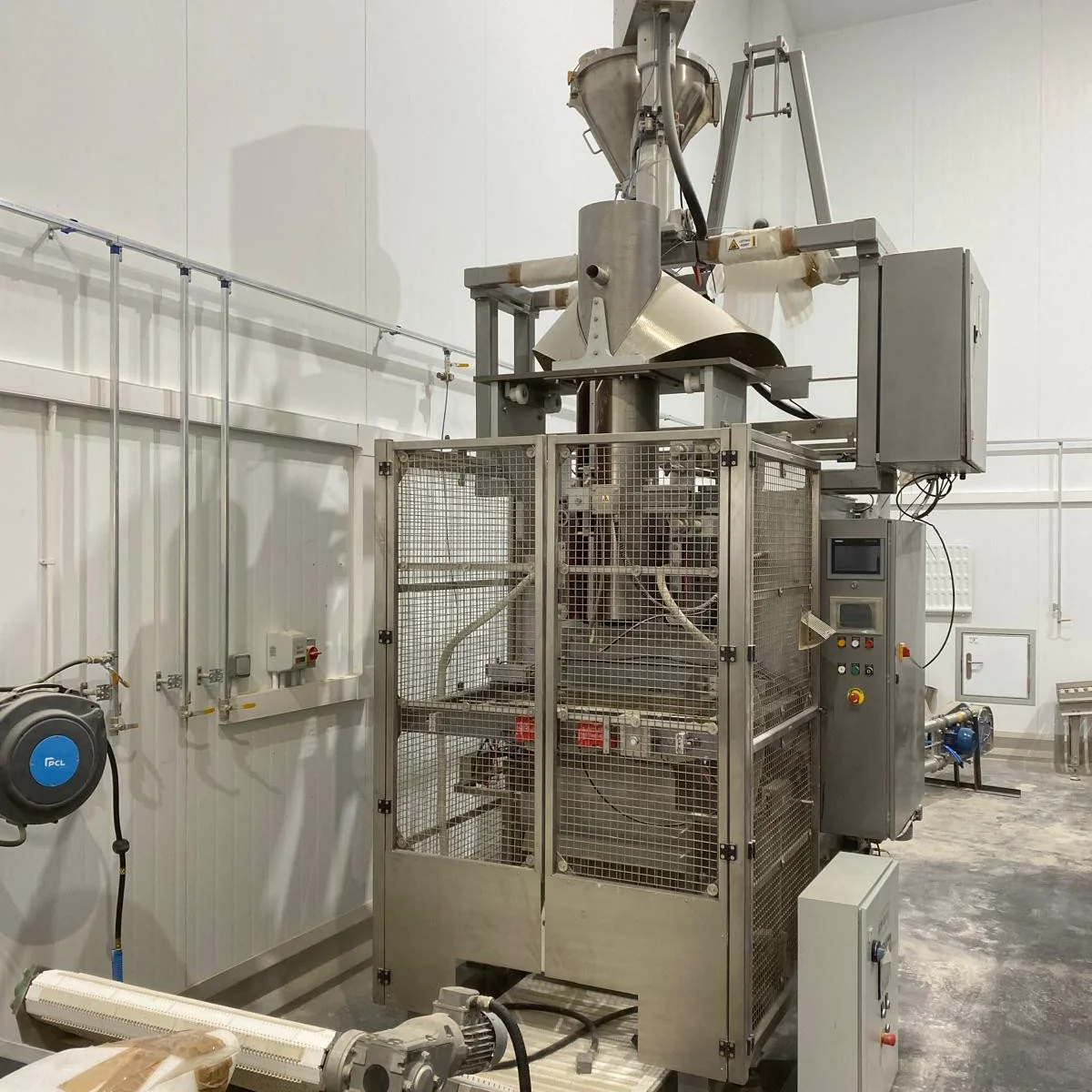

1 x Gainsborough Engineering Co. GV5 vertical form, fill and seal bagging machine (2018) fitted with Markem Imaje Smart-Date X60 thermal printer. Sealing bars - 620mm (horizontal) and 800mm (vertical).

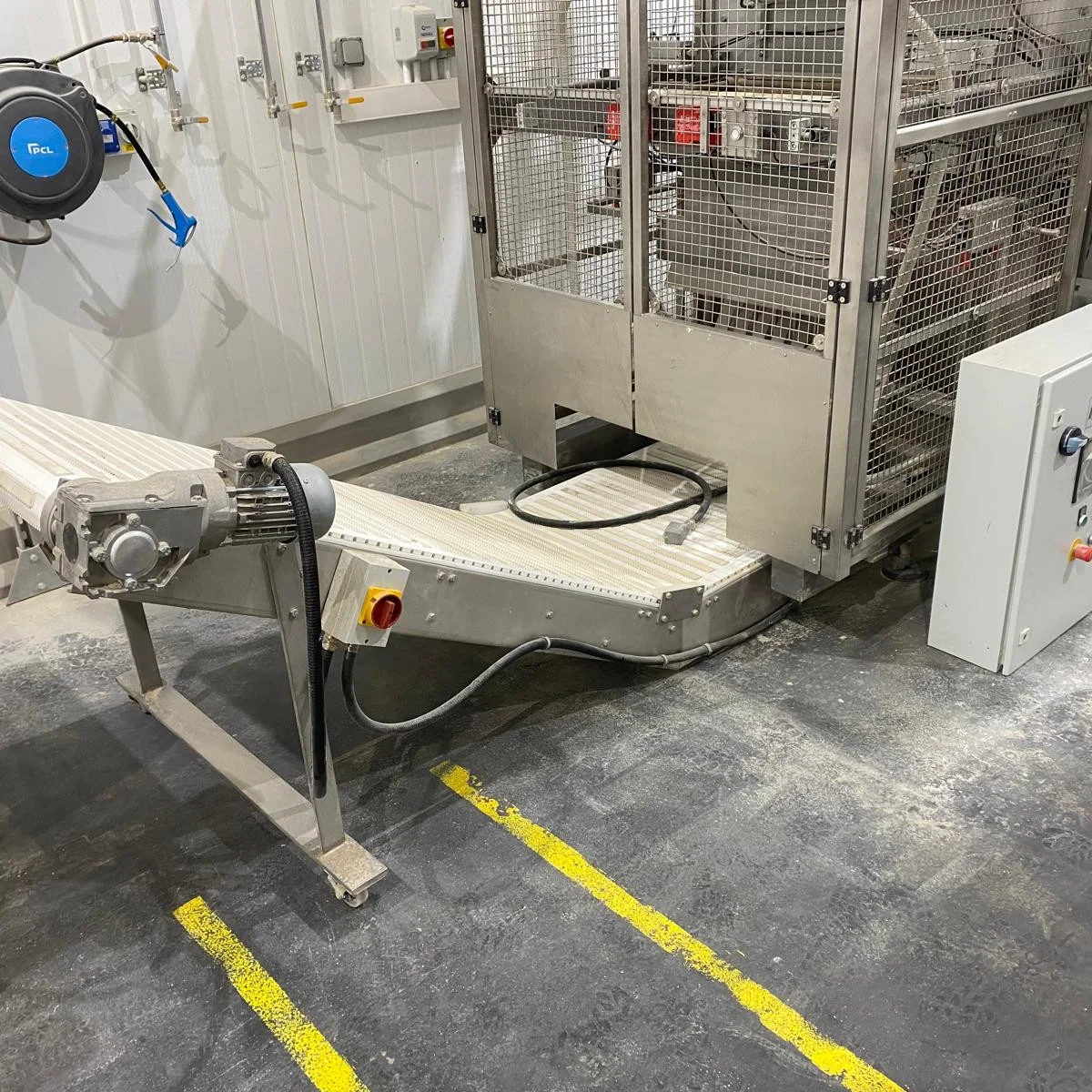

1 x Gainsborough Engineering Co. mobile outfeed conveyor. Infeed - 200mm. Outfeed - 1000mm.

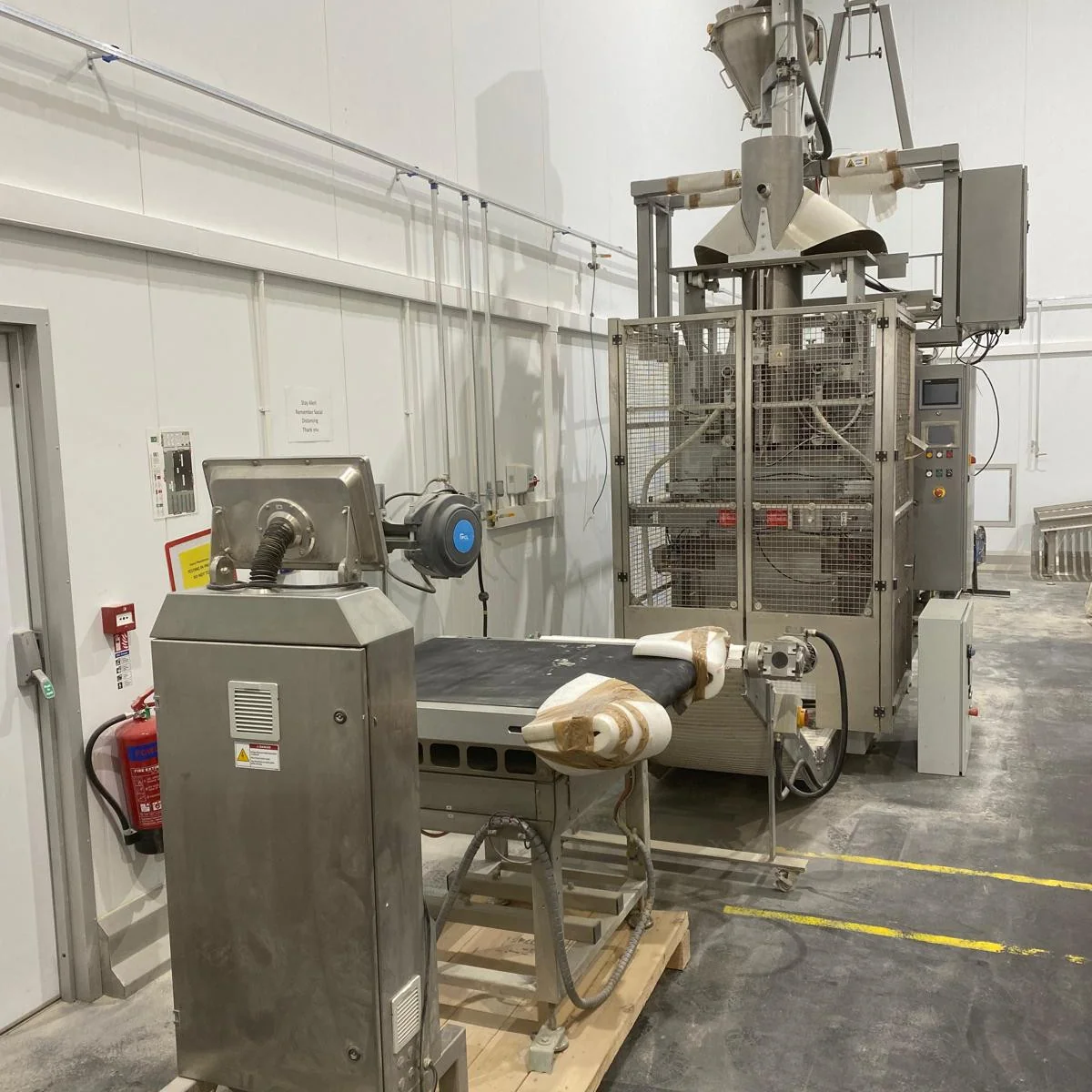

1 x OCS Checkweighers GmbH HC check weigher (2017) to weigh up to 60kg. Type - HC. Weigh table dimensions - 1000mm long x 790mm wide.
Footprint of full system (including space required to operate it safely) - 9m long x 4m wide x 6m high.

Technical data for Gainsborough GV5 VFFS bagger:

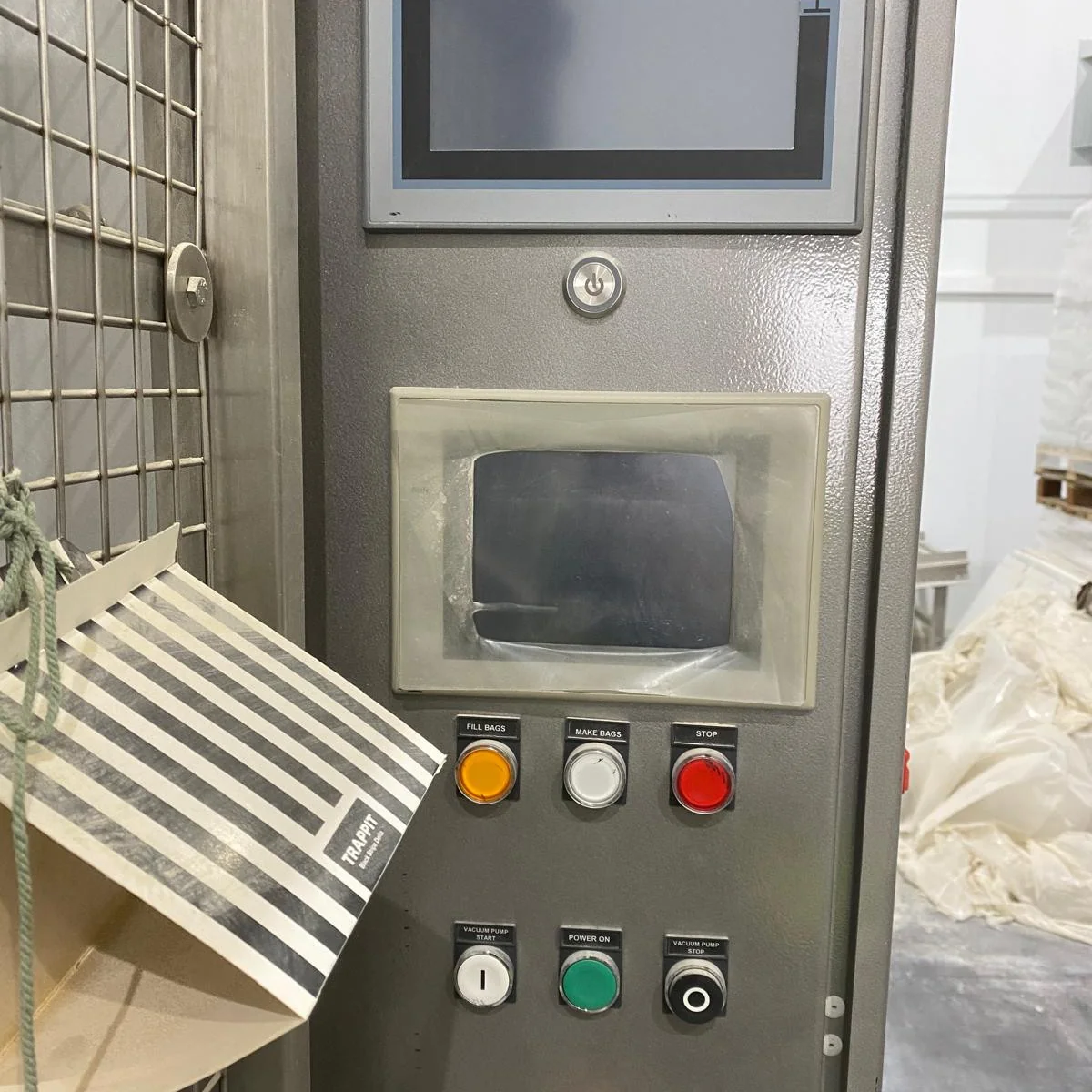

Controls - Siemens SIMATIC HMI touchscreen.
Packing speeds are subject to the suitability of packaging material, feeding systems, and the types of product to be packed.
Sealing bars - Horizontal: 620mm long. Vertical: 800mm long.
Packing Speeds - Up to 25 packs per minute.
Typical maximum bag weight - 25 kg.
Minimum pack size - 250mm wide x 200mm long.
Maximum pack size - 600mm wide x 800mm long.
Increased pack length - A double pull for the pack length is available, but is subject to suitable discharge arrangements.
Forming tube - 300mm diameter.
Air supply pressure - 80PSI / 5 bar.
Air consumption - 20 – 40 cubic feet per minute.
Machine dimensions: 1650mm wide x 2620mm deep/long x 2800mm high.
Weight: 1500kg.
Supplied with 5 x pallets of film.

BUYER TO REMOVE. Location - Yorkshire, UK. Stock code - MM5867.
