Vittoria VTR-60
Copied to clipboard!
Price: Contact seller for price

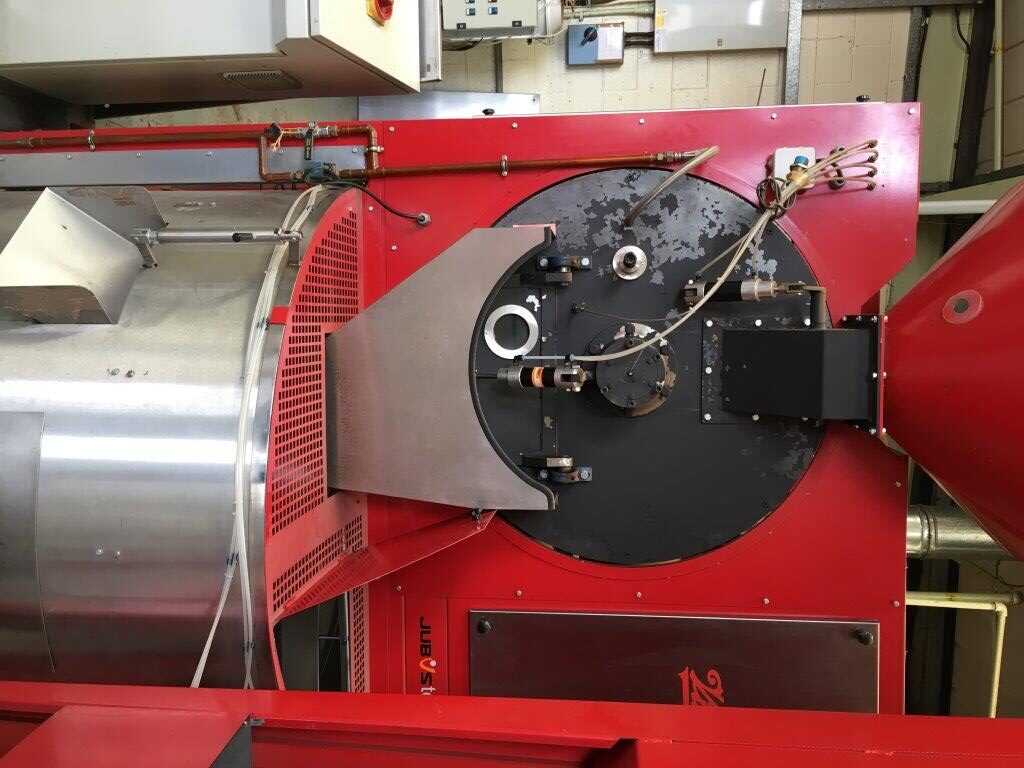

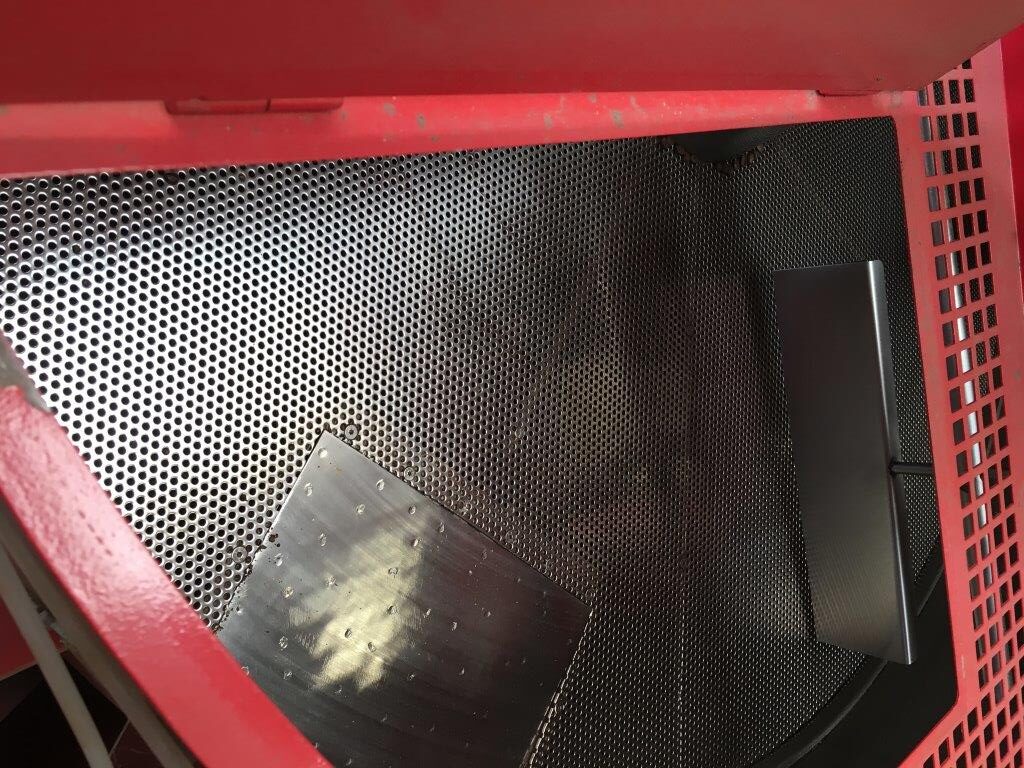

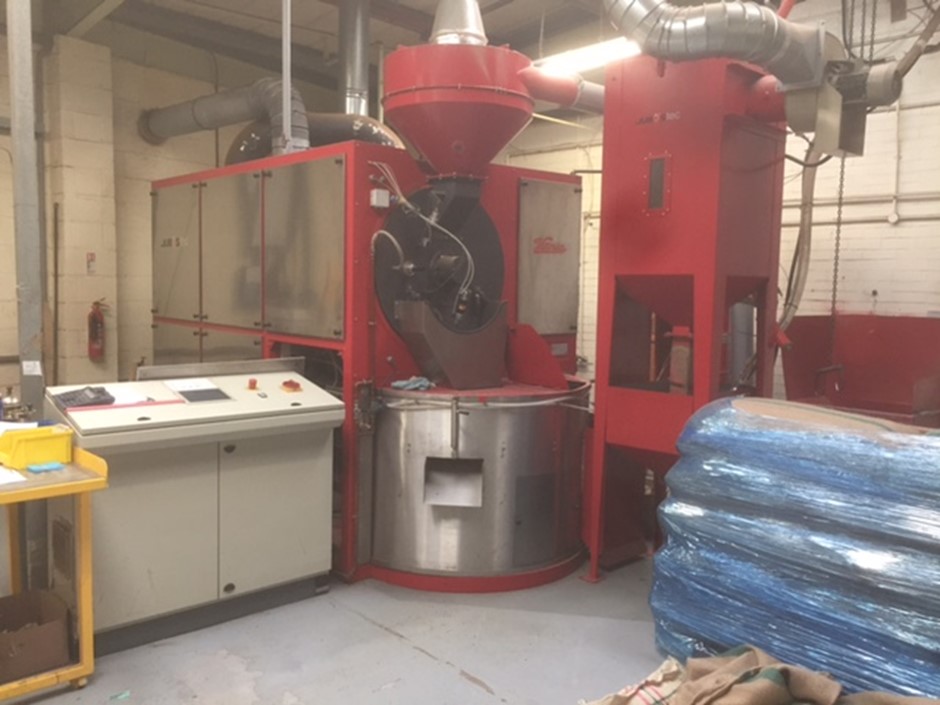

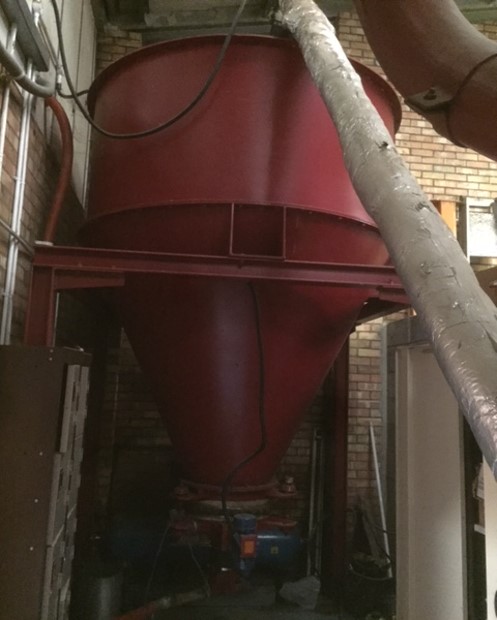

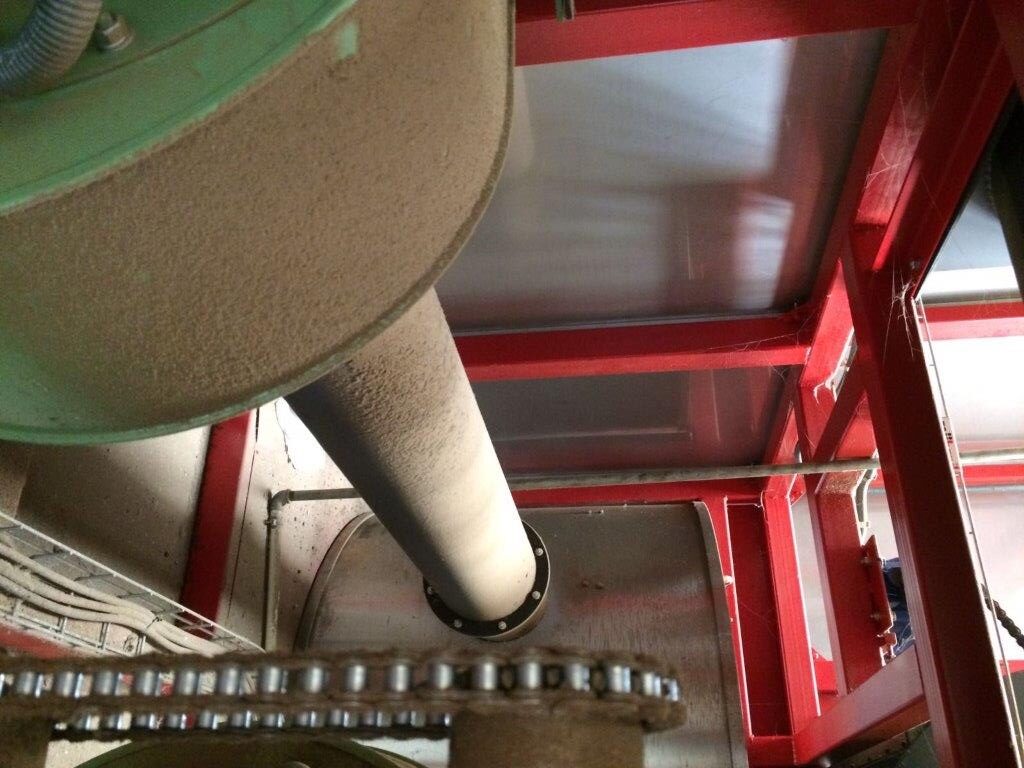

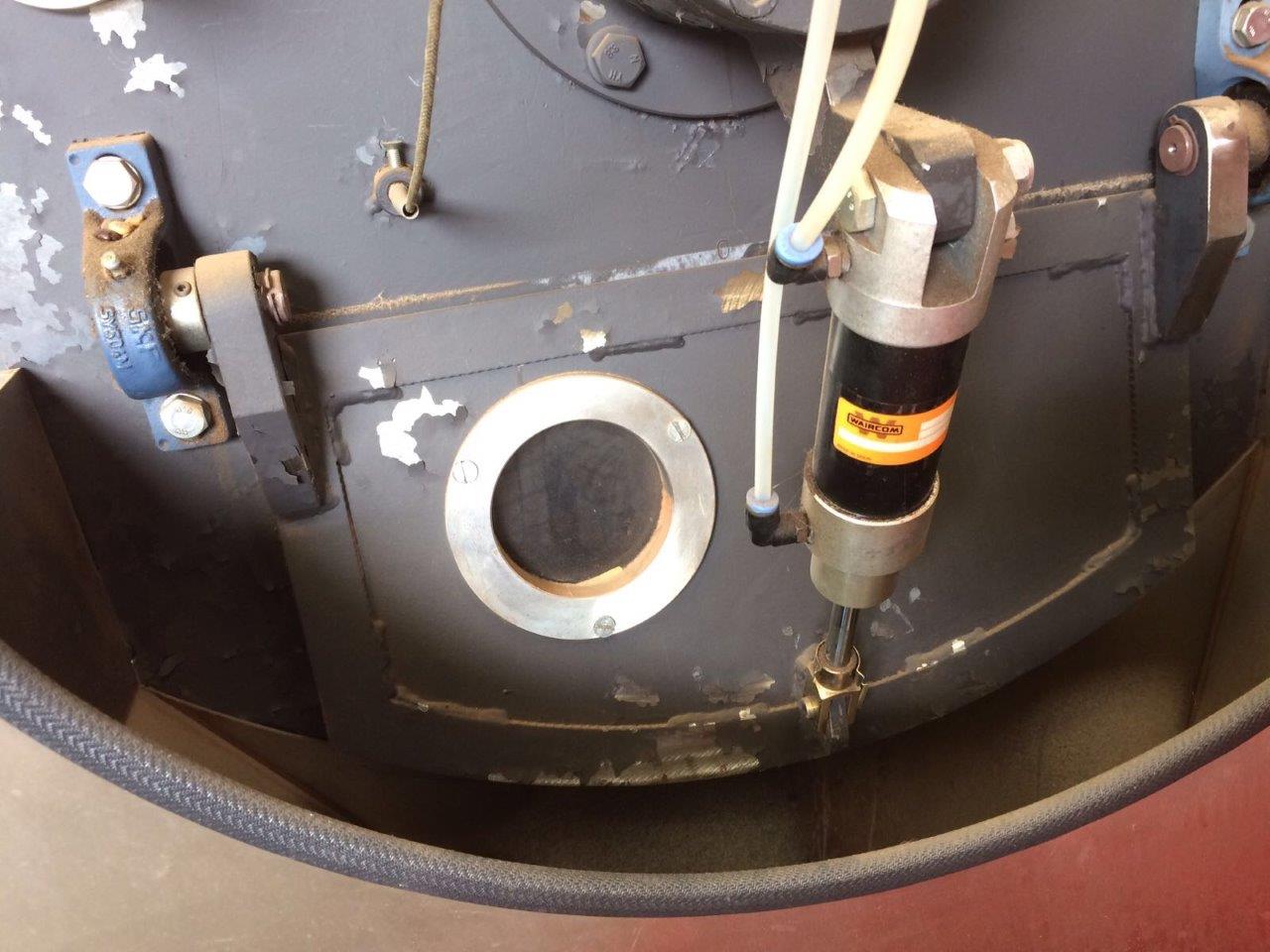

Vittoria VTR 60 Coffee Roasting Line for sale SOLD Year of Manufacture: 2007 The line comprises the following: Vittoria Jubustec VTR60 Roaster with cooling tray Green bean loader Cylone positioned inside the guard enclosure Destoner CFM Vacuum System for pneumatic transfer of coffee product. 4 x set of Silos with 300Kg capacity for roasted Whole beans 1 x 500Kg Silo for ground Coffee 2 x Vittoria MIM22 Grinders available Vittoria Control Panel Several bespoke green bean silos on wheels with approx 60-70Kg capacity The line was in full production until the end of May 2017. It was purchased new in 2007 and is in its original installation set-up. It has a perforated drum with Weishaupt W10 to W40 Gas Burner with Fire box positioned behind the roasting drum, producing a hot air roasting environment with indirect heat. The pneumatic vacuum system means that the flow of beans can be controlled via the Control panel. Green beans are dumped into the green bean loader which benefits from a sack gripper to assist with supporting the sack while being unloaded into the hopper. These are then sucked up into the roaster charge hopper ready for loading into the roaster drum. Once the roaster is brought up to the required temperature, the beans are released into the roasting drum to start the roast cycle. After the roast is completed, the beans are dumped from the drum into the coolling tray for cooling. At this point, once sufficiently cooled the beans can be automatically fed into the destoner for removal of any stones or debris still remaining in the coffee, or the beans can be dumped manually into a bin for manual handling. If the beans go through the destoner, they are then automatically conveyed into one of the 4 whole bean silos for storage. From here the roasted beans can be either drawn down for manual handling and packing, or they can be automatically transferred from either of the 4 silos to the MIM22 Coffee grinder and from there to the ground coffee silo for storage. T
Essex, United Kingdom5,756 km away
Model Number
vittoria-vtr-60
Stock Number
b60c5ab647a2
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
- Commercial coffee roasting operations requiring batch processing.
- Speciality coffee producers seeking consistent roast profiles.
- Food processing facilities with a need for high-volume coffee production.
- Businesses expanding into coffee roasting or upgrading existing lines.
